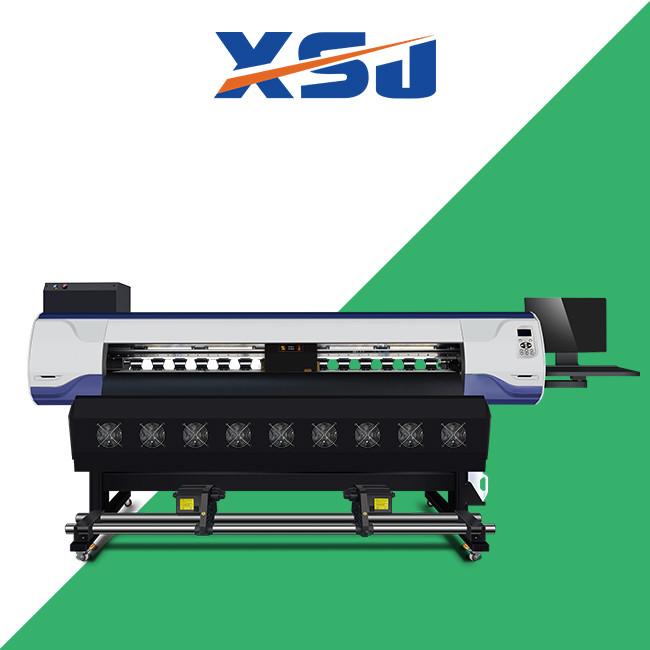

Stormjet Textile Printing Machine 4 Heads Eco Solvent Inkjet Printer

Place of Origin CHINA
Brand Name STORMJET
Certification CE
Model Number F1
Minimum Order Quantity 5 Set
Packaging Details EXPORT CRATE
Delivery Time 7-10DAYS
Payment Terms T/T
Supply Ability 20 SETS PER DAY
Product Details
Head Type F1440-A1/ I3200-A1/I3200-E1 Ink Type Water-based Ink Or Eco Solvent Ink
RIP Software Maintop, Photoprint, Onyx Package Export Crate
High Light

Stormjet Textile Printing Machine

,

4 Heads Eco Solvent Inkjet Printer

,

1800mm Eco Solvent Inkjet Printer

Leave a Message
Product Description

Advantages Of EPS3200 Head:
1. With 3200 nozzles(8*400), printing speed can reach 80Sqm/H with 2 heads, it’s with higher speed and higher

resolution than Dx5.
2. EPS3200 adopts TFP technology, smallest droplet is 2.5pl, variable dots technology, can ensure perfect high

resolution printing effect.
3. EPS3200 head is available for water-based ink, eco solvent ink, solvent ink, sublimation ink, UV ink, pigment

ink, it’s widely used in printing industry.
4. EPS3200 is much cheaper than Dx5. Head replacement cost will be cheaper.
5. We are the only supplier of this EPS3200 head's decode board in China, that means all factories must take

decode board from us.



New And Advanced Stormjet Textile Printing Machine Parameter
Stormjet inkjet printers china factory Inkjet printer garment plotter

Printhead
Type: Epson F1440-A1
Resolution: 1440DPI
Head Clean: Auto cleaning, flash and Moisturizing
Type: Epson I3200-E1
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing
Quantity
3 or 4


Print Speed
*Tested on linear printing without feather function
2pass
60㎡/h
2pass
118㎡/h
4pass
45㎡/h
3pass
80㎡/h
6pass
31㎡/h
4pass
60㎡/h
8pass



24㎡/h
6pass



42㎡/h
Print Width
1800mm

Ink Type
Type: Water-based ink(Dye or Pigment),
Eco Solvent Ink, Sublimation Ink
Color:CMYK
Type: Eco solvent ink, Water-based ink(Dye or Pigment), Sublimation Ink
Color:CMYK
Print Media
PP, PVC, Vinyl, Flex Banner, Backlit, Canvas, etc.
Indoor advertising material, Transfer Paper
Rip Software
Maintop6.0, Photoprint19, Onyx 19
Image Format
JPG, TIFF, BMP, PDF, etc.
Computer System
Win7,Win8,Win10
Transmit Port
USB 3.0/Network Port

Computer Cofigiration
Hard Disk: 500G or more, GPU: ATI Mobility
Radeon, Memory: 4G or above
CPU: Intel 4 I5 processor or above
Optional Device
Intelligent Dryer, Auto Feeding and Take-up System, Anti Collosion System
Working Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
Power Supply
50/60HZ, 220V, 10A
Package Machine Size
3130*940*1080m
Machine Weight
300kg





Stormjet Textile Printing Machine Feature

 *  Japan THK linear guide rail makes carriage movement smooth and lower noise.

 * Intelligent infrared heating & blowing external dryer accelebrates media drying speed, meanwhile heating and

printing can be synchronous to reduce the energy waste.

 *  Head maintenance can be done from printer directly without connecting computer.

 * Support calibration settings parameter export and import, more convinient on operation and service.



Stormjet Printing Machine Detail

Stormjet Textile Printing Machine 4 Heads Eco Solvent Inkjet Printer 0

1.Capping Station:

Patented designed maintenance capping station .It's lifted up and down via column driven by motor in the middle,

which greatly maintain the balance of capping comparing the traditional gear dive.

2.Ink Tank:

Reduces the tediousness of frequently checking the remianing amout of ink and at the same time reminds to

add ink in time.

3.Carriage:

Adjustable carriage frame,applicate for different thickness of media.Max printing height is 5mm.

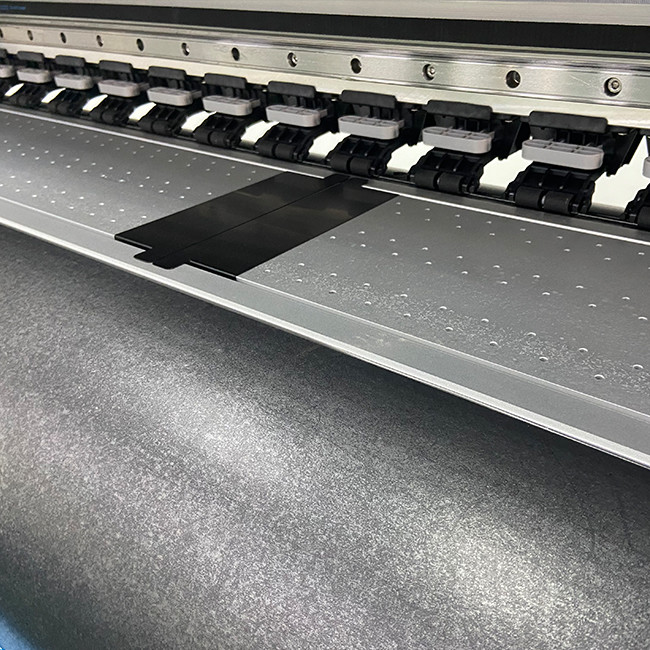

4.Pinch Roller:

Special designed pinch roller,each one can be lifted seperately to eliminate the wrinkle caused by media.

5.Drying System:

Three ways heating system , front ,middle,back individual,improve the printing quality.

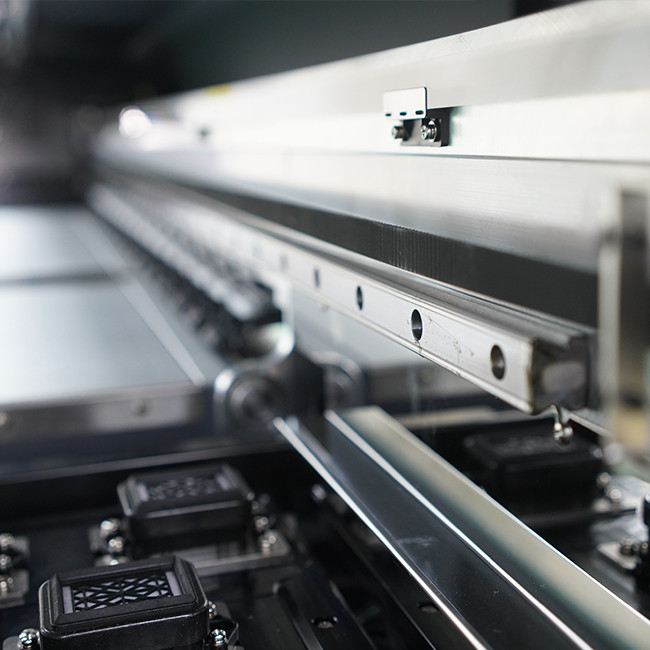

6.Guide Rail:

Adopt Japan THK mute linear guide rail,the movement is more stable and the life is longer.

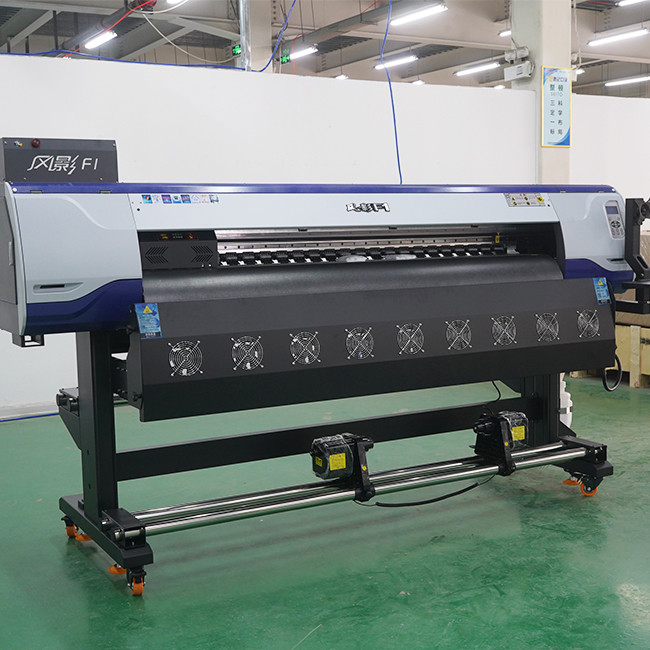

Stormjet F1-4 Printer Application



Stormjet Textile Printing Machine 4 Heads Eco Solvent Inkjet Printer 1
