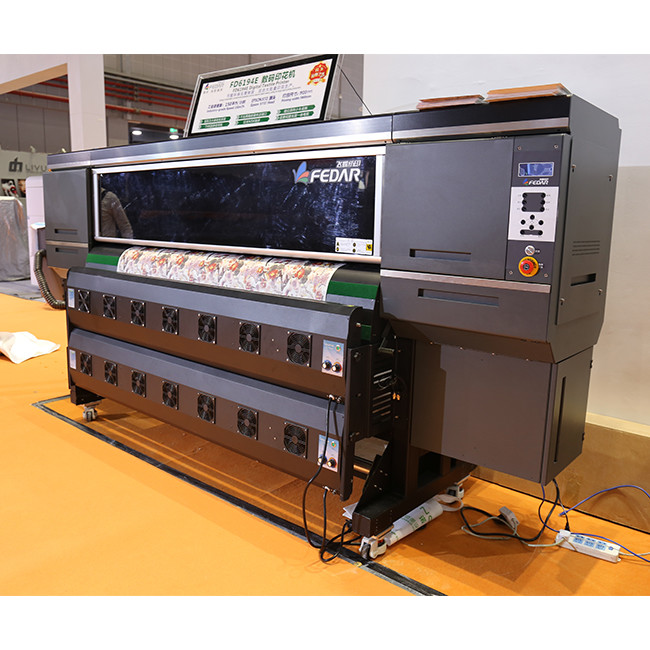

Textile Pigment Ink 150sqm/H 1.9m Sublimation Printer

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD-6194E
Minimum Order Quantity 1 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead EPS I3200-A1 Printhead Quantity 4 Pcs
Printing Speed 150 Sqm/h Print Width 1.9m
Ink Type Sublimation Ink, Pigment Ink RIP Software Maintop,Photoprint,Neostampa,Onyx,etc
Ink Color C M Y K Computer System Win7,Win8,Win10
Warranty 12 Months Transsmison Inferface Gigabit LAN
High Light

1.9m Sublimation Printer

,

Pigment Ink Sublimation Printer

,

150sqm/H Sublimation Printer

Leave a Message
Product Description

textile 1.9m sublimation printer transfer paper printing machine

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so on. It prints

on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic printing and dye sublimation

ink make the pattern colors bright, strong and fantastic.



Printhead Technology & Advantages

A.Printing width of EPS I3200-A1 head is 1.3 inch,about 30% wider than F1440-A1, 3200 nozzles(400*8lines),which has

much higher speed and resolution than F1440-A1.

B.EPS I3200-A1 printhead adopts TFP technology,with the smallest droplet 2.5PL,variable dots technology,can ensure perfect

and high resolution printing performance.

C.Low cost,each head is about 300-350USD,which helps client reduce investment cost to get more benefit!

D.Compared with Epson 5113 heads,the ink column makes hoses connection much easier and more simple,very convenient

maintenance.



Textile Pigment Ink 150sqm/H 1.9m Sublimation Printer 0





textile 1.9m sublimation printer transfer paper printing machine
Printhead
Epson I3200-A1
Nozzle Quantity
3200
Printhead Quantity
4
Print Width
1900mm
Ink Color
CMYK
Print Height
2-5mm
Resolution
360*1200/360*1800/
720*1200/720*1800(DPI)
Media Transfer
Auto Media Feeding and
Taking-up System, Roll to Roll


Speed
*Tested on linear printing without feather function
2pass
150㎡/h
Drying Method
Extra Dryer Device
4pass
110㎡/h
Ink Supply Method
Siphon Positive Pressure Ink Supply
6pass
90㎡/h
Head Moisture Method
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function

Print Media

Transfer Paper
Ink Type
Sublimation Ink,
Water based Pigment Ink
Transmission
Interface
Gigabit LAN
Computer System
Win7, Win8, Win10
File Forms
TIFF, JPG, EPS, PDF, etc.
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

3458*1150*1780mm

Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.7000W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard Configuration
Ink Level Alarm System



 Feature

*  optional rip Software

Using name brand high-end software optional

*  Ink  Alarm system

Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds to add ink in

time to ensure the continuity of printing work.

*  Intelligent Foggy Printing & VSDT Printing mode

Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable droplet techonology,improve printing

quality obviously.

*  Adopt Advanced Capping Station

Equipped with advanced intelligent printhead cleaning and moisturizing device, providing safe and convenient printhead

cleaning and maintenance functions, more convenient operation and maintenance.

*  Adopt Stable Media Feeding and Take-up System

More convenient, media is easy to stored,equipped with automatic paper measurement and anti-rubbing function,the

consumables are warped,printing is automatically paused to prevent scratching the printhead.

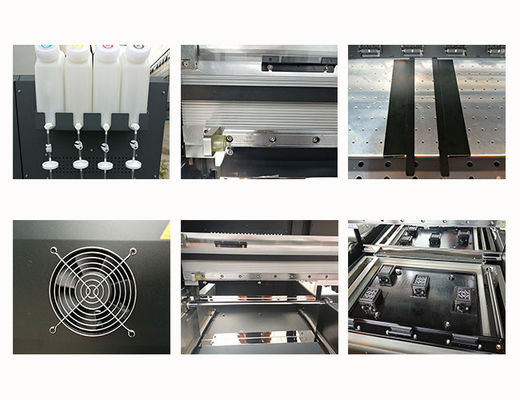

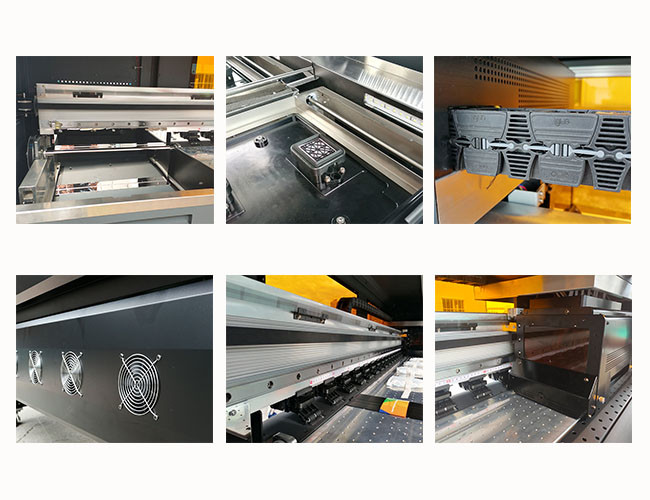

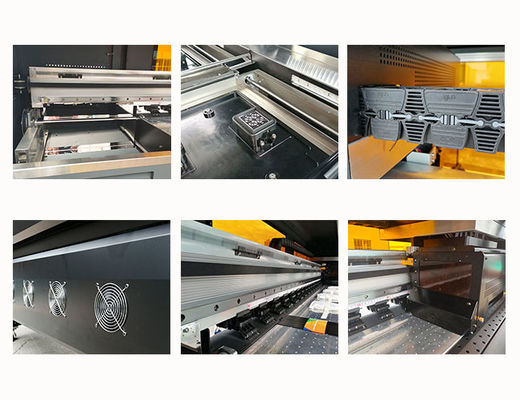

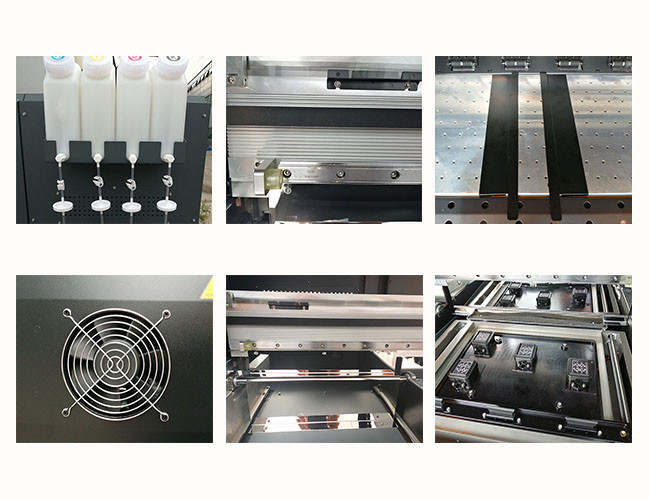

 Printer Detail



Textile Pigment Ink 150sqm/H 1.9m Sublimation Printer 1


1.Capping Station:

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well

and keep the ink flow flently.

2.Ink Tank:

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which guarantees

the long-term continuity of ink output.

3.Carriage:

 Adjustable height  up to 10mm,which ensure the stable and durable.

4.Pinch Roller:

US fluororubber pressure roller prevents static electricity from flying ink, prints more accurately and rejects wrinkles.

5.Ink Chain:

Imported Germany IGUS ink chain,high quality, to ensure the good completion of printing work.

6.Guide Rail:

Adopt Japanese THK  guide rail, the movement is more stable and the life is longer.




Wide  Application

Sublimation transfer is widely used on digital polyester printing, which is vivid on color, no need make plate,no waste

generated, no quantity request, even small quantity of order or customized order can be processed.


Textile Pigment Ink 150sqm/H 1.9m Sublimation Printer 2
                  Sportwear                                   Indoor Decoration                                   Bedding

Textile Pigment Ink 150sqm/H 1.9m Sublimation Printer 3
                    Bags                                    Underwear and swimwear                            Socks
