Sublimation Ink 1.9m Fedar Transfer Paper Printer
Head Type | Epson I3200-A1 | Head Quantity | 4 Pcs |
---|---|---|---|
Print Width | 1900mm | Ink | Sublimation Ink, Water Based Pigment Ink |
RIP Sofeware | Neostampa, Photoprint, Onyx | Application | Sportswear, Curtain, Etc |
Motor | Leadshine | Warranty | 12 Months |
High Light | Fedar Transfer Paper Printer,1.9m Transfer Paper Printer,16A Sublimation Transfer Paper Printer |

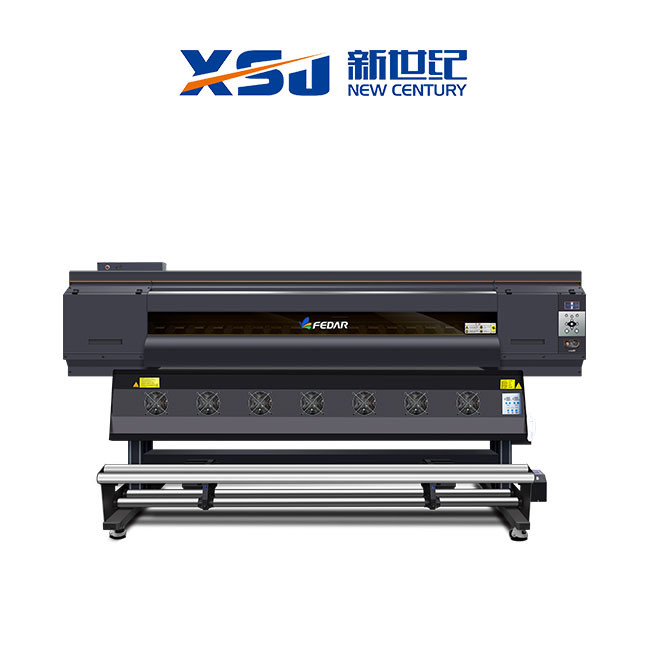

Fedar Transfer Paper Printing Machine With EpsonI3200-A1
FD5194E Fedar Sublimation Printer | ||||
Printhead | EpsonI3200-A1 | Nozzle Quantity | 3200 | |
Printhead Quantity | 4 | Print Width | 1900mm | |
Ink Color | CMYK | Print Height | 2-5mm | |
Resolution | 360*1200/360*1800/ 720*1200/720*1800(DPI) |
Media Transfer | Auto Media Feeding and Taking-up System, Roll to Roll |
|
Speed *Tested on linear printing without feather function |
2pass | 150㎡/h | Drying Method | Extra Dryer Device |
4pass | 110㎡/h | Ink Supply Method | Siphon Positive Pressure Ink Supply | |
6pass | 90㎡/h | Head Moisture Method |
Auto Head Cleaning and Moisturize | |
*speed is tested on full-size media without feather function |
Print Media | Transfer Paper | ||
Ink Type | Sublimation Ink, Water based Pigment Ink |
Transmission Interface |
Gigabit LAN | |
Computer System | Win7, Win8, Win10 | File Forms | TIFF, JPG, EPS, PDF, etc. | |
Operate Environment | Temp.:15℃-30℃, Humidity: 35℃-65℃ | RIP Software | NeoStanpa,Ergosoft, Onyx,Photoprint,Maintop |
|
Package Size | 3458*1150*1780mm | Power Supply | 210-230V, 50/60HZ, 16A Print Power: 1500W Dryer Power: Max.7000W |
|
Computer Configuration | Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU, CPU: Inte I5/I7, Gigabit LAN |
|||
Standard Configuration | Ink Level Alarm System |
FEATURE
- Adopt updated integrated capping station mudule.
- Equipped with constant tention taking-up systemwith imported motor,which ensures that media taking-up tension is constant and stable from beginning to end,excellent taking-up effect can be achieved.
- Introduce Gigabit data transmission port,which can meet the demand of high resolution huge file transmission and grarantees the stability.
- Dislocated carriage base plate is precision machined,which makes head position adjustment is more convenient.
- Name brand core parts with high quality,THK guide,NSD bearing,IGUS chain,LEADSHINE servo motro etc., which composes stable FEDAR priting system and guarantees excellent output.

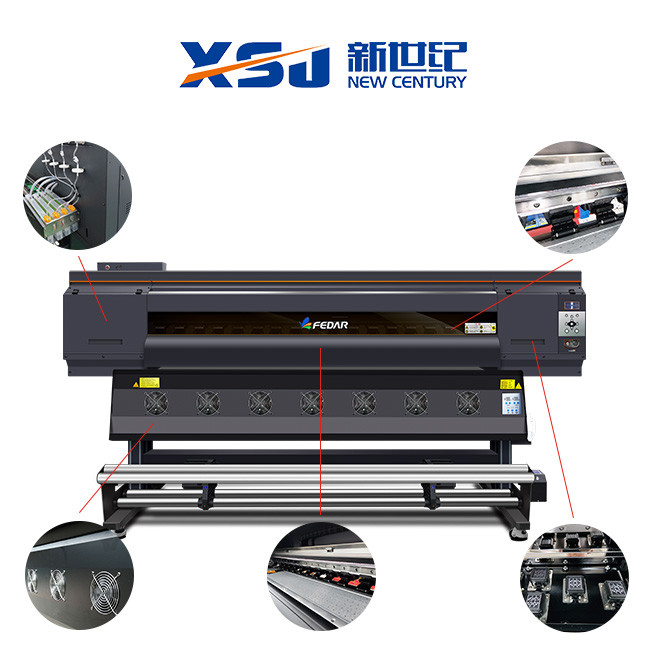

DETAIL
Maintenance Station:
The capping station is imported from overseas to ensure its reliability and permanence. It can protect and
clean head efficiently and conveniently. It can clean head, moisturize and pump ink Full automatically.
Carriage:
Printing heads height can be adjust 2~5mm adopting different materials thickness.
Pinch Roller:
Multi-row independent pinch rollers,which can be lifted seperately,ensure the media moving without wrinkle.
Platform:
Platform adopts 8mm aluminum alloy,which can guarantees long life and efficient printing.
Double Motor Materials Taking Up Roller:
Keep right and left have same pulling force can take up printing materials regularly.
Ink Tank:
Keep inks supply height the same during printing and let heads have constant inkjet pressure. Can keep
printers work more stable. 4pcs 1.5L huge, impendent ink tank and supply inks continuously.
APPLICATION
With help of heat transfer machine,printed images can be transferred to many different non-elastic material,
such as polyester and flag banner. No limit on the patterns makes it a good choice in decoration, garment and
advertising field.
SHOW EVENTS
Zhengzhou New Century team had won the reputation of TOP 20 exporters in Advertising Equipment
in China and obtained more than 55 patents for the design&3patents for innovation.And have
participated in many exhibitions at home and abroad.Such as the domestic Zhengzhou exhibition,
Shanghai exhibition,Guangzhou exhibition and so on.Participating abroad is Colombia,New Delhi,
Ukraine,Thailand,Italy etc.No matter you are individual or agent, welcome to joins us !
OUR SERVICE
-
One year warranty,lifetime maintenance beyond the warranty.
-
Teachnical training and guidance will be provided by ten technicians who can fly to various countries at any time .
-
More than 2 million yuan were invested on after-sales every year.
-
Providing remote after-sales service support by online teachnical guidance.
-
Two more QC is added on export machines to guarantee the quality.Strict controlling on leadtime.
