Stormjet BluePaper Water Pigment Ink Digital Printing Plotter

Place of Origin China
Brand Name Stormjet
Certification CE
Model Number F1
Packaging Details Standard Wooden Box
Supply Ability 200 sets per month
Product Details
Usage Blue Paper, Flex Banner Head Quantity 3
Head Type I3200-A1 Print Port Network Port
RIP Software Photprint Or Onyx Print Width 1900mm
Ink Type Water Based Pigment Ink Color CMYK
Warranty 1 Year Motor Leadshine
Computer Win7/Win8/Win10 Ink Tank 1 L
Driver Leadshine Ink Supply Secondary Ink Supply System
High Light

Pigment Ink Digital Printing Plotter


BluePaper Water Plotter


Stormjet Digital Printing Plotter

Leave a Message
Product Description

Stormjet Digital Printing Plotter For BluePaper Water Pigment Ink Printing


F1 Water Based Type Parameter


F1-3 Digital Printing Plotter
Printhead Type: Epson Dx5
Resolution: 1440DPI
Head Clean: Auto cleaning, flash and Moisturizing
Type: Epson 4720
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing
Quantity 3
Print Speed
*Tested on linear printing without feather function
2pass 60㎡/h 2pass 118㎡/h
4pass 45㎡/h 3pass 80㎡/h
6pass 31㎡/h 4pass 60㎡/h
8pass 24㎡/h 6pass 42㎡/h
Print Width 1850mm
Ink Type Type: Water-based ink(Dye or Pigment),
Eco Solvent Ink, Sublimation Ink
Type: Water-based ink(Dye or Pigment), Sublimation Ink
Print Media PP, PVC, Vinyl, Flex Banner, Backlit, Canvas, etc. Indoor advertising material, Transfer Paper
Rip Software Maintop6.0, Photoprint19, Onyx 19
Image Format JPG, TIFF, BMP, PDF, etc.
Computer System Win7,Win8,Win10
Transmit Port USB 3.0/Network Port
Computer Cofigiration Hard Disk: 500G or more, GPU: ATI Mobility
Radeon, Memory: 4G or above
CPU: Intel 4 I5 processor or above
Optional Device Intelligent Dryer, Auto Feeding and Take-up System, Anti Collosion System
Working Environment Temp.:15℃-30℃, Humidity: 35℃-65℃
Power Supply 50/60HZ, 220V, 10A
Package Machine Size 3130*940*1080m
Machine Weight 300kg


Original I3200-A1 is new printhead for water based type ink solution market, it will replace the old 5113 head in waster based type.


3200 nozzles


Support big, middel and small dot print, resolution is highest!


Speed is double times than dx5 and will replace it in future.


This printhead can match photoprint very well and show perfect print quality.


Stormjet BluePaper Water Pigment Ink Digital Printing Plotter 0


Stormjet BluePaper Water Pigment Ink Digital Printing Plotter 1




1. I3200-A1 (optional) piezoelectric print head offer the high speed, stable printing solution.

2. Intelligent Variable ink droplet, control the ink drop spray according to the picture requirement. Offering the more highly precisely solution and more accuracy of ink drop location.

3. Environmental protection and corrosion, suitable for weak solvent ink, eco solvent ink, Water-based ink, sublimation ink, be widely used for indoor and out door printing.

4. Big and stable media press block can fix material well during printing.


5. Smart pinch roller, customer can control each one at any time, which can avoid paper wrinkle problem.


6. Adopt best quality Leadshine servo motor and driver, provide print quality and resolution.


7. Unique capping station desgin, easier to operate and do maintenance, also add handle control function to adjust if local market power off suddenly.


Stormjet BluePaper Water Pigment Ink Digital Printing Plotter 2


8. Add mirror in this machine, which can let customer check printhead surface status at any time.

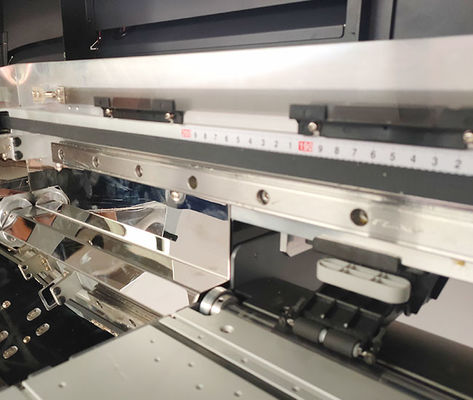

9. High-end level have ruler on the beam, it is better to reset the original print point.


Stormjet BluePaper Water Pigment Ink Digital Printing Plotter 3


Application for this F1 water based pigment ink printer


Blue paper, PP, Back-lit, Canvas, all indoor materials.


Stormjet BluePaper Water Pigment Ink Digital Printing Plotter 4


FAQ for F1


Which level for this F1?

It is Stomjet high-end level, with 3 or 4 heads I3200 A1, industrial print speed with in lower cost.


Why this model price is higher?

All spare parts quality and design we use best, every customer receive it, all said it is perfect machine.


How about the service?

24 hours online service or send engineer to your company training.
