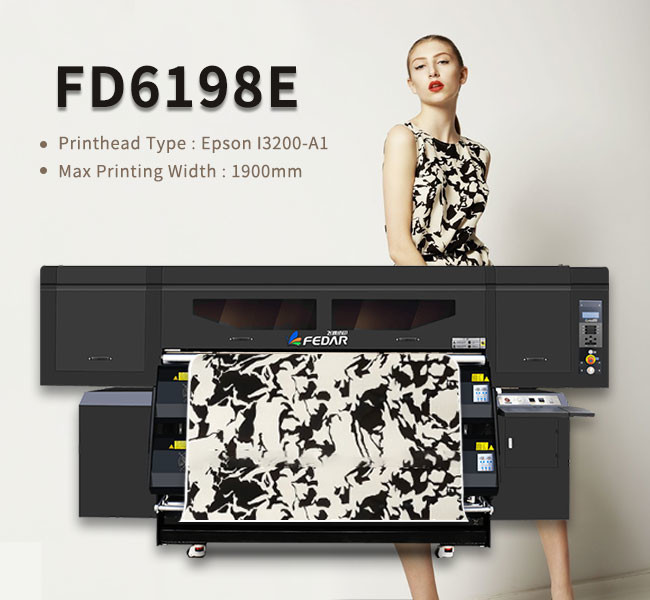

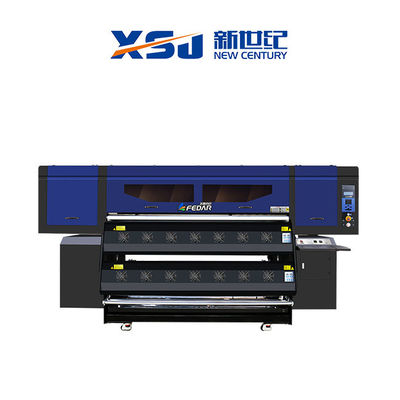

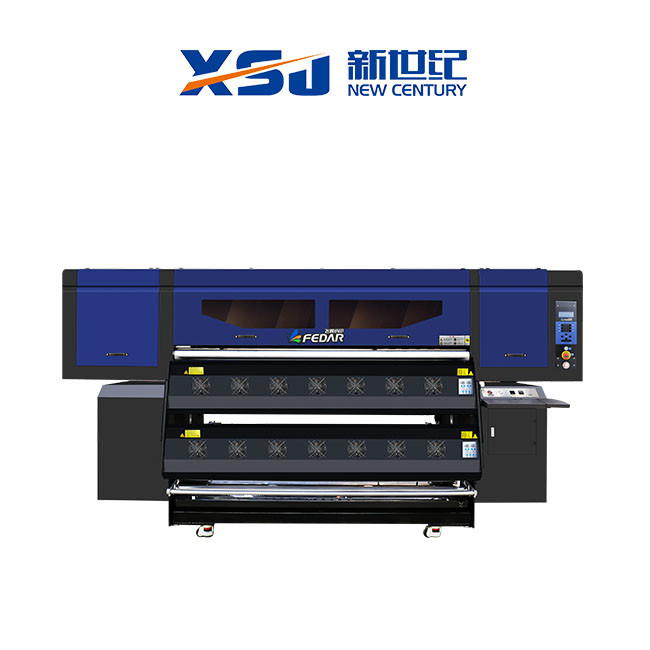

Fedar FD6196 FD6198 Digital Printing Plotter With 8 Heads

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD6198E
Minimum Order Quantity 1 Set
Price USD13000-15000/SET
Packaging Details Standard Wooden Box
Delivery Time 10-15 DAYS
Payment Terms T/T, D/P, D/A, L/C
Supply Ability 100 sets per months
Product Details
Head I3200-A1 Head Quantity 8
RIP Software Maintop Photoprint19,ONYX19 Print Port Ethernet WLAN Port
Loading System 2000m Ink CMYK
Ink Type Sublimation Ink, Water Based Pigment Ink Print Width 1.9m
Warranty 12 Months
High Light

FD6198 Digital Printing Plotter


FD6196 Digital Printing Plotter


Fedar 8 heads Digital Plotter

Leave a Message
Product Description

Transfer Printing Plotter Machine For Transfer Paper Printing

Fedar FD6196 FD6198 Digital Printing Plotter
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 8 Print Width 1900mm
Ink Color CMYK Print Height 2-5mm
Resolution 360*1200/360*1800/
Media Transfer Auto Media Feeding and
Taking-up System, Roll to Roll
*Tested on linear printing without feather function
2pass 300㎡/h Drying Method Extra Dryer Device
4pass 200㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
6pass 150㎡/h Head Moisture
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function
Print Media Transfer Paper
Ink Type Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System Win7, Win8, Win10 File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃, Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Package Size 3900*1340*1920mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.9000W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard Configuration Ink Level Alarm System



Fedar FD6196 FD6198 Digital Printing Plotter With 8 Heads 0



Fedar FD6196 FD6198 Digital Printing Plotter With 8 Heads 1


  • Media take-up system : Industrial taking-up media and feeding media motor.
  • Aluminum beam : Stronger aluminum beam and ensure print resolution.
  • Maintenance : Patented designed capping maintenance unit, capping lift is nore scientific.
  • Nozzle quantity : Each printhead has 3200 nozzles ,which makes the printing speed faster.



Fedar FD6196 FD6198 Digital Printing Plotter With 8 Heads 2

             Bag                                     Home Textiles                           Canvas Shoes


Fedar FD6196 FD6198 Digital Printing Plotter With 8 Heads 3


                 Bed Linings                                 Swimsuit                                   Sportswear




Zhengzhou New Century team had won the reputation of TOP 20 exporters in Advertising Equipment

in China and obtained more than 55 patents for the design&3patents for innovation.And have

participated in many exhibitions at home and abroad.Such as the domestic Zhengzhou exhibition,

Shanghai exhibition,Guangzhou exhibition and so on.Participating abroad is Colombia,New Delhi,

Ukraine,Thailand,Italy etc.No matter you are individual or agent, welcome to joins us !


Fedar FD6196 FD6198 Digital Printing Plotter With 8 Heads 4



  • One year warranty,lifetime maintenance beyond the warranty.

  • Teachnical training and guidance will be provided by ten technicians who can fly to various countries at any time .

  • More than 2 million yuan were invested on after-sales every year.

  • Providing remote after-sales service support by online teachnical guidance.

  • Two more QC is added on export machines to guarantee the quality.Strict controlling on leadtime.
