Cmyk Transfer Paper Fedar Sublimation Ink Printer 320sqm/H

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD6198E
Minimum Order Quantity 5 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Type Epson I3200-A1 Quantity 8 Pcs
Ink Color CMYK Ink Type Dye Sublimation Ink,Pigment Ink
Computer System Win7,Win10 RIP Software Maintop, Photoprint,Neostampa,Onyx,etc.
Warranty 1 Year
High Light

Fedar Sublimation Ink Printer


CMYK Transfer Paper Sublimation Ink Printer


320sqm/H Sublimation Ink Printer

Leave a Message
Product Description

FD6194E Cloth Printing Machine Transfer Paper Fedar Sublimation Printing Machine

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so on. It prints

on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic printing and dye sublimation

ink make the pattern colors bright, strong and fantastic.


FD6194E Transfer Paper Fedar Sublimation Printer Parameter


industrial sublimation fabric printing machine
Printer Model
Nozzle Quantity
800*4lines*8 pcs of Epson printheads
Height to Platform
Printing Speed
Production Mode
2pass/360*1200dpi 320sqm/h
Average Mode
4pass/720*1200dpi 260sqm/h
High Resolution Mode
6pass/720*1800dpi 180sqm/h
Dye Sublimation
supply method
Max Printing Width
Printing Media
Transfer Paper
Media Transfer Method
Auto air shaft feeding and take-up system
Drying Method
External Intelligent Heating Blowing drying system
Moisture Mode
Fully sealed auto moisturing and cleaning
RIP Software
Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc.
Image Format
JPG,TIF,PDF,BMP and etc.
WIN7 64bit/WIN10 64bit
Hard disk:500G (system disk more than 100G)
GPU:ATI Discrete
Memory:4G or more
CPU:Intel i5/i7 processor
Transmit Port
Gigabit LAN
Work Environment
Temperature 20-35 centi degree; Humidity 35-65%
Input Voltage
210-230VAC 50/60HZ 16A
Printing system
Drying system
Max power 9000W
Printer Dimension
Packing Dimension
Net Weight
Gross Weight



FD6194E Cloth Printing Machine Fedar Sublimation Printing Machine Feature

1. Anti collision trolley: the height of the nozzle can be adjusted freely according to different printing consumables,

which is widely used and easy to adjust; Add anti-collision device at both ends to provide more comprehensive safety

protection for the nozzle.

2. Air expansion shaft type rewinding and unwinding system: during operation, it does not need to fix the printing medium

with the help of other accessories, and uses the air pressure to adjust automatically. Make the force uniform, make the

paper more smooth. The system has the characteristics of large load, long service life, uniform force on paper placing

and receiving, and short operation time of inflation and deflation.

3. Advanced intelligent nozzle cleaning and moisturizing device provides safe and convenient nozzle cleaning and

maintenance function, which makes operation and maintenance more convenient.

4. The fluororubber paper roller imported from the United States can prevent static electricity and prevent ink from flying, and the printing size is more accurate; The unique lifting device of the paper roller can deal with the local paper bulging phenomenon in the printing process at any time.

5. Japan THK silent linear guide, smooth movement, longer life, high-speed movement can effectively reduce the resistance of the ink car running, noise.


FEDAR Transfer Paper Printing Machine Detail

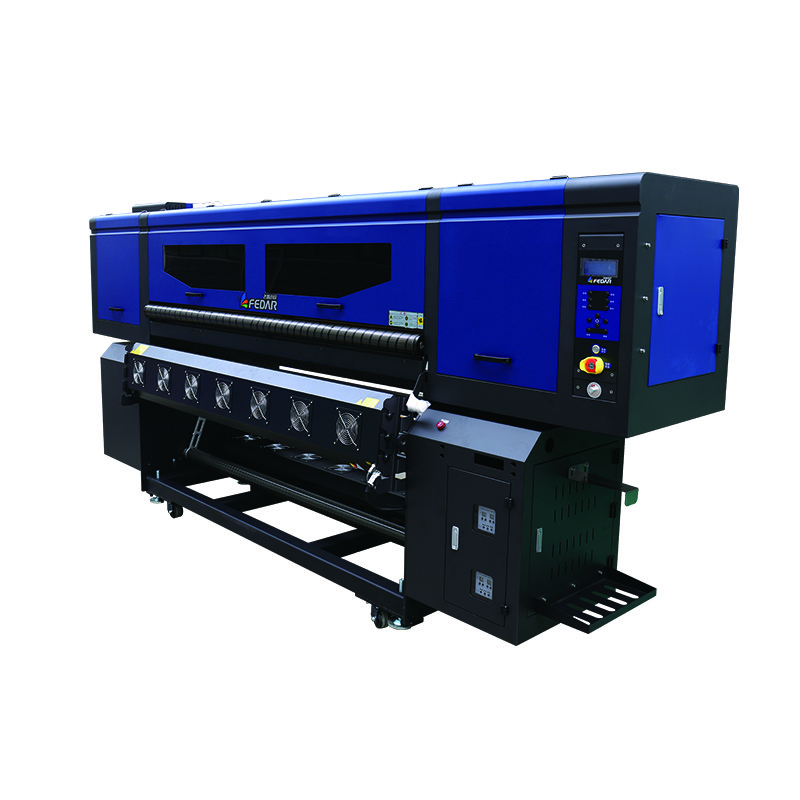

Cmyk Transfer Paper Fedar Sublimation Ink Printer 320sqm/H 0



Dye Sublimation Printing For Businesses: What Product Can You Print On?

Rigid Substrates – Polymer treated objects that include non-fabric items like glass, plastic, fiberglass, and aluminum.

These are products that aren’t bendable like fabrics.

Blank Rigid Products – Many of these materials are available to buy in bulk at wholesale prices, like custom mouse pads,cell phone cases, and drinkware. They are sometimes referred to as “blanks”, which are products without any designs or printing included so that personalization can be added.

Signage – Perfect for “click to print” e-commerce businesses. Easily print on vinyl to create retractable banners and

other trade show displays. When seeing signs hanging in front of shops or buildings, there’s a good chance that sublimation was used.

Polyester Fabrics – One of the most popular items to dye sublimate. They are divided into two types:

(1)Knit: Polyester products that hang & flow in their natural environment, like apparel, flags, banners, and custom printed

table covers.

(2)Woven: More durable products such as custom tote bags fabric backdrops, and custom tents.

Home Decor – The dye-sub process is often used by businesses that sell to interior designers. Decor items like ceramic floor tiles are a popular choice for bathrooms, kitchens, restaurants, & more.

Photograph Printing – Arguably the best way to produce the highest-quality photographic images on canvas, magnets, and apparel.

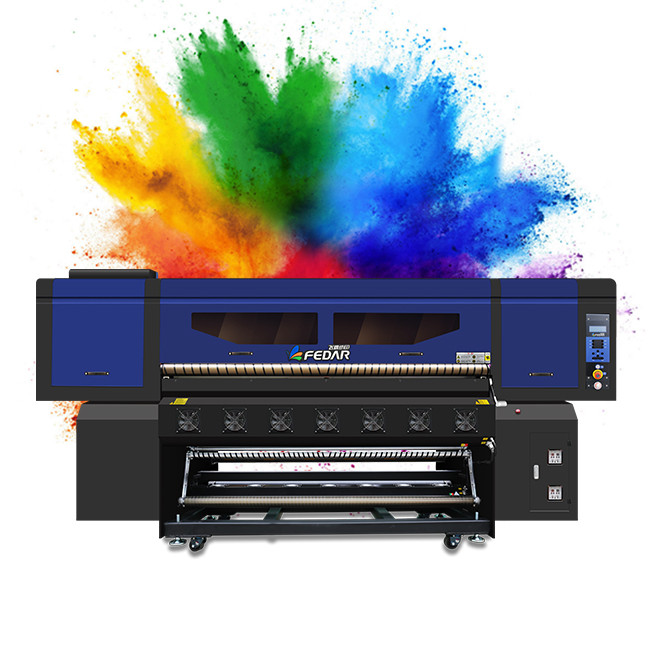

Cmyk Transfer Paper Fedar Sublimation Ink Printer 320sqm/H 1

Cloth Printing Machine Application

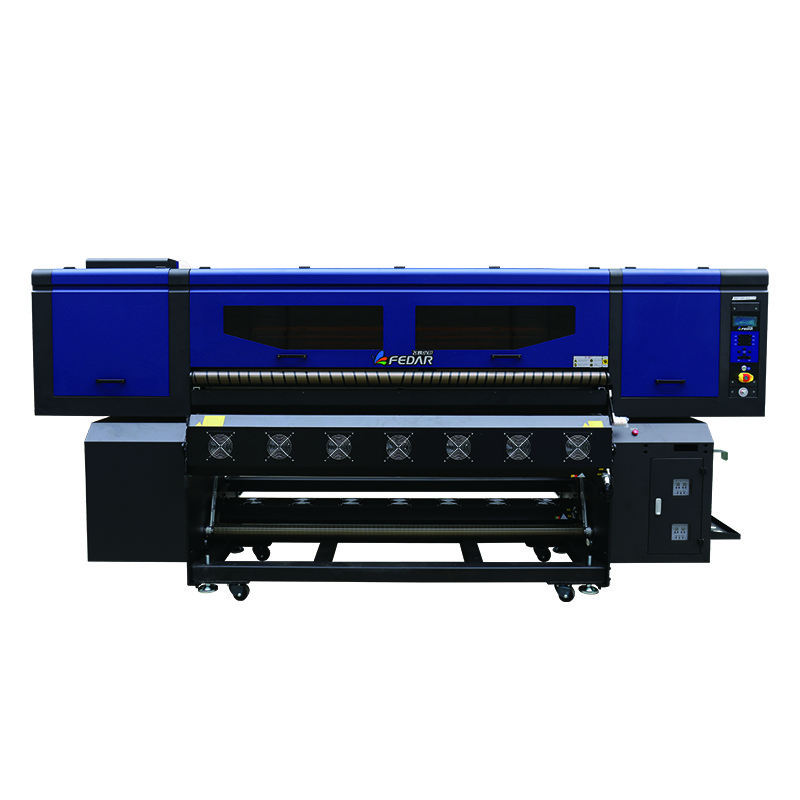

Cmyk Transfer Paper Fedar Sublimation Ink Printer 320sqm/H 2
