3 Printheads AL193 Transfer Paper Printing Machine 1.9m

Place of Origin China
Brand Name Fedar
Certification CE
Model Number AL193
Packaging Details Standard Wooden Crate
Supply Ability 200 sets per months
Product Details
Usage All Transfer Paper Ink Dye Sublimation Ink
Application Area Polyester Head EPS I3200-A1
Head Quantity 3 Print Width 1.9m
RIP Software Neostampa, Photoprint, Maintop Computer Win7/win8/win10
High Light

3 Printheads Transfer Paper Printer


AL193 Transfer Paper Printing Machine


Transfer Paper Printing Machine 1.9m

Leave a Message
Product Description

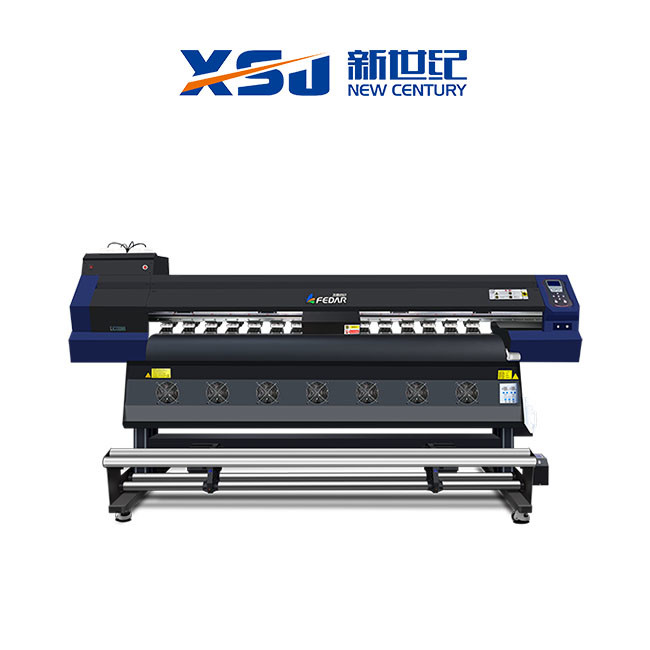

              Fedar Transfer Paper Printing Machine With 3 Printheads


Fedar AL193 Transfer Paper Printing Machine
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 3 Print Width 1900mm
Ink Color CMYK Print Height 2-5mm
Resolution 360*1200/360*1800/
Media Transfer Auto Tension Taking-Up Meida Device
*Tested on linear printing without feather function
2pass 120/h Drying Method Extra Dryer Device
3pass 85/h Ink Supply Method Siphon Positive Pressure Ink Supply
4pass 65/h Head Moisture
Auto Head Cleaning and Moisturize
6pass 45/h Print Media Transfer Paper
Ink Type Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System Win7, Win8, Win10(Professional) File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃, Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Package Size 3250*960*1170mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Inte I5/I7, G-Ethernet
Standard Configuration Ink Level Alarm System



  • Adopt secondary ink supply system,continuous pringting for a long time and ensuring the quality of image output.
  • Using international high-end software,which make output of the picture is more realistic.
  • The double-power take-up unit which make pringting convenient and fast,and the printing media can be stored quickly.
  • Giga-bit Ethernet data transmission port,which is more stable on printing output.
  • Auto taking-up device with tension sensor bar,auto-mediasensor and head protection unit.

3 Printheads AL193 Transfer Paper Printing Machine 1.9m 0



3 Printheads AL193 Transfer Paper Printing Machine 1.9m 1

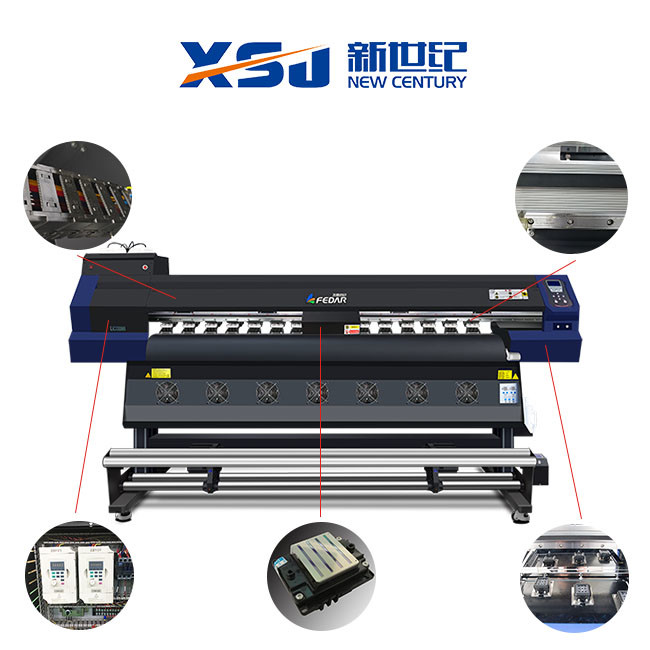

Maintenance Station:                                               Platform:

Head maintenance and clean can be done from      Adopt finish machining aluminum platform and

printer directly without connecting computer.            beam to increase life.


3 Printheads AL193 Transfer Paper Printing Machine 1.9m 2


Guide Rail:                                                                  Ink Chain:

Imported Japan THK linear guide rail makes           Imported Germany IGUS ink chain with low noise.

carriage movement more smooth and longer life.


3 Printheads AL193 Transfer Paper Printing Machine 1.9m 3


Carriage:                                                                     Pinch Roller:

The height of the carriage can be adjusted,            The specially designed pinch roller can be lifted

maximum height is 5 mm.                                         separately.





3 Printheads AL193 Transfer Paper Printing Machine 1.9m 4

                      Hat                                            Home textiles                            Interior renovation

3 Printheads AL193 Transfer Paper Printing Machine 1.9m 5

                 Bed linings                                     Sportswear                                      Swimsuit




Pre-sale service


1. 7day*24hours Hot-line & Email service for inquiry.
2. Confirm the price, lead time, artwork, payment term etc.
3. Sales send the Proforma Invoice for you to confirm.
4. Customer make the payment for deposit and send us Bank Receipt.


In-sale service


1. Material and accessories carefully check upon arrival.
2. Make the sample according to customer require, send photos or samples to get customer approval.
3. After approval, we'll timely update you the production and delivery time.
4. Send photos to show the production status.
5. Confirm the exact delivery time again.
6. Clients make payment for balance then freedom ship the goods.
7. Inform the tracking number and check the status for you.


After-sale service


1. Solve any problem you may have and help you improve the relationship with your customers.
2. Timely update price change and new products' message.
