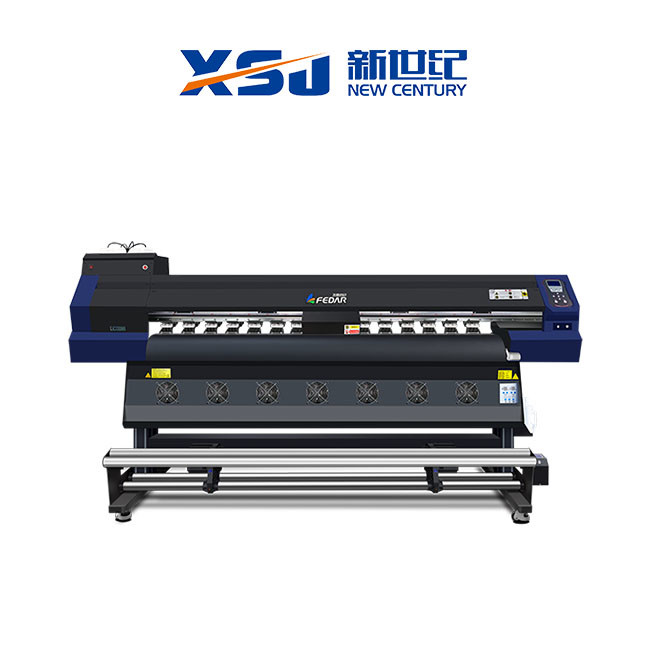

3 Printheads AL193 Transfer Paper Printing Machine

Place of Origin China
Brand Name Fedar
Certification CE
Model Number AL193
Packaging Details Standard Wooden Crate
Supply Ability 200 sets per months
Product Details
Usage All Transfer Paper Ink Dye Sublimation Ink
Application Area Polyester Head EPS I3200-A1
Head Quantity 3 Print Width 1.9m
RIP Software Neostampa, Photoprint, Maintop Computer Win7/win8/win10
High Light

AL193 Transfer Paper Printing Machine


1.9m Width Paper Printing Machine


CMYK Ink Paper Printing Machine

Leave a Message
Product Description

              Fedar Transfer Paper Printing Machine With 3 Printheads

Fedar AL193 Transfer Paper Printing Machine
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 3 Print Width 1900mm
Ink Color CMYK Print Height 2-5mm
Resolution 360*1200/360*1800/
Media Transfer Auto Tension Taking-Up Meida Device
*Tested on linear printing without feather function
2pass 120/h Drying Method Extra Dryer Device
3pass 85/h Ink Supply Method Siphon Positive Pressure Ink Supply
4pass 65/h Head Moisture
Auto Head Cleaning and Moisturize
6pass 45/h Print Media Transfer Paper
Ink Type Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System Win7, Win8, Win10(Professional) File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃, Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Package Size 3250*960*1170mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Inte I5/I7, G-Ethernet
Standard Configuration Ink Level Alarm System

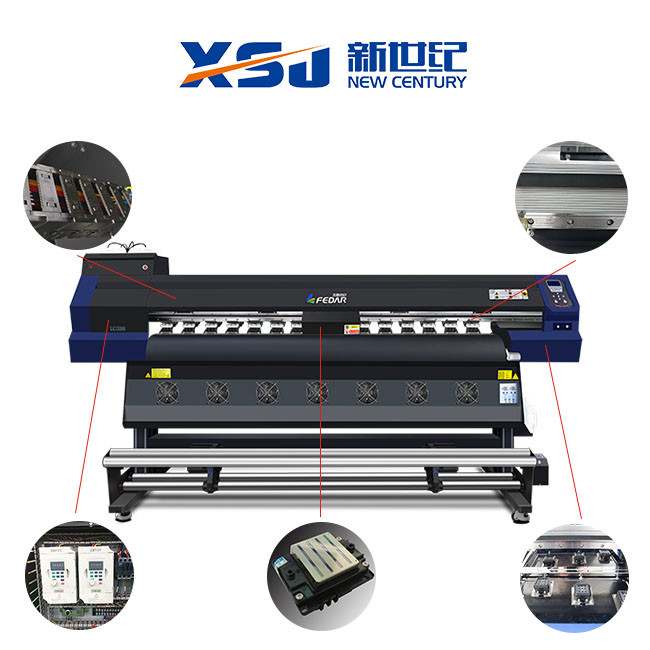

1. High Precision Printhead

Adopt Epson I3200-A1 printhead with 3200 nozzles,which improve the speed of printing geratly.

2.Intelligent Ink Starving Alarm

Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds

to add ink in time to ensure the continuity of printing work.

3.Advanced Capping Station

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well

and keep the ink flow fluently.

4.Intelligent Foggy Printing & VSDT Printing

Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable droplet techonology,

improve printing quality obviously.

5.Stable Media Feeding and Take-up System

Convenient and fast, the printing media is quickly stored, equipped with automatic paper measurement and

anti-rubbing function, the consumables are warped, printing is automatically paused to prevent scratching the


6.Wide Application

With help of heat transfer machine,printed images can be transferred to many different non-elastic material,

such as polyester,chiffon, silk, and flag banner. No limit on the patterns makes it a good choice in decoration,

garment and advertising field.

 3 Printheads AL193 Transfer Paper Printing Machine 0


3 Printheads AL193 Transfer Paper Printing Machine 1



The position of the print head can be adjusted according to different printing medias, and anti-collision devices

at both ends to give the print head more comprehensive safety protection.

Leadshine Motor:

The two-way Leadshine brushless motor has higher accuracy, smaller length error and more stable performance.


3 Printheads AL193 Transfer Paper Printing Machine 2


Large Capacity Ink Reservoirs:

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which guarantees

the long-term continuity of ink output.

Intelligent Air-heat Dryer:

Intelligent air-heat integrated dryer, two-stage heating, middle warm air and smart start-stop technology, ensure

the drying performance and more energy-saving at the same time.


3 Printheads AL193 Transfer Paper Printing Machine 3


US Fluororubber Pressure Roller:

US fluororubber pressure roller prevents static electricity from flying ink, prints more accurately and rejects wrinkles.

Two-level Ink Supply System:

Adopt two-level ink supply system, continuous printing for a long time to ensure the output quality of the picture.


3 Printheads AL193 Transfer Paper Printing Machine 4


THK Mute Guide Rail:

Using Japanese THK mute linear guide rail, the movement is more stable and the service life is longer.

Germany IGUS Ink Chain:

Imported Germany IGUS ink chain,high quality, to ensure the good completion of printing work.





3 Printheads AL193 Transfer Paper Printing Machine 5

                      Hat                                            Home textiles                            Interior renovation

3 Printheads AL193 Transfer Paper Printing Machine 6

                 Bed linings                                     Sportswear                                      Swimsuit
