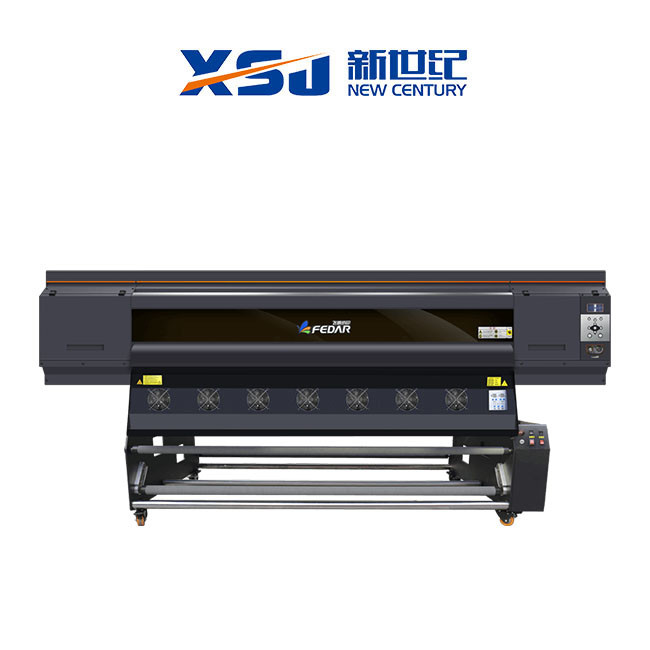

Fedar FD5196E Transfer Paper Sublimation Ink Printer

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD5196E
Minimum Order Quantity 1 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Type Epson I3200-A1 Quantity 6 Pcs
Printhead Resolution 3200DPI Printing Speed 200Sqm/h
Print Width 1900mm Ink Dye Ublimation Ink,Pigment Ink
Media Transfer Paper,Poster Paper RIP Software Maintop,Photoprint,Neostampa,Onyx,etc
Warranty 12 Months
High Light

FD5196E

,

200Sqm/h Transfer Sublimation Ink Printer

,

3200DPI Sublimation Ink Printer

Leave a Message
Product Description

                   Fedar FD5196E Tansfer Paper Printing Machine

Printhead Type:6pcs Epson3200 Micropiezo Printhead
Resolution:3200DPI
Head Property:Auto-clean and moisturize
Speed 2pass 200sqm/h
Tested on linear print without feather 4pass 120sqm/h
  6pass 60sqm/h
Printing Width 1900mm
Ink Sublimation Ink Color:CMYK Moisture Mode:Auto-capping Pump Moisture
Media Transfer Paper
RIP Software Maintop6.0/Photoprint 12/Onyx 18
Image Format JPG,TIFF,BMP,PDF...
Computer System Win7 Win10
Transmit Port Gigabit LAN
Dryer Extra Heating System
Media Transfer Double Power Take up Media System
Computer Hardware Configuration Hard Disk.:500G GPU:ATI Discrete GPU CD-ROM:DVD ROM Memory:4G or more than 4G CPU:Intel i5 processor
Optional Device Ink Level Alarm System Auto Tension Take-up Media System
Work Environment Temperature:25-35℃ Humidity:35-65%
Power 210-230VAC Frequency:50/60 HZ RC:16A Printer:1200W Dryer:9000W
Machine Size Machine Size:3710*1500*1940mm Package Size:3860*1130*1130mm



 FEATURE



1. High-end Softwar

Using international high-end software, the drawing is more realistic.

2. Intelligent Ink Starving Alarm:Reduces the tediousness of frequently checking the remaining amount of ink,

and at the same time reminds to add ink in time to ensure the continuity of printing work.

3. Intelligent Foggy Printing & VSDT Printing:Unique two-dimension intelligent foggy and wave-foggy function,

and VSDT variable droplet techonology, improve printing quality obviously.

4. Using Advanced Capping Station:Equipped with advanced intelligent printhead cleaning and moisturizing device,

providing safe and convenient printhead cleaning and maintenance functions, more convenient operation and maintenance.

5.Stable Media Feeding and Take-up System:Convenient and fast, the printing media is quickly stored, equipped with

automatic paper measurement and anti-rubbing function, the consumables are warped, printing is automatically paused

to prevent scratching the printhead.

Fedar FD5196E Transfer Paper Sublimation Ink Printer 0

 DETAIL

Fedar FD5196E Transfer Paper Sublimation Ink Printer 1

Carriage:

The position of the print head can be adjusted according to different printing medias, and anti-collision devices

at both ends to give the print head more comprehensive safety protection.

THK Mute Guide Rail:

Imported Japan THK mute linear guide rail, the movement is more stable and the life is longer.



Fedar FD5196E Transfer Paper Sublimation Ink Printer 2



Large Capacity Ink Reservoirs:

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which guarantees

the long-term continuity of ink output.

Intelligent Air-heat Dryer:

It is synchronized with printing, saving energy and reducing emissions. During the printing process, the

temperature can be adjusted in real time according to the actual situation.



Fedar FD5196E Transfer Paper Sublimation Ink Printer 3



Pinch Roller:

US fluororubber pressure roller prevents static electricity from flying ink, prints more accurately and rejects wrinkles.

Germany IGUS Ink Chain:

Imported Germany IGUS ink chain,high quality, to ensure the good completion of printing work.



Fedar FD5196E Transfer Paper Sublimation Ink Printer 4



Leadshine Motor:

The two-way Leadshine brushless motor has higher accuracy, smaller length error and more stable performance.

Two-level Ink Supply System:

Adopt two-level ink supply system, continuous printing for a long time to ensure the output quality of the picture.





APPLICATION
Fedar FD5196E Transfer Paper Sublimation Ink Printer 5
                 Sportwear                                   Indoor Decoration                                    Bedding

Fedar FD5196E Transfer Paper Sublimation Ink Printer 6
                     Bags                                  Underwear and swimwear                              Socks

 SHOW EVENTS
Zhengzhou New Century team had won the reputation of TOP 20 exporters in Advertising Equipment
in China and obtained more than 55 patents for the design&3patents for innovation.And have
participated in many exhibitions at home and abroad.Such as the domestic Zhengzhou exhibition,
Shanghai exhibition,Guangzhou exhibition and so on.Participating abroad is Colombia,New Delhi,
Ukraine,Thailand,Italy etc.No matter you are individual or agent, welcome to joins us !

Fedar FD5196E Transfer Paper Sublimation Ink Printer 7
 SERVICE

Pre-sale service



1. 7day*24hours Hot-line & Email service for inquiry.
2. Confirm the price, lead time, artwork, payment term etc.
3. Sales send the Proforma Invoice for you to confirm.
4. Customer make the payment for deposit and send us Bank Receipt.



In-sale service



1. Material and accessories carefully check upon arrival.
2. Make the sample according to customer require, send photos or samples to get customer approval.
3. After approval, we'll timely update you the production and delivery time.
4. Send photos to show the production status.
5. Confirm the exact delivery time again.
6. Clients make payment for balance then freedom ship the goods.
7. Inform the tracking number and check the status for you.



After-sale service



1. Solve any problem you may have and help you improve the relationship with your customers.
2. Timely update price change and new products' message.
