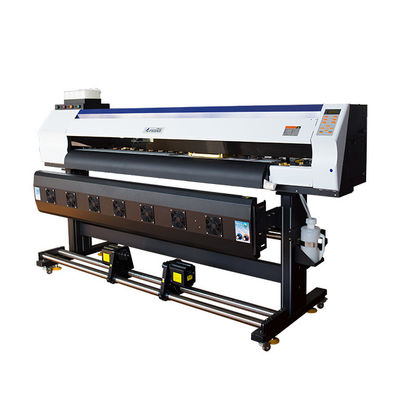

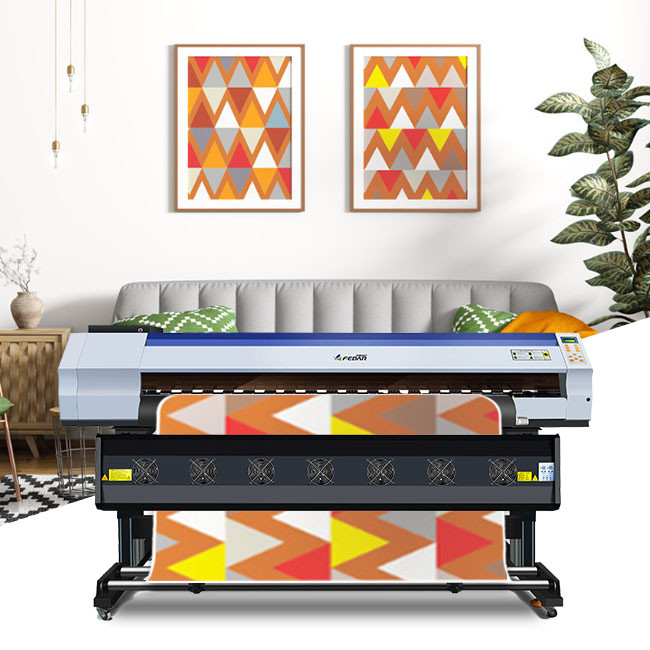

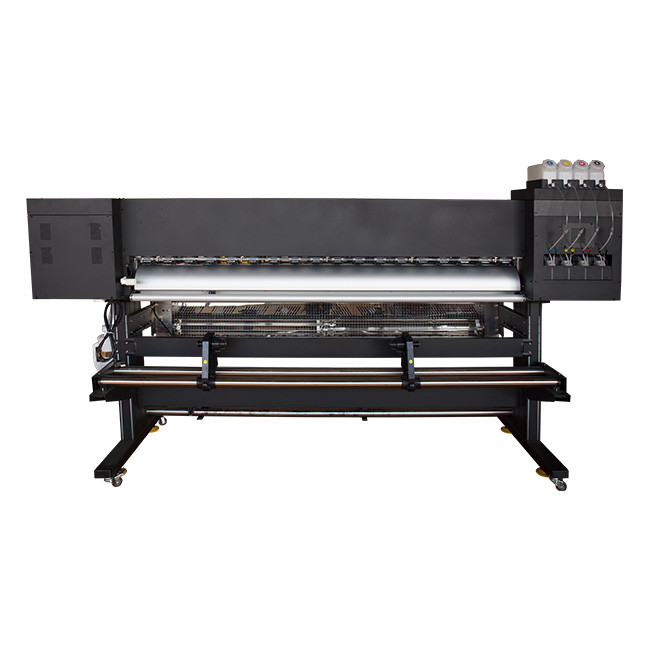

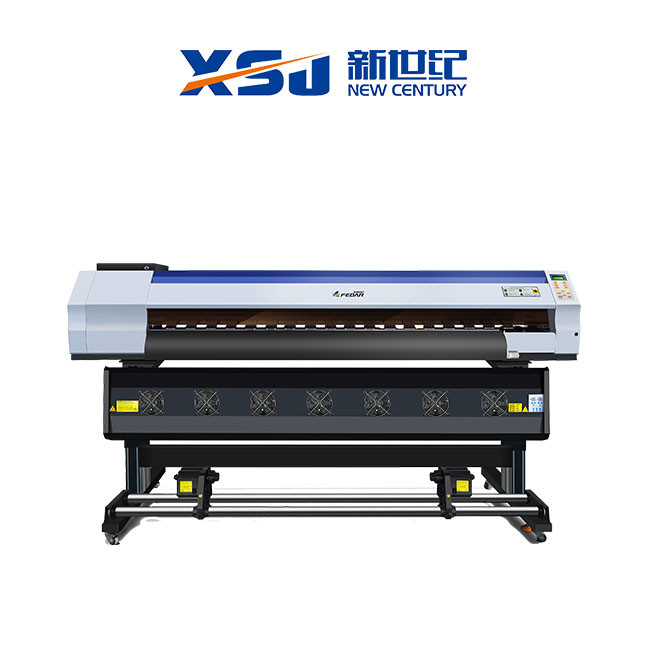

Water Based Pigment Ink 1.9m Transfer Paper Printing Machine

  • Water Based Pigment Ink 1.9m Transfer Paper Printing Machine
  • Water Based Pigment Ink 1.9m Transfer Paper Printing Machine
  • Water Based Pigment Ink 1.9m Transfer Paper Printing Machine
  • Water Based Pigment Ink 1.9m Transfer Paper Printing Machine
Place of Origin CHINA
Brand Name Fedar
Certification CE
Model Number FD1900
Minimum Order Quantity 1 Set
Price USD5000-7000/SET
Packaging Details EXPORT CRATE
Delivery Time 7-10 WORK DAYS
Supply Ability 20 SETS PER DAY
Product Details
Printhead EPS I3200-A1 Max Printing Width 1.9m
Head Quantity 2 Heads Ink Type Water Based Pigment/Sublimation Ink
Ink Color C M Y K RIP Software NeoStanpa,Ergosoft, Onyx,Photoprint,Maintop
Computer System Win7,Win8,Win10
High Light

1.9m Transfer Paper Printing Machine

,

Water Based Pigment Ink 1.9m printer

,

C M Y K Transfer Paper Printing Machine
Leave a Message
Product Description

 1.9m Transfer Paper Printing Machine Of Fedar

FD1900 Transfer Paper Printing Machine Of Fedar
Printhead EpsonI3200-A1 Nozzle Quantity 3200
Printhead Quantity 2 Print Width 1900mm
Ink Color CMYK Print Height 2-5mm
Resolution 360*1200/360*1800/
720*1200/720*1800(DPI)		 Media Transfer Auto Taking-Up Meida Device
Speed
*Tested on linear printing without feather function		 2pass 98㎡/h Drying Method Extra Dryer Device
3pass 64㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
4pass 50㎡/h Head Moisture
Method		 Auto Head Cleaning and Moisturize
6pass 32㎡/h Print Media Transfer Paper
Ink Type Sublimation Ink,
Water based Pigment Ink		 Transmission
Interface		 Gigabit LAN
Computer System Win7, Win8, Win10(Professional) File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃, Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop
Package Size 3250*960*1170mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Inte I5/I7, G-Ethernet
Standard Configuration Ink Level Alarm System



 DETAIL
Water Based Pigment Ink 1.9m Transfer Paper Printing Machine 0
 PRINTHEAD:                                                              INK TANK DESIGN:
 Adopt Epson I3200-A1 Printhead,it has 3200                    The capacity of the 3L bulk ink tank ensures

nozzles to improve the printing effective greatly.                continuous ink supply.Sub-tank is to keep all

                                                                                            color ink always at same level.

Water Based Pigment Ink 1.9m Transfer Paper Printing Machine 1
ELECTRONIC BOARD:                                        MOTOR:
Fedar electronic boards with featureed                         Leadshine servo motors are used on both X & Y dir.,

functions giving stability ofprinting.                                providing more accurate movement controlling.


Water Based Pigment Ink 1.9m Transfer Paper Printing Machine 2
PLATFORM:                                                              CARRIAGE:
Adopt 8mm aluminimum alloy,which can                       Equipped with anti-collision unit,carriage will

reduce automatically the sharp variables                       stop when cracked obstacles.

during transportation.



 FEATURE

  • Media take-up system : Industrial taking-up media and feeding media motor.
  • Filter : Each tank with a  filter,which helps filter the inpurities from ink.
  • Maintenance : Patented designed capping maintenance unit, capping lift is nore scientific.
  • Head Crack Protection : Featured head crack protection unit and media detecting function.



 APPLICATION



Water Based Pigment Ink 1.9m Transfer Paper Printing Machine 3

                        Hat                                       Home Textiles                       Interior renovation



Water Based Pigment Ink 1.9m Transfer Paper Printing Machine 4



                 Bed Linings                                  Sportswear                                  Swimsuit





 SHOW EVENTS

Zhengzhou New Century team had won the reputation of TOP 20 exporters in Advertising Equipment

in China and obtained more than 55 patents for the design&3patents for innovation.And have

participated in many exhibitions at home and abroad.Such as the domestic Zhengzhou exhibition,

Shanghai exhibition,Guangzhou exhibition and so on.Participating abroad is Colombia,New Delhi,

Ukraine,Thailand,Italy etc.No matter you are individual or agent, welcome to joins us !



Water Based Pigment Ink 1.9m Transfer Paper Printing Machine 5





 OUR SERVICE

  • One year warranty,lifetime maintenance beyond the warranty.

  • Teachnical training and guidance will be provided by ten technicians who can fly to various countries at any time .

  • More than 2 million yuan were invested on after-sales every year.

  • Providing remote after-sales service support by online teachnical guidance.

  • Two more QC is added on export machines to guarantee the quality.Strict controlling on leadtime.
