Stormjet 1.8m Large Format Eco Solvent Printer I3200E1 Vinyl Plotter

Place of Origin CHINA
Brand Name STORMJET
Certification CE
Model Number F1
Minimum Order Quantity 5 Set
Packaging Details EXPORT CRATE
Delivery Time 7-10DAYS
Payment Terms T/T
Supply Ability 20 SETS PER DAY
Product Details
Head Type F1440-A1/ I3200-A1 Or E1 Max Printing Width 1800mm
Head Quantity 3/4 Pcs Package Wooden Box
Transmit Port Network Port Color CMYK
Computer System Win7/8/10 Print Height 2-5
High Light

Stormjet Large Format Eco Solvent Printer

,

1.8m Large Format Eco Solvent Printer

,

I3200E1 Vinyl Plotter

Leave a Message
Product Description

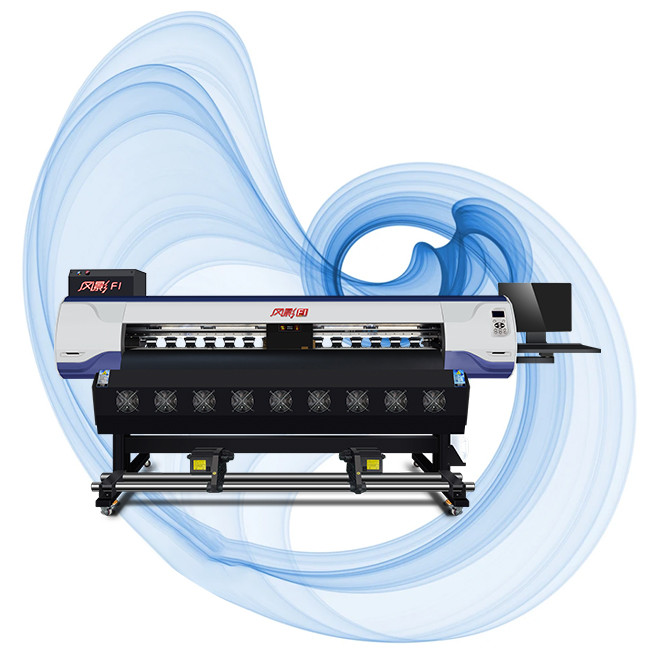

Stormjet 1.8m I3200E1 Vinyl Plotter Large Format Eco Solvent Printer

Eco solvent printer is for advertising products, such as car sticker, PVC, PP synthetic paper, flex banner and

so on. Available to water based ink, eco solvent ink.



Storm Jet Printer Parameter
Stormjet inkjet printers china factory Inkjet printer garment plotter

Printhead
Type: Epson F1440-A1
Resolution: 1440DPI

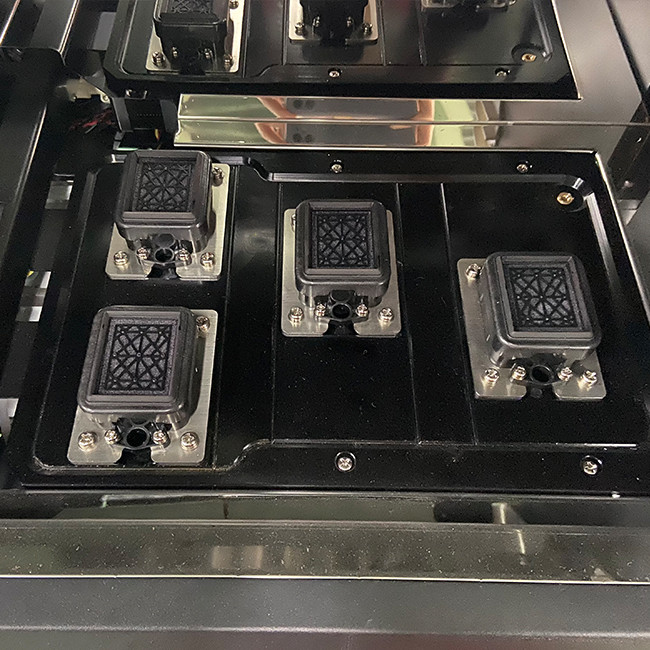

Head Clean: Auto cleaning, flash and Moisturizing
Type: Epson I3200-E1
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing
Quantity
3 or 4


Print Speed
*Tested on linear printing without feather function
2pass
60㎡/h
2pass
118㎡/h
4pass
45㎡/h
3pass
80㎡/h
6pass
31㎡/h
4pass
60㎡/h
8pass



24㎡/h
6pass



42㎡/h
Print Width
1800mm

Ink Type
Type: Water-based ink(Dye or Pigment),
Eco Solvent Ink, Sublimation Ink
Color:CMYK
Type: Eco solvent ink, Water-based ink(Dye or Pigment), Sublimation Ink
Color:CMYK
Print Media
PP, PVC, Vinyl, Flex Banner, Backlit, Canvas, etc.
Indoor advertising material, Transfer Paper
Rip Software
Maintop6.0, Photoprint19, Onyx 19
Image Format
JPG, TIFF, BMP, PDF, etc.
Computer System
Win7,Win8,Win10
Transmit Port
USB 3.0/Network Port

Computer Cofigiration
Hard Disk: 500G or more, GPU: ATI Mobility
Radeon, Memory: 4G or above
CPU: Intel 4 I5 processor or above
Optional Device
Intelligent Dryer, Auto Feeding and Take-up System, Anti Collosion System
Working Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
Power Supply
50/60HZ, 220V, 10A
Package Machine Size
3130*940*1080m
Machine Weight
300kg





Stormjet Large Format Eco Solvent Printer Feature

1.  Import Bi-Direction Motor
High-Resolution driver,linear encoder,higher resolution,fewer errors in length,more stable running.
2.  Protect Printhead Function
During print,if the paper takes up suddenly,the printer will stop working immediately to protect printhead safely.

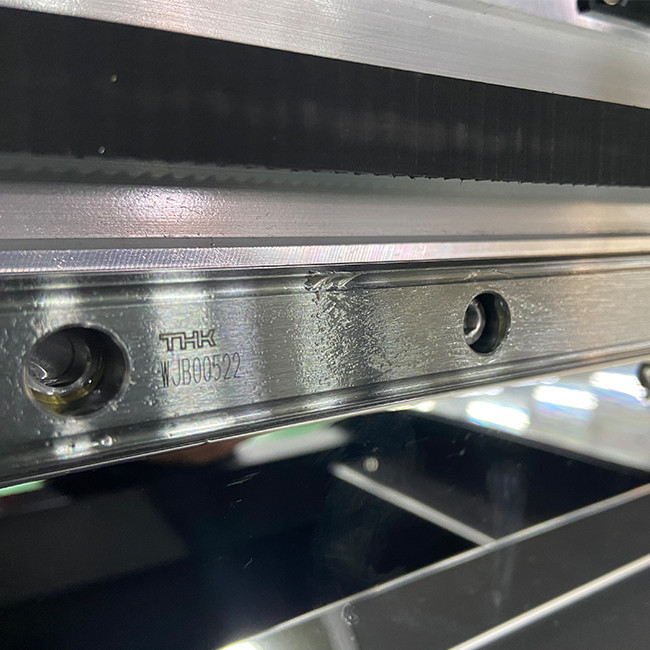

3.  Import THK Mute Linear Guide
Import THK Mute Linear Guide,which makes the printer more stable,longer working life,lower noise.
4.  Chinese and English Operation LCD Display
Depend on your need,using English or Chinese language.
5.  Front-Middle-Back 3 Steps Heating
3 steps heating,making material pre-heat completely and print image more colorful.
6.  Intelligent Feather Print
Unique two dimension intelligent eclosion function,eliminating banding effectively in printing,which improves printing quality obviously.
7.  Memory Printout
When you meet power off,restart the printer,it can print continuously.

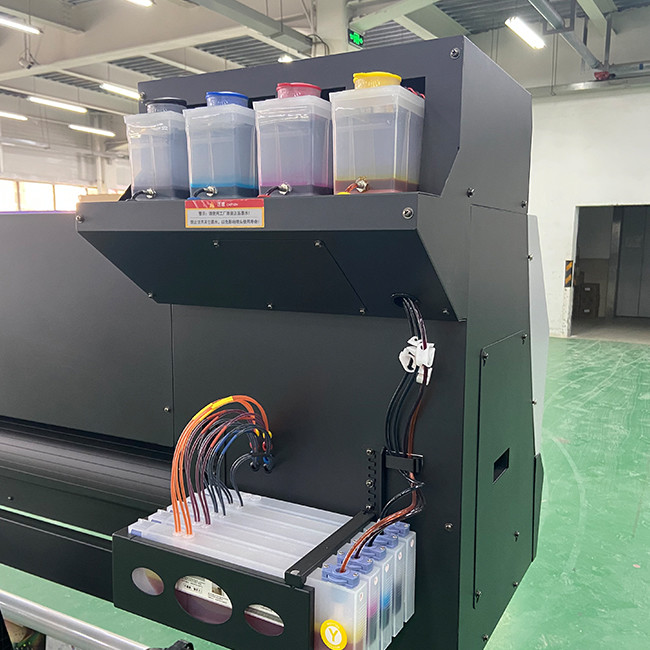

8.  Large Ink Tank
large ink tanks provide ink durably,keeping wide format high speed printing wonderfully.
9.  RIP Software
Compatible with different kinds of printing software,intelligent design,support Maintop,Photoprint,ONYX,Wasatch,etc.

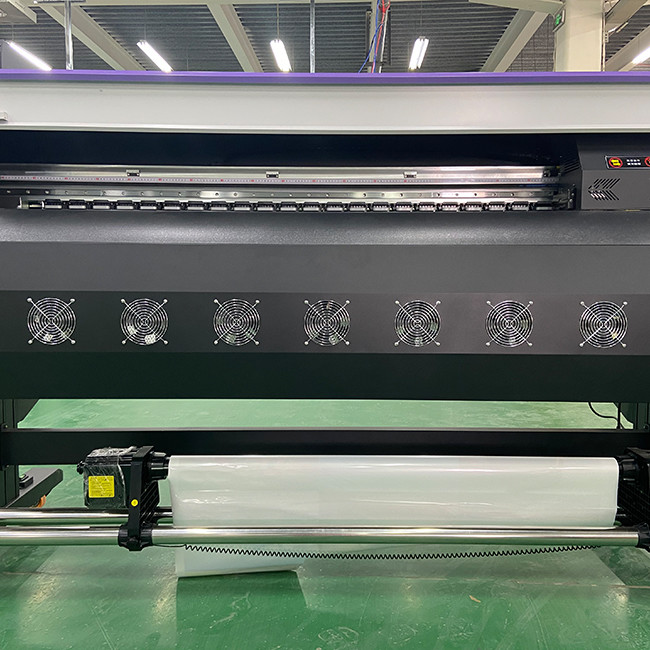

10.  Intelligent Dryer
Drying speed is match to print speed,high efficient and saving energy.

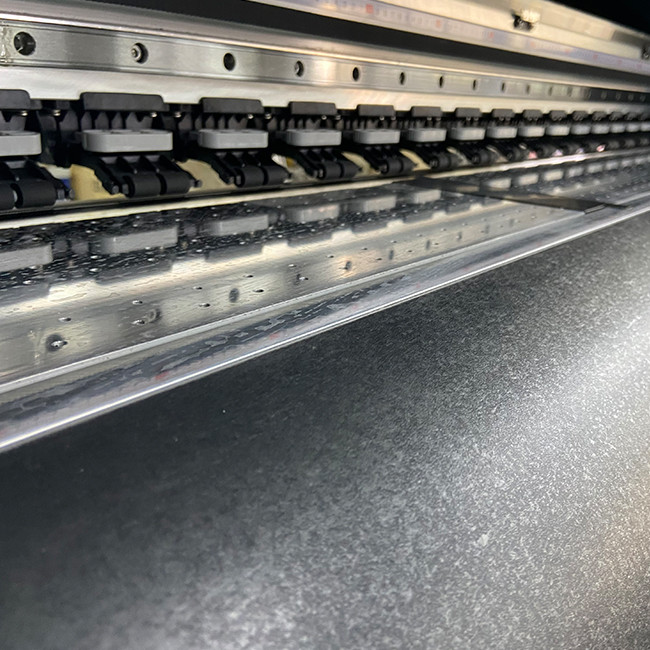

Stormjet Eco Solvent Printer Detail

Stormjet 1.8m Large Format Eco Solvent Printer I3200E1 Vinyl Plotter 0



Stormjet Printer Application



Stormjet 1.8m Large Format Eco Solvent Printer I3200E1 Vinyl Plotter 1
