Skycolor SC-4180UV 1800mm UV Inkjet Printer Top Speed Roll To Roll Printer

Place of Origin CHINA
Certification CE
Model Number SC-4180TS
Minimum Order Quantity 5 Set
Packaging Details EXPORT CRATE
Delivery Time 7-10DAYS
Payment Terms T/T
Supply Ability 20 SETS PER DAY
Product Details
Head Type I3200-A1/E1 Printhead Ink Supply System Ink Supply System
Head Quantity Double Heads Max Printing Width 1800mm
RIP Software Photoprint/Maintop/ONYX Image Format JPG, TIFF, BMP, PDF, Etc.
Colors CMYK+W Interface USB2.0
Weight 320kg
High Light

1800mm UV Inkjet Printer


SC-4180UV UV Inkjet Printer


1800mm Roll To Roll Printer

Leave a Message
Product Description

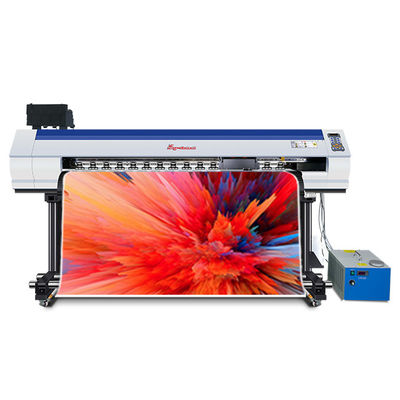

Skycolor SC-4180UV 1800mm Top Speed Roll To Roll Printer UV Inkjet Printer

Eco solvent printer is for advertising products, such as car sticker, PVC, PP synthetic paper, flex banner and so on.

Available to water based ink, eco solvent ink, uv ink. Epson I3200-A1 and Epson F1440-A1 are optional.


SC-4180UV Top Speed Roll To Roll Printer UV Inkjet Printer Parameter


Model SC-4180UV
Printhead EPSON I3200-U1
Printing Speed CMYK+W 6PASS 15㎡/h
8PASS 11㎡/h
Print Width 1800mm
Colors CMYK+W
Ink Type LED-UV Curing Ink
Color Management ICC based;Density&Curves Adjustment
RIP Software Photoprint/Maintop/ONYX
Application Advertising;Wallpaper;Decoration
File Format TIFF,JPG,PDF,BMP...
Interface USB2.0
Heating System Three-section-heating,Pre-heater;Bed-heater and Rear-heater
Feeding Method Roll to Roll;Leaf
Power Supply 220V 50HZ/60HZ 10A
Dimension 2920*940*980mm




Skycolor UV Inkjet Printer Feature

*  Epson I3200-U1 printhead with 8*400 nozzles,achieving 3200DPI high-resolution output.

*  Adopting VSDT variable dot technology and its smallest droplet is2.5pl,achieving prefect printing.

*  Dual direction motor,high-resolution driver linear encoder, fewer errors in length,more stable running.

*  Unique planar feather function and wave feather function,eliminating BANDING during printing,achieving excellent quality and perfect improvement.

*  Multi-mode print option,common production mode can reach to high-speed of 21m²/h,faster on speed and higher on resolution.

*  Own advanced EPSON intelligent printhead cleaning and moisturizing device,providing convenient printhead cleaning and maintaining function.


SC-4180UV Roll To Roll Printer UV Inkjet Printer Detail

Skycolor SC-4180UV 1800mm UV Inkjet Printer Top Speed Roll To Roll Printer 0

*  Different RIP software

Compatible with RIP software,Maintop,Photoprint,Onyx etc.

*  Secondary Ink Supply System

Long time ink supply system improves working efficiency and ensures image output quality.

*  THK Guide Line

Adopting original THK silent guide,which makes printer more stable even at a high speed.Long working life.

*  Double Power Take Up System

Double power take up system high resolution frosted feeding shaft.Make sure high precision of feeding system.

*  Leadshine Motor

Dual-direction imported motor,high resolution driver,linear encoder,higher resolution in length,more stable running.

*  Intelligent Eclosion Printing

Unique two-dimension intelligent eclosion and wave function,eliminating BANDING effectively during printing,improving print quality obviously.


Double Heads Advertising Printer Application

Used for eco solvent printing and water-based ink printing on indoor and outdoor wide format advertising.

Skycolor SC-4180UV 1800mm UV Inkjet Printer Top Speed Roll To Roll Printer 1
