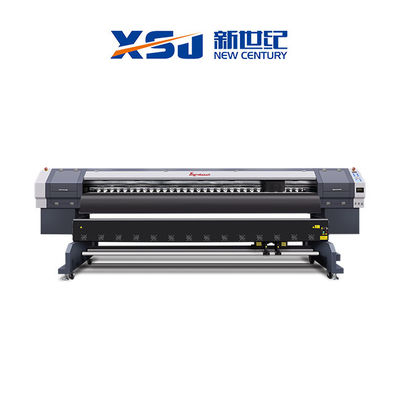

SKYCOLOR EPS 4720 3200mm Eco Solvent Inkjet Printer

Place of Origin CHINA
Certification CE
Model Number SC-320TS
Minimum Order Quantity 1 Set
Price USD9000-10000/SET
Packaging Details EXPORT CRATE
Delivery Time 7-10 DAYS
Payment Terms T/T , D/A, D/P, L/C
Supply Ability 20 SETS PER DAY
Product Details
Printhead Original Dx5,EPS 4720 Max Printing Width Width 3.2m
Head Quantity Dual Heads, Three Heads Ink Eco Solvent Ink
Ink Color CMYK Package Export Crate
Usage Vinyl Printer, Poster Printer, Bill Printer, Sign Printer Media Type Roll To Roll
High Light

3200mm Eco Solvent Inkjet Printer


EPS 4720 Eco Solvent Inkjet Printer


SKYCOLOR Wide Format Inkjet Printer

Leave a Message
Product Description

3.2m Epson Head Wide Format Inkjet Printer for eco solvent printing


Mode SC-320TS Epson Wide Format Inkjet Printer
Printhead Technology EPSON Micropiezo DX5/ 4720 printheads
Ink Type Water Based; Eco Solvent Based
Colors Double Four Color
Number of Nozzles DX5 head (180*8 nozzles) 4720 head (400*8nozzles)
Height of Head Print 2-5 mm (Variable)
Media Feeding Method Multi-Pinch Rollers Feeding System
Color Management ICC Based, Density & Curves adjustment
Computer System Windows7 and Windows8
Power Supply 50HZ/60HZ, 220V, 10A
Humidity 40%-60%
Maximum Printing Width 3200mm
Printing Resolution & Speed
720×720 4Pass 32㎡/H
720×1080 6Pass 26 ㎡/H
720×1440 8Pass 18㎡/H


SKYCOLOR EPS 4720 3200mm Eco Solvent Inkjet Printer 0



1. Two sets of feeding & take-up unit are equipped, as for heavy media, which can be placed on roller to feed it.

2. Multi-row pinch rollers made of Dupont rubber ensure the accurate movement of media.

3. Imported Japanese THK linear guide rail makes carriage movement smooth and low noise.

4. Intelligent infrared heating & blowing external dryer accelebrates media drying speed, meanwhile

heating and printing can be synchronous to reduce the energy waste.

5. Bulk tanks with 3L capacity and small sub-tanks with valves provide continuous ink supply and convinience

    on tank maintemance.

6. Leadshine brushless integrated servo motors are used on both X and Y dir. giving accurate movement controlling.

SKYCOLOR EPS 4720 3200mm Eco Solvent Inkjet Printer 1



1. 3.2m wide format output, support double-head or triple-head printing to meet the different printing demand.

2. Adopt Epson lastest micropiezo printhead with VSDT (variable size of dot technology), the smallest

droplet is 3.5pl, the largest droplet is 15pl ensuring excellent quality output.

3. Support eco solvent ink and water-based ink, which is applicable on both indoor and outdoor printing.

4, Ethernet data transmission port, data transmisssion is super faster than USB port, which reduce the

pause of carriage in both ends.
5, Intelligent feather function eliminating BANDING effectively in printing,improving printing quality obviously.

6, Troubleshooting is built-in Pcs PrintExp., which is convinient and helpful to do daily maintenance.

7, Featured auto head cleaning function, effectively eliminates nozzle clogging and improve prinitng quality.
8, Multiple RIP softwares (Maintop, Photoprint, Onyx, Print Factory) are optional to meet different operator's habits.


SKYCOLOR EPS 4720 3200mm Eco Solvent Inkjet Printer 2


SKYCOLOR EPS 4720 3200mm Eco Solvent Inkjet Printer 3

Cooperate with eco solvent ink, used for ourdoor printing.

SKYCOLOR EPS 4720 3200mm Eco Solvent Inkjet Printer 4
