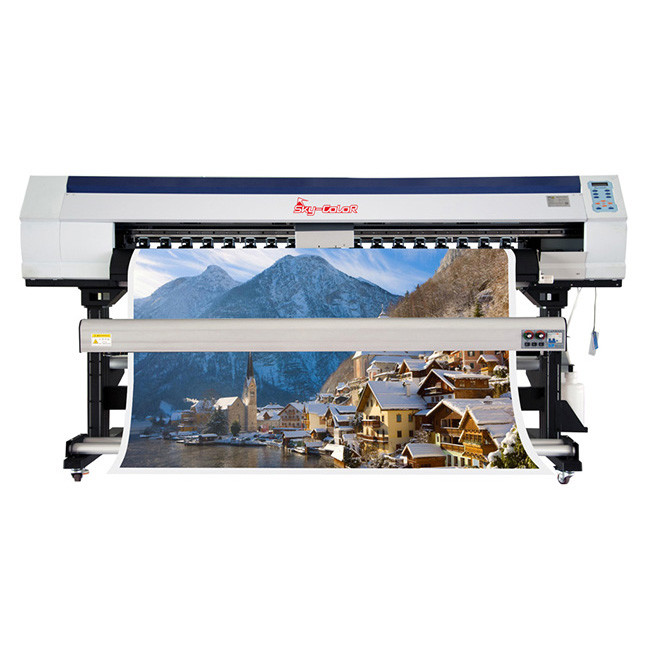

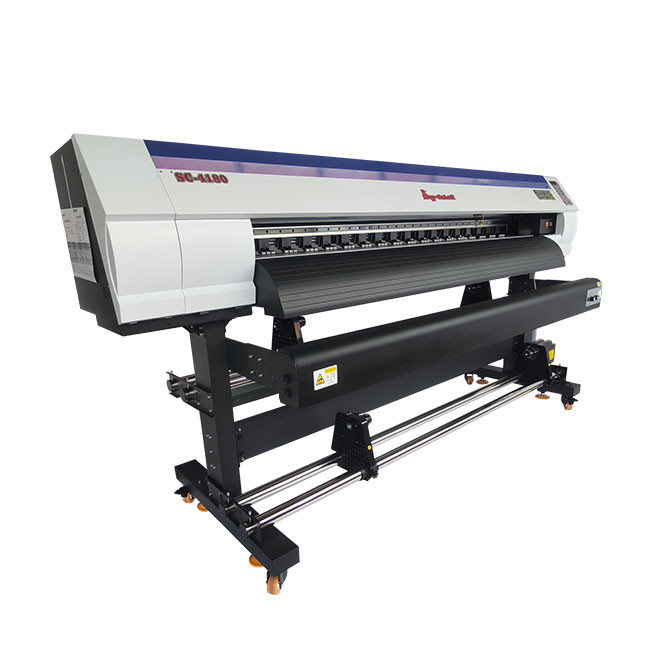

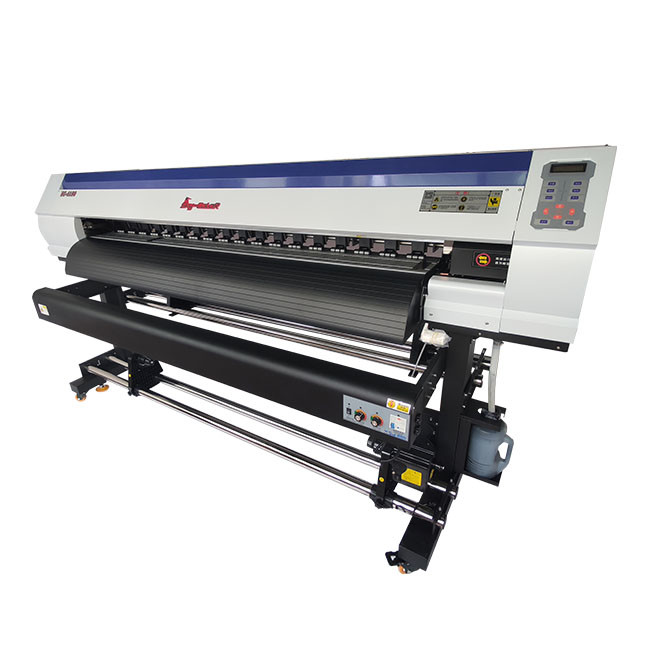

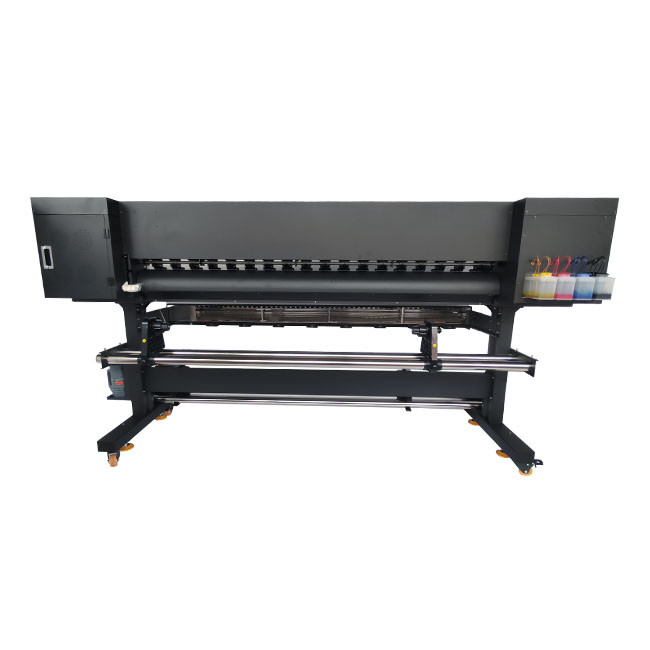

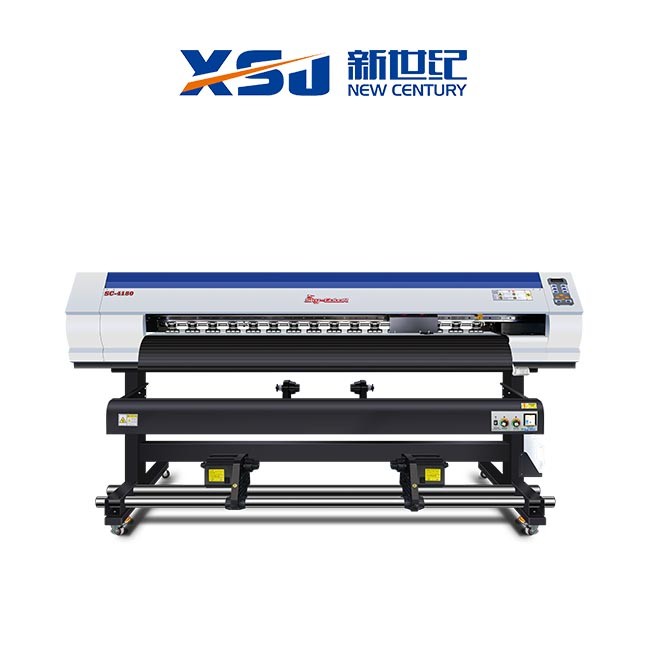

SC 4180TS DX5 Eco Solvent Printing Machine
Head Type | Micropiezo DX5 Or 4720 Printhead | Ink Supply System | Siphon Positive Ink Supply System |
---|---|---|---|
Max Printing Width | 1.8m | Head Quantity | Dual-head/two Heads |
Ink Type | Eco Solvent Ink, Sublimation Ink, Water-based Ink | Voltage | 110V/220V |
Usage | Paper Printer,Label Printer | Ink Color | CMYK |
High Light | SC 4180TS Eco Solvent Printing Machine,DX5 Eco Solvent Printing Machine,SC 4180TS DX5 Eco Solvent Printer |
Double Heads SC 4180TS Sky Color inkjet printer with Epson Dx5
Parameter
Mode | SC-4180TS Epson head wide format inkjet printer with 1.8m width | |
Printhead Technology | EPSON Micropiezo DX5/ 4720 printheads | |
Ink Type | Water Based; Eco Solvent Based | |
Colors | CMYK | |
Number of Nozzles | DX5 head (180*8 nozzles) 4720 head (400*8nozzles) | |
Height of Head Print | 2-5 mm (Variable) | |
Media Feeding Method | Multi-Pinch Rollers Feeding System | |
Color Management | ICC Based, Density & Curves adjustment | |
RIP Software | MAIN TOP 5.3/PHOTOPRINT 19/ONYX19 | |
Computer System | Windows7 and Windows8 | |
Power Supply | 50HZ/60HZ, 220V, 10A | |
Humidity | 40%-60% | |
Maximum Printing Width | 1800mm | |
Printing Resolution & Speed | ||
720×720 | 4Pass | 32㎡/H |
720×1080 | 6Pass | 26 ㎡/H |
720×1440 | 8Pass | 18㎡/H |
Details:
Features:
Servo Motor: LEADSHINE (Famous Brand in China)
Guide Line: THK (Famous Brand in Japan)
Cartridge: Original Import (Clean, Pump and Moisturize Automatically)
Main Board: Design and Produced by ourselves, Hoson Boards control system
Ink Supply System: Double Four Color Ink Tank
Advantages
1.Independent R D double heads split & joint adjustment. Let heads vertical calibration is easy and convenient.
Printing heads height can be adjust 2~10mm adopting different materials thickness.
2.The capping station is imported from overseas to ensure its reliability and permanence.
It can protect and clean head efficiently and conveniently. It can clean head, moisturize and pump ink Full automatically.
Keep ink supply system work fluently.
3.Original import from Japan THK guide line can keep high precision, low noise and long time service life.
4.Both servo and step motor using brushless DC motor. High precision drive linearly decoded, lower deviation and run more stable.
5.We use high speed fiber to replace traditional data cables between main board and printing board.
This will be faster and stable during printer working.
Application
Applicable for flex banner poster, vinyl, PP, PVC printing.
