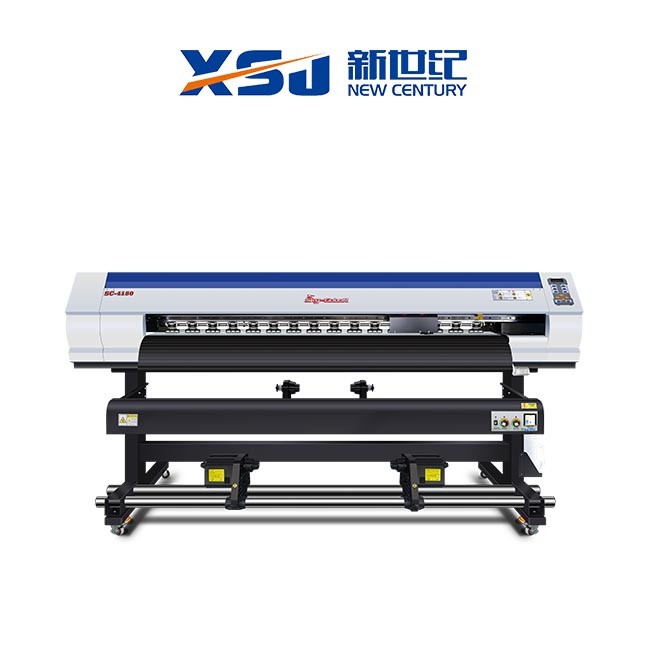

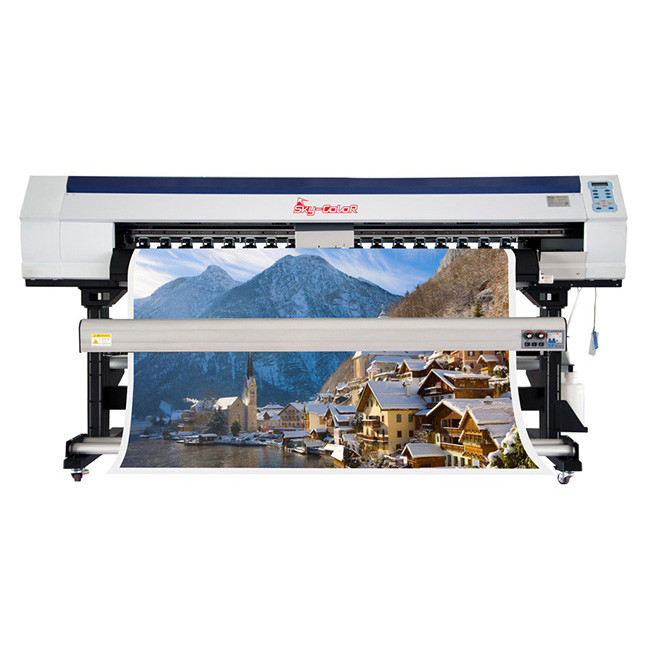

SC-4180TS 1.6m 1.8m Large Format Eco Solvent Printer
Product Details
| Print Width | 1850mm | Printhead | Dx5 / 4720 |
|---|---|---|---|
| Head Quantity | 2 / 1 | Print Material | Wallpaper, Poster, Flex Banner, Canvas, Etc |
| RIP Software | Photoprint, Onyx, Maintop | Warranty | 1 Year |
| Ink Type | Double CMYK | Ink | Eco Solvent Ink, Sublimation Ink |
| Print Interface | Network Port | Printer Type | Advertising Or Textile Area |
| High Light | 1.8m Large Format Eco Solvent Printer,1.6m Large Format Eco Solvent Printer,SC-4180TS Eco Solvent Printer |
||
Product Description
1.6m 1.8m Large Format Eco Solvent Printer Digital Dye Sublimation
Skycolor SC-4180TS using original dx5 or four code dx5, totally 1440 nozzles, and printing highest resolution than other printhead. This head support double 4 color, which can print 90% color picture well and meet customer inquiry.
Parameters for SC-4180TS
| SC-4180TS Eco Solvent Printer | ||||||
| Printhead | Type: Epson Dx5 Resolution: 1440DPI Head Clean: Auto cleaning, flash and Moisturizing |
Type: Epson 4720 Resolution: 3200DPI Head Clean: Auto cleaning, flash and Moisturizing |
||||
| Quantity | 2 | |||||
| 2pass | 45㎡/h | 2pass | 80㎡/h | |||
| Print Speed *Tested on linear printing without feather function |
4pass | 32㎡/h | 3pass | 55㎡/h | ||
| 6pass | 26㎡/h | 4pass | 40㎡/h | |||
| 8pass | 18㎡/h | 6pass | 30㎡/h | |||
| Print Width | 1850mm | |||||
| Ink Type | Type: Water-based ink(Dye or Pigment), Eco Solvent Ink, Sublimation Ink Color:CMYK |
Type: Water-based ink(Dye or Pigment), Sublimation Ink Color:CMYK |
||||
| Print Media | PP, PVC, Vinyl, Flex Banner, Backlit, Canvas, etc. | Indoor advertising material, Transfer Paper | ||||
| Rip Software | Maintop6.0, Photoprint19, Onyx 19 | |||||
| Image Format | JPG, TIFF, BMP, PDF, etc. | |||||
| Computer System | Win7,Win8,Win10 | |||||
| Transmit Port | USB2.0 / USB 3.0 | |||||
| Computer Cofigiration | Hard Disk: 500G or more, GPU: ATI Mobility Radeon, Memory: 4G or above CPU: Intel 4 I5 processor or above |
|||||
| Optional Device | Intelligent Dryer, Auto Feeding and Take-up System, Anti Collosion System | |||||
| Working Environment | Temp.:15℃-30℃, Humidity: 35℃-65℃ | |||||
| Power Supply | 50/60HZ, 220V, 10A | |||||
| Package Machine Size | 2950*940*980m | |||||
| Machine Weight | 240kg | |||||
Feature
1. Double four-color printing,1.6m and 1.80m wide format output
2. Indoor and outdoor ink are both available, meeting different printing needs.

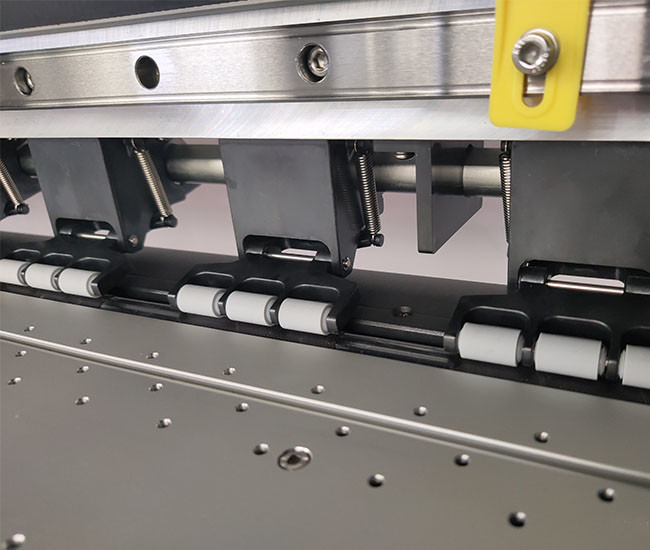

3. Multi-row pinch rollers ensure the machine can print with an accurate size of feeding media.
4. Printing resolution can reach to 1440dpi,even the word is small as 0.5mm.
5. Three different sizes of dots,achieving the complement of images,even under high speed or low resolution
Optional Items
1. Hiwin guide rail,more stable,longer working life,lower noise.
2. Imported dual direction motor,high-resolution driver linear encoder,higher resolution,fewer errors in length,more stable running.
3. Hi USB interface,transmission speed can reach to 480M/S,plug and play conveniently.
4. Adopt EPSON DX5 printhead,variable dots technology,1440DPI high resolution output.
5. VSDT variable droplet techonology,the smallest droplet is 3.5PL,largest droplet is 27PL,achieve the prefect printing quality.
6. Unique two-dimension intelligent eclosion and wave-eclosion function,elimination banding effectively in printing,improveing printing quality obviously.
7. Different kinds of printing mode,reach to 28m per hour in production mode.
8. High quality,clean,pump and moisturize automatically,which can also pump ink well and keep the ink flow fluently.

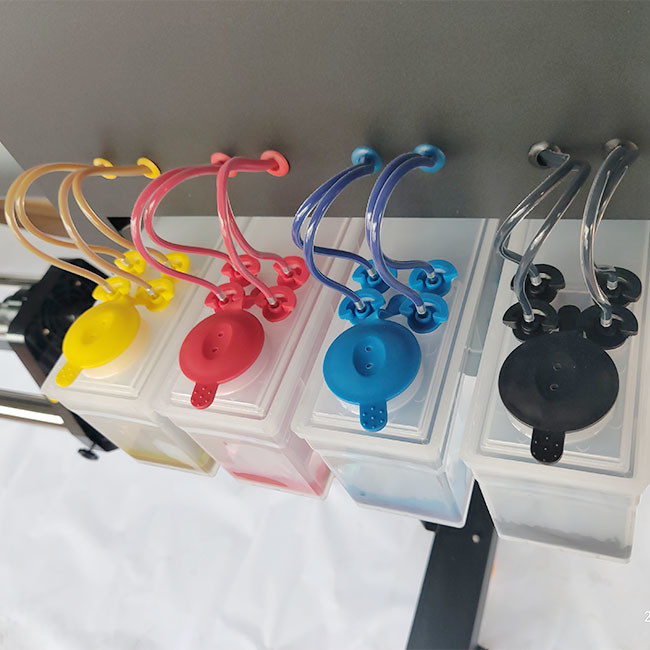

9. Four large ink reservoirs provide ink durably,keeping wide format high-speed printing wonderfully.
10. Adopt the most recommended ink in advertising industry,achieving fast drying,moisture-proofing and sticky-proofing.
Applications in Advertising Area
Car Vinyl, Poster. Wall paper, Canvas, Mesh, Back-lit, PP, Sticker, etc.
80gsm Transfer paper, Polyester, Dress, Sportswear, Curtain,
FAQ
Q: Are you trading company or manufacturer ? A: We are manufacturer.
Q: How long is your delivery time? A: Generally it is 3-7 days if there is stock. Or it is 7-15 days if there is not stock, it is related to order quantity.
Q: Do you provide printing
samples? is it free or extra ? A: Yes, we could provide printing samples for free but you should pay the freight cost.
Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 70% or 50% T/T in advance,balance paid before shippment.
