SC320TS Large Format Digital Inkjet Printing Machine

  • SC320TS Large Format Digital Inkjet Printing Machine
  • SC320TS Large Format Digital Inkjet Printing Machine
  • SC320TS Large Format Digital Inkjet Printing Machine
  • SC320TS Large Format Digital Inkjet Printing Machine
Place of Origin China
Brand Name Skycolor
Certification CE
Model Number SC-320TS
Packaging Details Standard Wooden Box
Supply Ability 200 sets per month
Product Details
Usage 3.2m Material Heads 2/3/4
Head Type I3200-A1/I3200-U1 Beam Aluminum
Motor Leadshine Ink Type Eco Solvent Ink, Water Based Pigment Ink
Driver Leadshine
High Light

3200mm Digital Inkjet Printing Machine

,

CMYK Digital Inkjet Printing Machine

,

4 Heads Inkjet Printing Machine
Leave a Message
Product Description

Skycolor SC320TS Large Format Digital Inkjet Printing Machine Using I3200-A1/E1

Eco solvent printer is for advertising products, such as car sticker, PVC, PP synthetic paper, flex banner and

so on. Available to water based ink, eco solvent ink, uv ink. Epson I3200-A1 and Epson F1440-A1 are optional.



Large Format Digital Inkjet Printing Machine Using I3200-A1/E1 Parameter

SC-320TS Digital Inkjet Printing Machine For Advertising


Printhead
Type: Eps on L1440-A1 Micropiezo Printhead
Number of Nozzles: 1440(1PC)
Resolution: 1440DPI
Head Clean: Auto cleaning, flash and Moisturizing
Type: Eps on I3200-A1 Micropiezo Printhead
Number of Nozzles: 3200(1PC)
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing
Quantity
2
3
2
3


Print Speed
*Tested on linear printing without feather function
4pass
32 sqm/h
45 sqm/h
2pass
80 sqm/h
124 sqm/h
6pass
26 sqm/h
31 sqm/h
4pass
55 sqm/h
85 sqm/h
8pass
18 sqm/h
24 sqm/h
6pass
42 sqm/h
63 sqm/h



8pass
30 sqm/h
44 sqm/h
Print Width
3200mm
Print Width
Type: Water-based ink(Dye or Pigment), Eco Solvent Ink, Sublimation Ink
Color:CMYK
Print Media
PP, PVC, Vinyl, Flex Banner, Backlit, Mesh, etc.
Rip Software
Maintop6.0, Photoprint19, Onyx 19
Image Format
JPG, TIFF, BMP, PDF, etc.
Computer System
Win7,Win8,Win10
Transmit Port
USB 2.0 / USB 3.0

Computer Cofigiration
Hard Disk: 500G or more, GPU: ATI Mobility
Radeon, Memory: 4G or above
CPU: Intel 4 I5 processor or above
Optional Device
Heat System: Extra Dryer Device
Take up System: Auto
Working Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
Power Supply
50/60HZ, 220V, 5A
Machine Size
Machine Size: 4680*1130*1490mm
Printer Packing Size: 4815*1100*1650mm
Machine Weight
750kg





Skycolor Large Format Digital Inkjet Printing Machine Detail

SC320TS Large Format Digital Inkjet Printing Machine 0

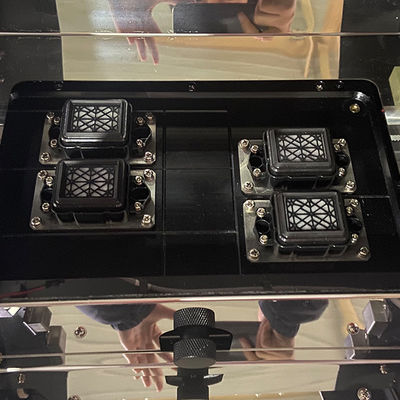

1.Capping Station:

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well

and keep the ink flow fluently.

2.Ink Tank:

Bulk tanks with 3L capacity and small sub-tanks with valves provide continuous ink supply and convenience

on tank maintenance.

3.Drying System:

Intelligent infrared heating & blowing external dryer accelebrates media drying speed, meanwhile heating and

printing can be synchronous to reduce the energy waste.

4.Feed & Take-up System:

Dual-motor take-up unit is standard equipped.



Skycolor SC320TS Large Format Digital Inkjet Printer Application

SC320TS Large Format Digital Inkjet Printing Machine 1
