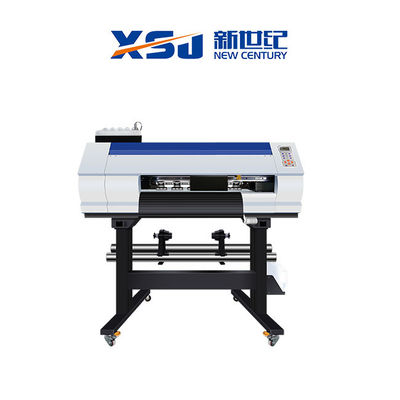

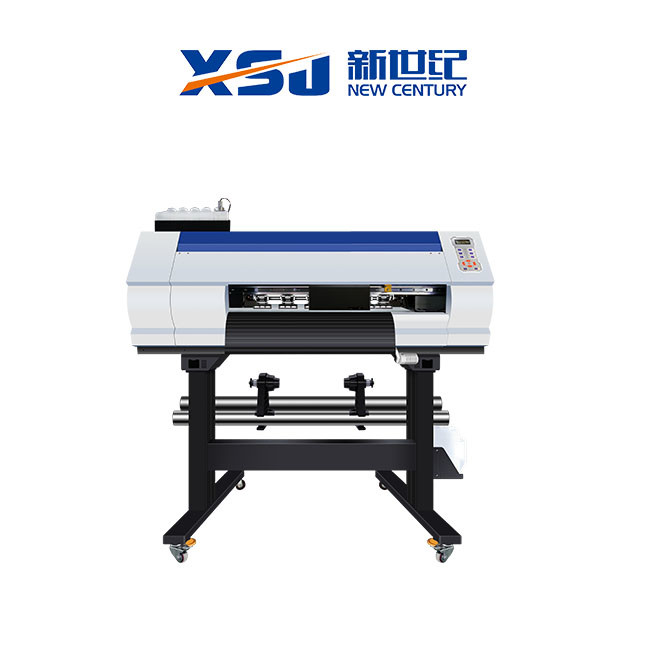

Pyrography Film 2 Heads 60cm Textile Inkjet Printer

  • Pyrography Film 2 Heads 60cm Textile Inkjet Printer
  • Pyrography Film 2 Heads 60cm Textile Inkjet Printer
  • Pyrography Film 2 Heads 60cm Textile Inkjet Printer
Place of Origin CHINA
Brand Name FEDAR
Certification CE
Model Number FD65-2
Minimum Order Quantity 1 Set
Packaging Details EXPORT CRATE
Delivery Time 7-10 DAYS
Payment Terms T/T
Supply Ability 20 SETS PER DAY
Product Details
Head Type EPSON I3200-A1 Head Max Printing Width 60cm
Head Quantity 2 Heads Usage Pyrograph Film Printing
Color CMYK + W Type Fedar Sublimation Printer
Rip Software Maintop Ink Type Pigment Ink / Paint Ink
High Light

60cm Textile Inkjet Printer

,

Pyrography Film Textile Inkjet Printer

,

1800DPI Textile Inkjet Printer
Leave a Message
Product Description

                       FEDAR Shake Powder Digetal Inkjet Printing Machine With 2 Heads

FD65-2 Heat Transfer Film Printer
Printhead
Epson I3200-A1
Nozzle Quantity
3200
Printhead Quantity
2
Print Width
600mm
Ink Color
CMYK+W Pigment Ink
Print Height
2-5mm
Resolution
360*1200/360*1800/
720*1200/720*1800(DPI)
Media
Pyrograph Film

Speed
*Tested on linear printing without feather function
2pass
98㎡/h
Drying Method
Extra Dryer Device
3pass
64㎡/h
Ink Supply Method
Siphon Positive Pressure Ink Supply
4pass
50㎡/h
Head Moisture Method
Auto Head Cleaning and Moisturize
6pass
32㎡/h
Ink Cycle
Auto White ink cycle
Ink Type
Pigment Ink
Transmission
Interface
Gigabit LAN
Computer System
Win7, Win8, Win10
(Professional)
File Forms
TIFF, JPG, EPS, PDF, etc.
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
NeoStampa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

1200*960*1000mm

Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max 3500W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,Memory: 4G, CPU: Intel I5/I7, G-Ethernet



FEATURE

​

* Integrated high power motor, the speed of the carriage to improve the premise of more stable movement.

* No engraving, no plate hollowing out, offset hot stamping printing, easy to use water - based paint.

* Adopt Epson I3200-A1,cost-effective,6pass 10㎡/h, 8pass 8㎡/h.

* The cost of high quality hot stamping is only 5 yuan per piece, which can be achieved in one go with high efficiency.





PRODUCTION STEPS

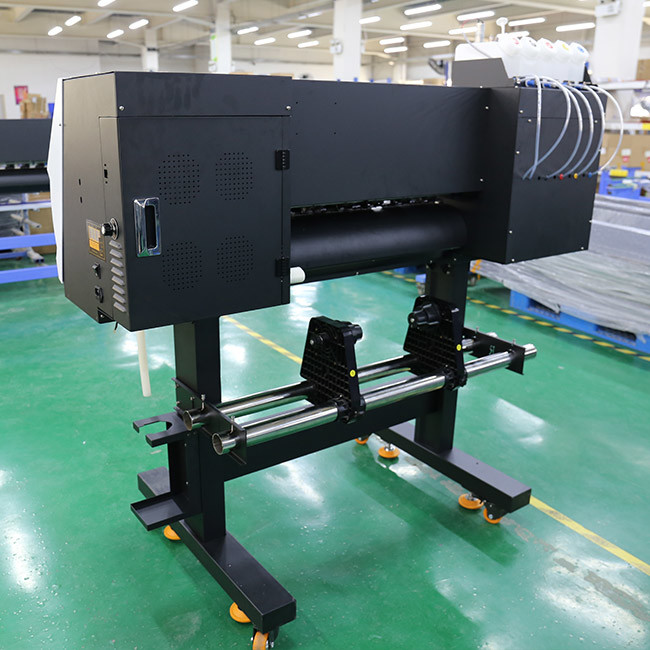

Pyrography Film 2 Heads 60cm Textile Inkjet Printer 0

DETAILS

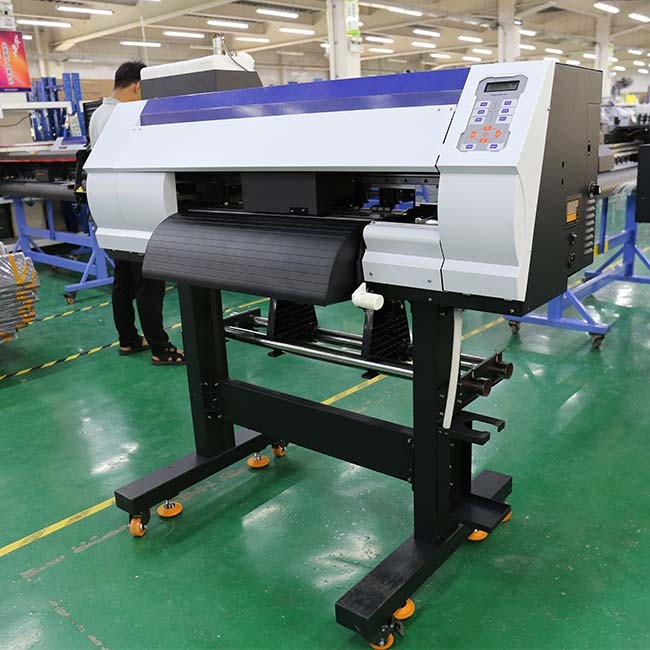

Pyrography Film 2 Heads 60cm Textile Inkjet Printer 1



Drying System:

Intelligent temperature control system, front, middle and back heating.

Carriage:

Adjustable carriage,max height is 5mm.



Pyrography Film 2 Heads 60cm Textile Inkjet Printer 2



Feeding & Take-up System:

A standard Feed&Take-up System.

Pinch Roller:

Multi-row pinch rollers ensure the accurate movement of materials.



Pyrography Film 2 Heads 60cm Textile Inkjet Printer 3



Maintenance Capping Station:

Patented designed maintenance capping station.It's lifted up and down via column driven by motor in the

middle,which greatly maintain the balance of capping comparing the traditional gear drive.

Ink Tank:

Bulk tanks with 3L capacity make sure the continuous ink supply.Sub-tank is to keep all colors at the same level.



APPLICATION

Design for textile printing,It can be used with a shaking power machine,and it can transfer the design to

the dress,shoes,bags and so on.



Pyrography Film 2 Heads 60cm Textile Inkjet Printer 4



SHOW EVENTS

Zhengzhou New Century team had won the reputation of TOP 20 exporters in Advertising Equipment

in China and obtained more than 55 patents for the design&3patents for innovation.And have participated

in many exhibitions at home and abroad.Such as the domestic Zhengzhou exhibition,Shanghai exhibition,

Guangzhou exhibition and so on.Participating abroad is Colombia,New Delhi,Ukraine,Thailand,Italy etc.

No matter you are individual or agent, welcome to joins us !



Pyrography Film 2 Heads 60cm Textile Inkjet Printer 5





OUR SERVICE

  • One year warranty,lifetime maintenance beyond the warranty.

  • Technical training and guidance will be provided by ten technicians who can fly to various countries at any time .

  • More than 2 million yuan  were invested on after-sales every year.

  • Providing remote after-sales service support by online teachnical guidance.

  • Two more QC is added on export machines to guarantee the quality.Strict controlling on leadtime.
