Neostampa CMYK Fedar Sublimation Printer With 8 Heads I3200 A1

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD6198E
Packaging Details Standard Wooden Box
Supply Ability 200 sets per months
Product Details
Head 4720 Or I3200 Head Quantity 8
Material 45-50 Gsm Transfer Paper RIP Software Neostampa
Grade Industrial Level Print Port Network Port
Loading System 1900mm Ink CMYK
Ink Type Sublimation Ink Ink Tank 3L
Warranty 1 Year Motor Leadshine
High Light

Neostampa Fedar Sublimation Printer


8 Heads I3200 A1 Sublimation Printer


CMYK Fedar Sublimation Printer

Leave a Message
Product Description

Fedar Sublimation Printer With 8 Heads I3200 A1

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so on. It prints on

sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic printing and dye sublimation ink make

the pattern colors bright, strong and fantastic.


Fedar FD6198E Sublimation Printer Parameter

sublimation printer Inkjet printers
Epson I3200-A1
Nozzle Quantity
Printhead Quantity
Print Width
Ink Color
Print Height
Media Transfer
Auto Tension Taking-Up Media Device
*Tested on linear printing without feather function
Drying Method
Extra Dryer Device
Ink Supply Method
Siphon Positive Pressure Ink Supply
Head Moisture Method
Auto Head Cleaning and Moisturize
6pass 45㎡/h
Print Media
Transfer Paper
Ink Type
Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System
Win7, Win8, Win10
File Forms
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
Package Size
Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max 3500W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory:4G,CPU: Inte I5/I7, G-Ethernet
Standard Configuration
Ink Level Alarm System



1. Foggy & VSDT Printing
Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable droplet technology, improve printing quality obviously.

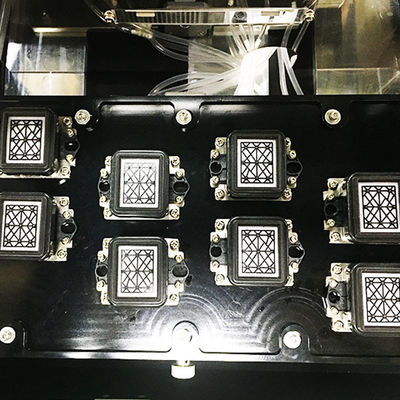

2. Advanced Capping Station
Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the ink flow fluently.

3. Stable Media Feeding and Take-up System
Convenient and fast, the printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function.

4. Two-level Ink Supply System
Adopt two-level ink supply system to ensure continuous printing for a long time.


5. Intelligent Ink Starving Alarm
Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds to add ink in time.


6. Intelligent Air-heat Dryer
The intelligent drying system is synchronized with printing.The temperature can be adjusted in real time during the printing process.


7. Chinese Leadshine Motor
The two-way Leadshine brushless motor has higher accuracy, smaller length error and more stable performance.


Q:Which Printhead Can Used in This Model?

A:Original I3200-A1


Q:Why I3200-A1 head speed is faster than F1440-A1 in Dye Sublimation Printer?


*  Epson I3200-A1 head has 8*400=3200 nozzles/Epson Dx5 head has 8*180=1440 nozzles
Nozzle is more, some time which can print more ink, so speed is faster.
* Printhead Ignition frequency: I3200 A1 --16.7K, Epson Dx5---14.4K
Printhead ignition frequency is single nozzle print times in one second, ignition frequency is higher, print speed will faster.
*  Printhead nozzle dot: I3200 A1 ---3.8pl-6pl-12pl, Epson dx5---3.5pl-6pl-12pl
Little dot can print some detail or smaller picture, which will show best print qaulity, but if only use little dot print, print speed will slow even ignition frequency is higher. So most people will use 3 dots to print model, keep the print quality and let print faster. In this condition, Dx5 and 4720 no much distance.


Fedar Sublimation Printer Detail

Neostampa CMYK Fedar Sublimation Printer With 8 Heads I3200 A1 0


Industrial Application for Fedar Subilimation Printer FD6198E


This model can support print different gsm transfer paper, 45gsm to 100 gsm, and transfer on polyester(contton<30%)

Sportswear, Dress, Shoes, Curtain, Blue paper, etc.

Neostampa CMYK Fedar Sublimation Printer With 8 Heads I3200 A1 1
