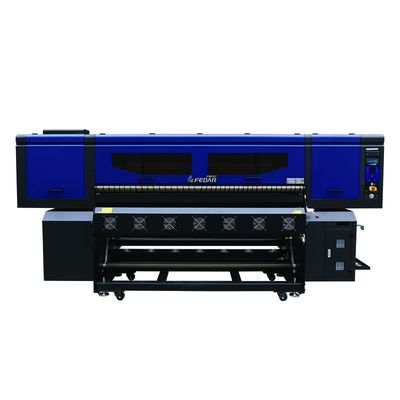

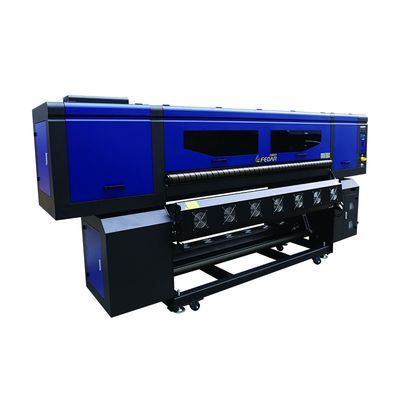

industrial sublimation fabric printing machine

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD6198E
Minimum Order Quantity 1 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Type Epson I3200-A1 Quantity 8 Pcs
Ink Color CMYK Ink Type Dye Sublimation Ink,Pigment Ink
Printing Width 1900mm Printing Height 2-5mm
Computer System Win7,Win10 Media Transfer Paper ,Poster Paper
RIP Software Maintop, Photoprint,Neostampa,Onyx,etc. Warranty 1 Year
Resolution 3200dpi
High Light

CMYK Sublimation Fabric Printing Machine


Fedar Sublimation Fabric Printing Machine

Leave a Message
Product Description
industrial sublimation fabric printing machine
Printer Model
Nozzle Quantity
800*4lines*8 pcs of Epson printheads
Height to Platform
Printing Speed
Production Mode
2pass/360*1200dpi 320sqm/h
Average Mode
4pass/720*1200dpi 260sqm/h
High Resolution Mode
6pass/720*1800dpi 180sqm/h
Dye Sublimation
supply method
Max Printing Width
Printing Media
Transfer Paper
Media Transfer Method
Auto air shaft feeding and take-up system
Drying Method
External Intelligent Heating Blowing drying system
Moisture Mode
Fully sealed auto moisturing and cleaning
RIP Software
Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc.
Image Format
JPG,TIF,PDF,BMP and etc.
WIN7 64bit/WIN10 64bit
Hard disk:500G (system disk more than 100G)
GPU:ATI Discrete
Memory:4G or more
CPU:Intel i5/i7 processor
Transmit Port
Gigabit LAN
Work Environment
Temperature 20-35 centi degree; Humidity 35-65%
Input Voltage
210-230VAC 50/60HZ 16A
Printing system
Drying system
Max power 9000W
Printer Dimension
Packing Dimension
Net Weight
Gross Weight



  • 8 Epson I3200-A1 printhead,2 pass speed can reach up to 260㎡/h.
  • Adopt two-level ink supply system to ensure continuous printing for a long time.
  • Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds to add ink in time.
  • Convenient and fast, the printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function.
  • Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the ink flow fluently.




industrial sublimation fabric printing machine 0


Adopt Epson I3200-A1 printhead with 3200 nozzles which can improve the speed of printing greatly.Variable
dot technology,3 sizes of dots can be generated for smoother gradation vivid colors and sharp images.


industrial sublimation fabric printing machine 1


Maintenance station:

Head maintenance can be done from printer directly without connecting computer.


industrial sublimation fabric printing machine 2



The position of the print head can be adjusted according to different printing medias, and anti-collision devices at both ends.


industrial sublimation fabric printing machine 3


Ink Tank:

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously.


industrial sublimation fabric printing machine 4


Pinch Roller:

US fluororubber pressure roller prevents static electricity.The unique lifting device can respond to the phenomenon

of partial paper bulging during the printing process.


industrial sublimation fabric printing machine 5


Guide Rail:

Using Japanese THK mute linear guide rail, the movement is more stable and the life is longer.


industrial sublimation fabric printing machine 6


Ink Chain:

Imported Germany IGUS ink chain,high quality, to ensure the good completion of printing work.




industrial sublimation fabric printing machine 7

               Sportwear                                     Indoor Decoration                                   Bedding


industrial sublimation fabric printing machine 8

                 Bags                                        Underwear and swimwear                            Socks


Zhengzhou New Century team had won the reputation of TOP 20 exporters in Advertising Equipment in China

and obtained more than 55 patents for the design&3patents for innovation.And have participated in many exhibitions

at home and abroad.Such as the domestic Zhengzhou exhibition,Shanghai exhibition,Guangzhou exhibition and

so on.Participating abroad is Colombia,New Delhi,Ukraine,Thailand,Italy etc.No matter you are individual or agent,

welcome to joins us !

industrial sublimation fabric printing machine 9


  • One year warranty,lifetime maintenance beyond the warranty.

  • Technical training and guidance will be provided by ten technicians who can fly to various countries at any time .

  • More than 2 million yuan were invested on after-sales every year.

  • Providing remote after-sales service support by online teachnical guidance.

  • Two more QC is added on export machines to guarantee the quality.Strict controlling on leadtime.
