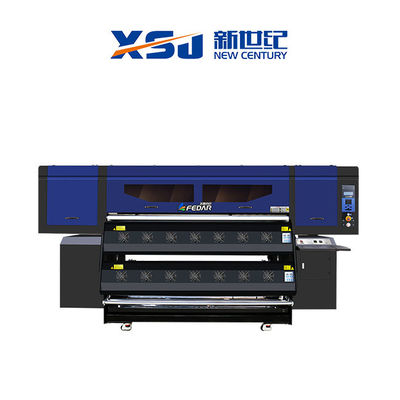

Home Textile 8 Heads Dx5 Fedar Sublimation Printer

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD6198E
Minimum Order Quantity 1 Set
Price USD13000-15000/SET
Packaging Details Standard Wooden Box
Delivery Time 10-15 DAYS
Payment Terms T/T, D/P, D/A, L/C
Supply Ability 100 sets per months
Product Details
Head Dx5 Or 4720 Or I3200 Head Quantity 6 Or 8
Material 45 Gsm Transfer Paper RIP Software Neostampa, Photoprint, Ergosoft
Type Heavy Duty Industry Inkjet Printer Print Port Ethernet WLAN Port
Loading System 2000m Print Width 1.9m
Application Sports Wear, Home Textile, Bed Sheet Printing
High Light

8 Heads Dx5 Sublimation Printer


Dx5 Fedar Sublimation Printer


Home Textile Fedar Sublimation Printer

Leave a Message
Product Description

Dye Sublimation transfer paper Printer Fedar FD6198E with 6 and 8 heads


Fedar 6 head 8 head Sublimation Inkjet Printer for transfer paper printing
Printhead Epson4720 Nozzle Quantity 3200
Printhead Quantity 8(*6 is optical) Print Width 1900mm
Ink Color CMYK Print Height 2-5mm
Resolution 360*1200/360*1800/
Media Transfer Auto Media Feeding and
Taking-up System, Roll to Roll
*Tested on linear printing without feather function
2pass 300㎡/h Drying Method Extra Dryer Device
4pass 200㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
6pass 150㎡/h Head Moisture
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function
Print Media Transfer Paper
Ink Type Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System Win7, Win8, Win10 File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃, Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Package Size 3900*1340*1920mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.9000W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard Configuration Ink Level Alarm System


Home Textile 8 Heads Dx5 Fedar Sublimation Printer 0

Why choose FD6198E model?


1. Independent R D double heads split & joint adjustment. Let heads vertical calibration is easy and convenient.

    Printing heads height can be adjust 2~10mm adopting different materials thickness.


2. Original import from Japan THK guide line can keep high precision, low noise and long time service life.

3. Both servo and step motor using brushless DC motor. High precision drive linearly decoded,

   lower deviation and run more stable.

Home Textile 8 Heads Dx5 Fedar Sublimation Printer 1

Home Textile 8 Heads Dx5 Fedar Sublimation Printer 2



1. Add Anti-Collision protect operator’s hand and avoid heads connect with papers, to pro-long heads service life.


2. Industrial taking up media and feeding media motor.


3. The precision of printing table are controlled within ± 0.075mm. Make basical for high presison and quality printing.


4. Stronger aluminum beam and ensure print resolution.


5. VSDT variable dot technology can let heads choose different resolution for different quality photos achieve perfect printing.


6. Support 45 gsm transfer paper printing solution.




New Application for this Fedar FD6198E


This model can support print different gsm transfer paper, 45gsm to 100 gsm, and transfer on polyester

(contton<30%),which is a good choice on home textile, garment printing.


Home Textile 8 Heads Dx5 Fedar Sublimation Printer 3
