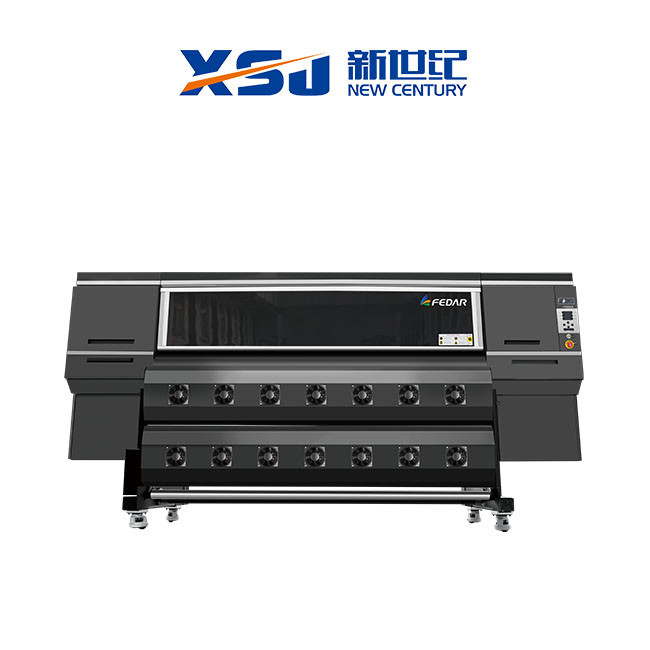

Four Heads 3200dpi Sublimation Paper Printing Machine FD6194E

Place of Origin China
Brand Name FEDAR
Certification CE
Model Number FD6194E-3200
Minimum Order Quantity 1 set
Price USD 16000USD SET
Packaging Details Wooden case
Delivery Time 7 WORK DAYS
Payment Terms T/T, L/C, D/P, , Western Union, MoneyGram
Supply Ability 50+SET+MONTH
Product Details
Print Head 4720 Print Head Quantity 4
Application 1000m Transfer Paper(20-100g) Print Width 1.9m
Ink Dye Sublimation Ink/Pigment Ink/Water-based Indoor Ink Color CMYK
Rip Software Maintop, Photoprint,ONYX Image Format JPG,TIFF,EPS,PDF,PNG Etc
Resolution 3200dpi
High Light

Sublimation Paper Printing Machine FD6194E


3200dpi Sublimation Paper Printing Machine


Four Heads 3200dpi Sublimation Printer

Leave a Message
Product Description

Heavy Duty Four heads Sublimation FD6194E Transfer Paper Printing Machine

Technical Parameters
Printhead Epson4720 Nozzle Quantity 3200
Printhead Quantity 4 Print Width 1900mm
Ink Color CMYK Print Height 2-5mm
Resolution 360*1200/360*1800/
Media Transfer Auto Media Feeding and
Taking-up System, Roll to Roll
*Tested on linear printing without feather function
2pass 150㎡/h Drying Method Extra Dryer Device
4pass 110㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
6pass 90㎡/h Head Moisture
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function
Print Media Transfer Paper
Ink Type Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System Win7, Win8, Win10 File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃, Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Package Size 3458*1150*1780mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.7000W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard Configuration Ink Level Alarm System



Four Heads 3200dpi Sublimation Paper Printing Machine FD6194E 0


1. The precision of printing table are controlled within ± 0.075mm. Make basical for high presison and quality printing.

2. It can protect operator’s hand and avoid heads connect with papers, to pro-long heads service life.

3. Independent R D double heads split & joint adjustment. Let heads vertical calibration is easy and convenient.

   Printing heads height can be adjust 2~10mm adopting different materials thickness.

4. The capping station is imported from overseas to ensure its reliability and permanence.

   It can protect and clean head efficiently and conveniently. It can clean head, moisturize and pump ink Full automatically.

  Keep ink supply system work fluently.



1. Original import from Japan THK guide line can keep high precision, low noise and long time service life.

Four Heads 3200dpi Sublimation Paper Printing Machine FD6194E 1

2. Equipped high speed fiber to replace traditional data cables between main board and printing board.

   This will be faster and stable during printer working.

Four Heads 3200dpi Sublimation Paper Printing Machine FD6194E 2

3. Keep inks supply height the same during printing and let heads have constant inkjet pressure.

   Can keep printers work more stable. 4pcs 1.5L huge, impendent ink tank and supply inks continuously.

Four Heads 3200dpi Sublimation Paper Printing Machine FD6194E 3


4. Independent R D infrared and drying fans can dry printing materials in short time.

Four Heads 3200dpi Sublimation Paper Printing Machine FD6194E 4
