Fedar TC1946 Digital Textile Sublimation Printer For Fabric

Place of Origin China
Brand Name Fedar
Certification CE
Model Number TC1943/4/6
Minimum Order Quantity 5 Set
Packaging Details Wooden Crate
Supply Ability 200 sets per months
Product Details
Head I3200-A1 Heads RIP Software Neostampa, Photoprint
Ink Type Sublimation Ink, Water Based Pigment Ink Motor Leadshine
Print Height 2-5mm Color CMYK 4 Colors
Print Width 1900mm
High Light

TC1946 Textile Sublimation Printer


Fedar Textile Sublimation Printer


TC1946 sublimation fabric printing machine

Leave a Message
Product Description

Fedar TC1946 Digital Textile Sublimation Printer

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and

so on. It prints on sublimation papers first, then heat transfer the pattern to the fabric you want.


Digital Textile Sublimation Printer Parameter


Model TC1944
Printhead Type EPSON I3200-A1
Nozzle Qty 4pcs printheads
Height to Platform 2-5mm
Printing Speed 2pass 170sqm/h
3pass 110sqm/h
4pass 85sqm/h
Ink Color C M Y K
Type Dye Sublimation
supply method Siphoning
Max Printing Width 1900mm
Printing Media Transfer Paper
Media Transfer Method Dual-drive tension take-up system,Auto air shaft feeding system
Drying Method External,Intelligent and air-heat Integrated drying system
Moisture Mode Fully sealed auto moisturing and cleaning
RIP Software Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc.
Image Format JPG,TIF,PDF,BMP and etc.
Computer System WIN7 64bit/WIN10 64bit
Hardware Hard disk:500G (system disk more than 100G)
GPU:ATI Discrete
Memory:4G or more
CPU:Intel i5/i7 processor
Transmit Port Gigabit LAN
Work Environment Temperature 20-35 centi degree; Humidity 35-65%
Power Input Voltage 210-230VAC 50/60HZ 16A
Printing system 1000W
Drying system Max power 5500W
Dimension Printer Dimension 3070*1550*962mm
Packing Dimension 3380*1030*1790mm


FEDAR Micropiezo Wide Format Sublimation Printer Impressoras Plotter Feature

1. Two stage ink supply system is adopted to ensure the quality of picture output

2. Using international high-end software, the drawing is more realistic and the reducibility is better.

3. Bi directional lesai brushless motor, high precision driving, linear decoding, higher precision, smaller

length error, more stable performance.

4. Intelligent ink shortage alarm: intelligent ink shortage reminder can reduce the tedious of frequently

checking the ink allowance, and remind to add ink in time to ensure the continuity of printing work.

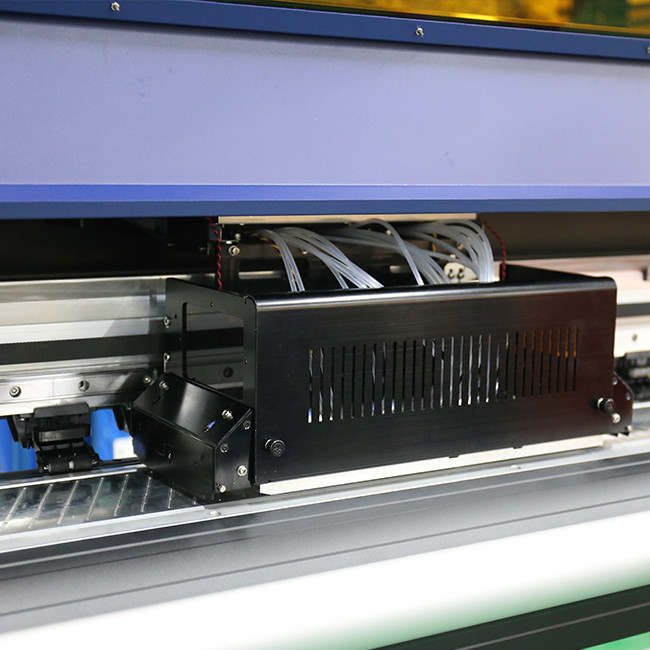

5.Print heads Fedar TC1944 Digital Textile Sublimation Printer Adopt Four EPSON I3200-A1 print head,as

your request.price is different. variable dots technology 180 nozzles for every color, Max Resulution 3200 DPI.

Max Printing Speed: 85Sqm/H

6.The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials.

7.Intelligent ink shortage system reminding, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.

8.Digital Textile Sublimation Printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.

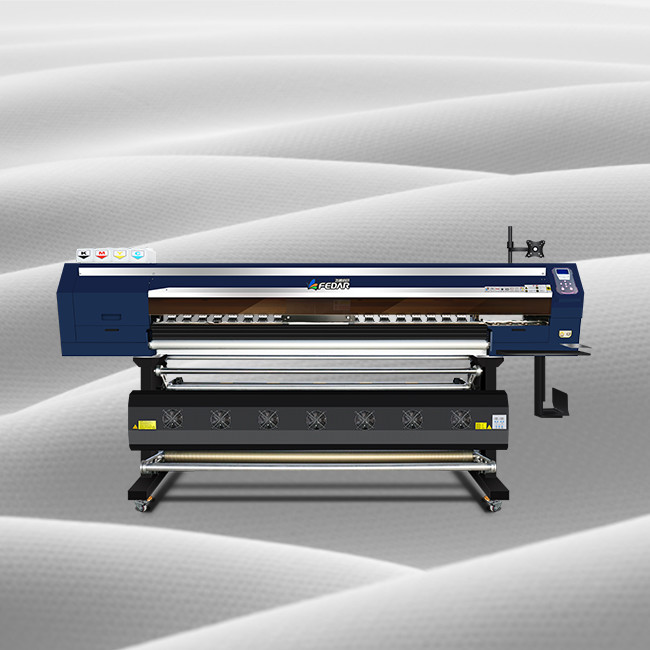

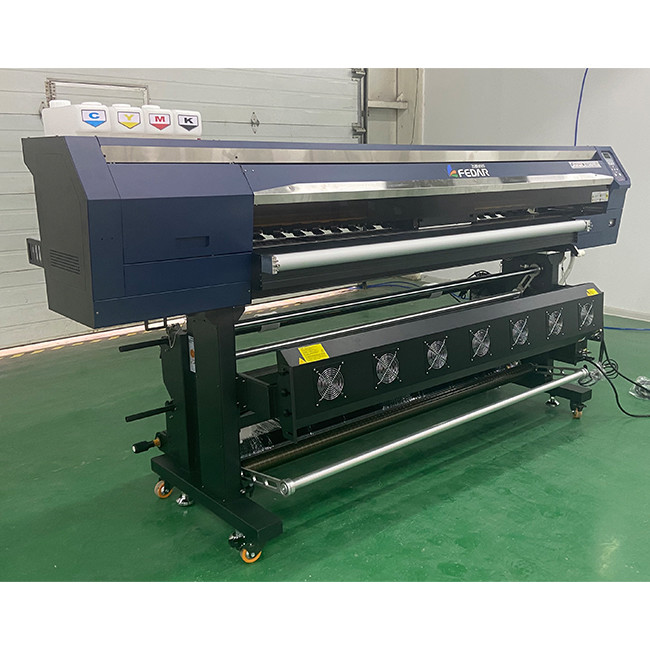

Fedar TC1946 Digital Textile Sublimation Printer For Fabric 0


Fedar Printer Application

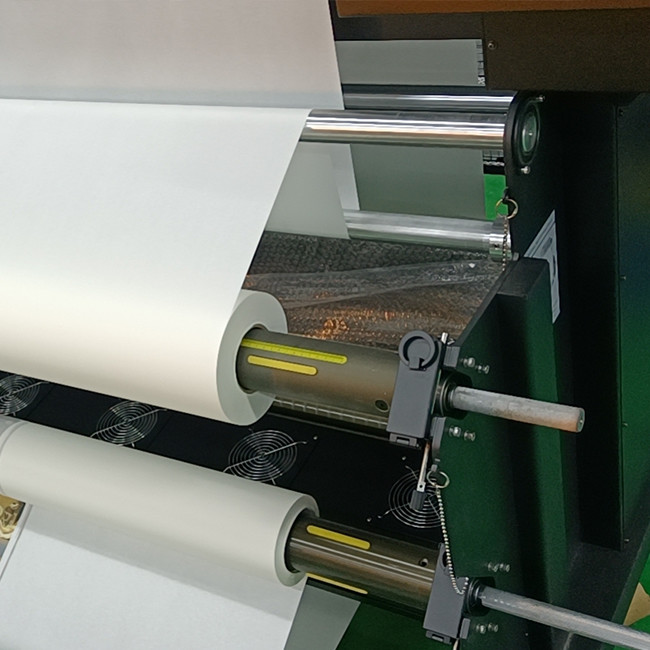

Fedar TC1946 Digital Textile Sublimation Printer For Fabric 1
