Fedar Sublimation Transfer Paper Printing Machine For T Shirt

Place of Origin CHINA
Brand Name FEDAR
Certification CE
Model Number FD65-2
Minimum Order Quantity 2 Set
Price USD8000-10000/SET
Packaging Details EXPORT CRATE
Delivery Time 7-10 DAYS
Payment Terms T/T
Supply Ability 20 SETS PER DAY
Product Details
Print Head I3200-A1 Max Printing Width 60cm
Head Quantity 2 Heads Usage Pyrograph Film Printing
Color CMYK + W Type Fedar Sublimation Printer
Rip Software Maintop Ink Type Pigment Ink / Paint Ink
Application T Shirt, Colored Fabric Resolution 3200dpi
Warranty 12 Months
High Light

Sublimation Transfer Paper Printing Machine

,

Fedar Transfer Paper Printing Machine

,

3200dpi Transfer Paper Printing Machine

Leave a Message
Product Description

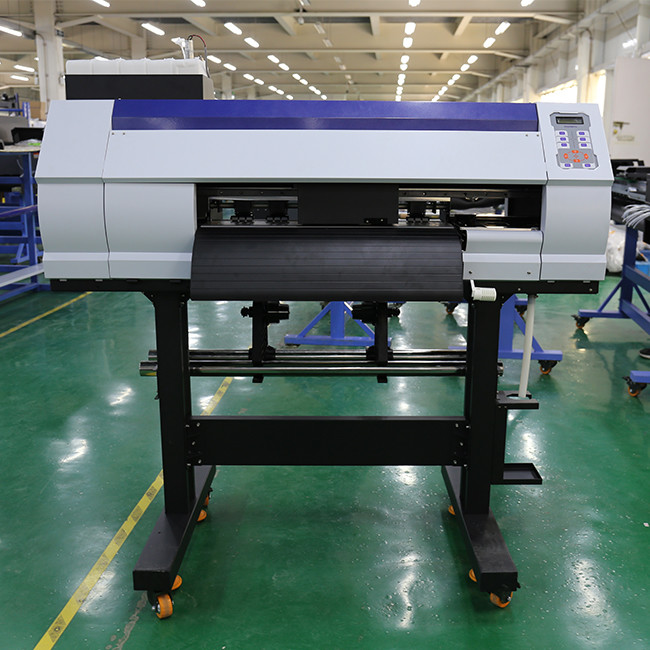

FEDAR FD65-2 T-Shirt Sublimation Transfer Paper Printing Machine

Your transfer paintings need better films------no matter how large the ink printing volume is, printing twice the

maximum inkvolume(200% ink volume)will not cause the ink to melt,the ink aborption effect is excellent, and

the film layer is not sticky,which is the market Highly cost-effect film.



FD65-2 T-Shirt Sublimation Transfer Paper Printing Machine Parameter

FD65-2 Heat Transfer Film Printer
Printhead
Epson I3200-A1
Nozzle Quantity
3200
Printhead Quantity
2
Print Width
600mm
Ink Color
CMYK+W Pigment Ink
Print Height
2-5mm
Resolution
360*1200/360*1800/
720*1200/720*1800(DPI)
Media
Pyrograph Film

Speed
*Tested on linear printing without feather function
2pass
98㎡/h
Drying Method
Extra Dryer Device
3pass
64㎡/h
Ink Supply Method
Siphon Positive Pressure Ink Supply
4pass
50㎡/h
Head Moisture Method
Auto Head Cleaning and Moisturize
6pass
32㎡/h
Ink Cycle
Auto White ink cycle
Ink Type
Pigment Ink
Transmission
Interface
Gigabit LAN
Computer System
Win7, Win8, Win10
(Professional)
File Forms
TIFF, JPG, EPS, PDF, etc.
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
NeoStampa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

1200*960*1000mm

Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max 3500W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,Memory: 4G, CPU: Intel I5/I7, G-Ethernet




FEDAR FD65-2 T-Shirt Sublimation Transfer Paper Printer Feature

1. Adopt water based pigment ink , EPS4720 printhead, lower cost and higher performance.

2. Multi-row pinch rollers made of Dupont rubber, ensure the media moving without wrinkle.

3. Namebrand JapanTHK linear guide rail makes carriage movement smooth and low noise.

4. Two 4720 head printing, one head prints color ink and the other head prints white ink at same time.

5. High Cost Performance and Ethernet Data Transmission port.

6. Support calibration settings export and import, more convinient on operation and service.





Detail

Fedar Sublimation Transfer Paper Printing Machine For T Shirt 0



Comparing with traditional transfer printing, the new solution is more simple on operation, no need cut patterns

along with pattern edge  after printing, pattern can be tranfered on fabric directly after printing.

1, The printer is specially designed for pyrograph film printing,and used for fabric tranfer printing.
2,  Applicable on different texture fabric and different color fabric.
3, Hot melt powder is
recyclable, powder will be shaked onto pyrograph film and fixed at a time.
4, Bulk Ink Supply System, there is stirrer inside white ink tank to prevent ink sediment.

Fedar Sublimation Transfer Paper Printing Machine For T Shirt 1

Application

Fedar Sublimation Transfer Paper Printing Machine For T Shirt 2



FAQ

Q: I don't know your website well, how can I trust you?

A: Zhengzhou New Century Digital Technology Co., Ltd has launched online business for selling Eco Solvent

Printer, Solvent Printer, UV Printer, Digital Textile Printer almost 15 years and established customers over 168

countries and areas. We are the Gold Supplier of Alibaba almost 13years, and the verified user of PayPal as

well as approved by SGS certification.

Q: How can I know if it is paid successfully?

A: We will send you a payment confirmation email upon receiving your payment

Q: How long can I receive the items?

A: Normally speaking, we will spend 5-7 days to prepare the order and if it requires longer time, we will inform

you as soon as possible. The general shipping time will be 15 - 30 days by seacargo.

Q: How to receive my order? Is it safe during shipping?

A: For the items you purchased, we will arrange shipping by sea or international express delivery to ship and

usually the carriers are DHL, FedEx, TNT, and UPS. It shall be quite safe during shipping by sea or air. Additionally,

we will purchase insurance as a guarantee for your order.

Q: How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?

A: We will send you the Bill of Lading or tracking number after shipping your items, hereby please keep on checking

your email.

Q: What is Warranty Policy

A: We provide 15 months warranty. During the warranty if electronic parts or motor is faulty, our company will give you

replacing parts for free and help you to change the faulty parts. When the warranty expired, our company will still

give you technician support for free. The only difference is the replacing part no longer free. So, we provide lifelong

after sale service to you as long as you use our printer. Especially, you can gain the lifelong Warranty for your large

format digital inkjet printer with continuously ink order.

All products on our website are made by the best manufacturers in China and the quality is guaranteed by the China

Ink-jet Printing Association. Although low cost products are the most popular, but our products are selected with high

quality and high production standards and affordable price. We can supply assembly spare parts with every machine

and guarantee their functioning for at least 12 months.
