Fedar Micropiezo Wide Format Sublimation Printer 1.9m

Place of Origin China
Brand Name Fedar
Certification CE
Model Number TC1946
Minimum Order Quantity 5 Set
Packaging Details Wooden Crate
Supply Ability 200 sets per months
Product Details
Usage Transfer Paper Head EPS I3200-A1
RIP Software Neostampa, Photoprint Ink Type Sublimation Ink, Water Based Pigment Ink
Warranty 1 Year Motor Leadshine
High Light

Micropiezo Wide Format Sublimation Printer


1.9m Wide Format Sublimation Printer


Fedar Wide Format Sublimation Printer

Leave a Message
Product Description

1.9m FEDAR Micropiezo Wide Format Sublimation Printer Impressoras Plotter

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and

so on. It prints on sublimation papers first, then heat transfer the pattern to the fabric you want.


How Does Sublimation Printer Work?

* So how does sublimation printing work? After you have chosen your design, you should use a sublimation

printer to print it out onto the special paper.

* You will have to use a transfer paper (usually sublimation paper) so that the design transfers onto the fabric.

Bringing the ink and the fabric together, the ink is embedded and therefore will remain more vibrant for longer

(in comparison to other printing processes). The heat in the press or the oven opens the fabric’s pores up, whilst

the pressure that’s put onto the fabric cools the ink down – turning it into a solid form.

Fedar Micropiezo Wide Format Sublimation Printer 1.9m 0


1.9m FEDAR Micropiezo Wide Format Sublimation Printer Parameter


Model TC1944
Printhead Type EPSON I3200-A1
Nozzle Qty 4pcs printheads
Height to Platform 2-5mm
Printing Speed 2pass 170sqm/h
3pass 110sqm/h
4pass 85sqm/h
Ink Color C M Y K
Type Dye Sublimation

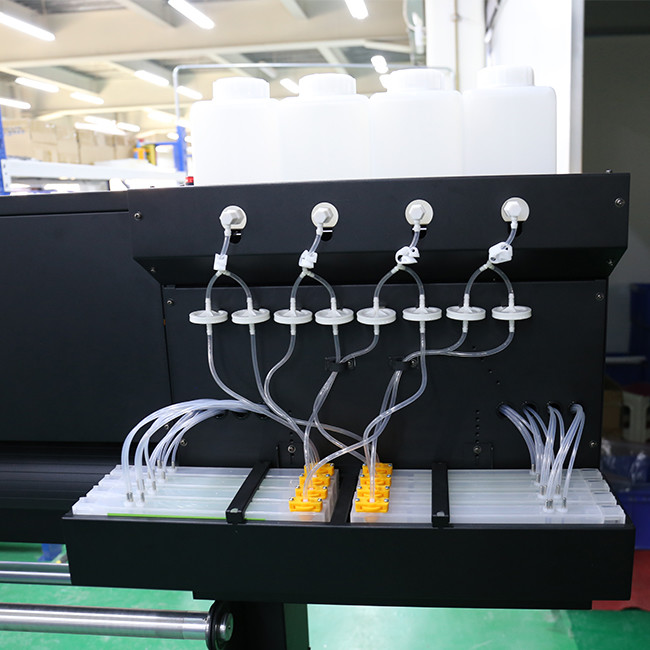

supply method Siphoning
Max Printing Width 1900mm
Printing Media Transfer Paper

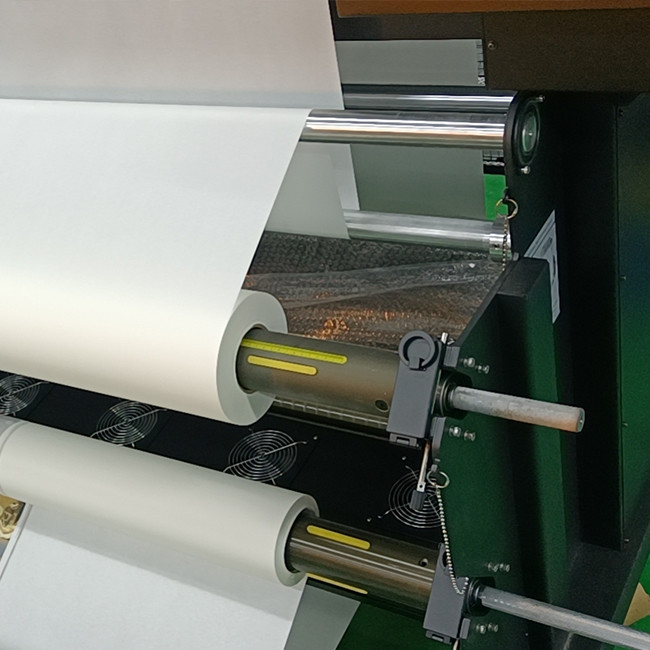

Media Transfer Method Dual-drive tension take-up system,Auto air shaft feeding system
Drying Method External,Intelligent and air-heat Integrated drying system
Moisture Mode Fully sealed auto moisturing and cleaning
RIP Software Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc.
Image Format JPG,TIF,PDF,BMP and etc.
Computer System WIN7 64bit/WIN10 64bit
Hardware Hard disk:500G (system disk more than 100G)
GPU:ATI Discrete
Memory:4G or more
CPU:Intel i5/i7 processor
Transmit Port Gigabit LAN
Work Environment Temperature 20-35 centi degree; Humidity 35-65%
Power Input Voltage 210-230VAC 50/60HZ 16A
Printing system 1000W
Drying system Max power 5500W
Dimension Printer Dimension 3070*1550*962mm
Packing Dimension 3380*1030*1790mm


FEDAR Micropiezo Wide Format Sublimation Printer Impressoras Plotter Feature

Fedar Micropiezo Wide Format Sublimation Printer 1.9m 1

1. Japanese THK silent linear guide rail is adopted to make the carriage move more smoothly and have longer service life.

2. EPS i3200-a1 print head adopts TFP technology, the minimum droplet is 2.5pl, and the variable dot technology,

which can be used for printing,ensure perfect high resolution printing performance.

3. The platform is made of 8mm aluminum alloy to reduce the shape variation during transportation.

4. Specially designed pinch roll ensures more accurate media movement.

5. Leshine server motor drive, high resolution, good stability.


Fedar Printer Application

With help of heat transfer machine,printed images can be transferred to many different non-elastic material,

such as polyester and flag banner. No limit on the patterns makes it a good choice in decoration, garment and

advertising field.

Fedar Micropiezo Wide Format Sublimation Printer 1.9m 2
