FEDAR Manufacture 3.2m Sublimation Textile Printer Multifunctional

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD5328E
Minimum Order Quantity 5 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Type Epson I3200-A1 Quantity 8
Print Width 3200mm Ink Sublimation Ink
RIP Software Maintop,Photoprint,Neostampa,Onyx,etc Media Transfer Paper

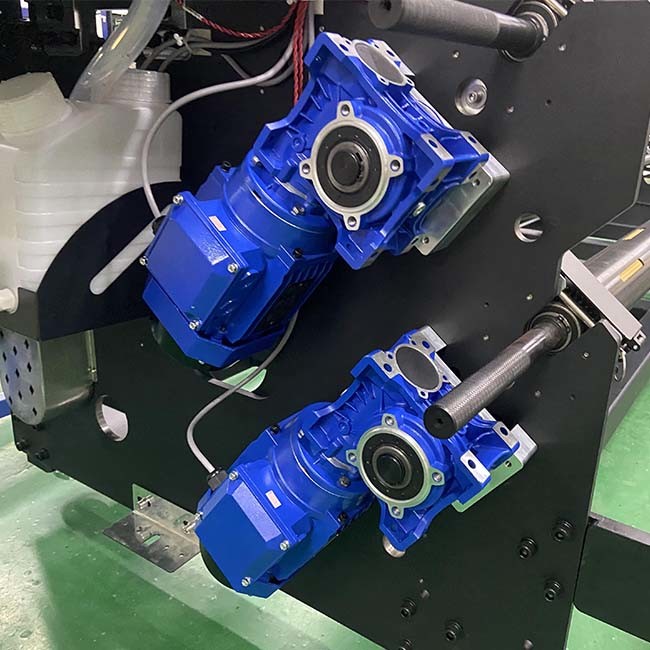

Configuration Ink Level Alarm System, Air Shaft Feeding And Taking-up Media System
High Light

3.2m Sublimation Textile Printer


Multifunctional Sublimation Textile Printer


3.2m sublimation fabric printing machine

Leave a Message
Product Description

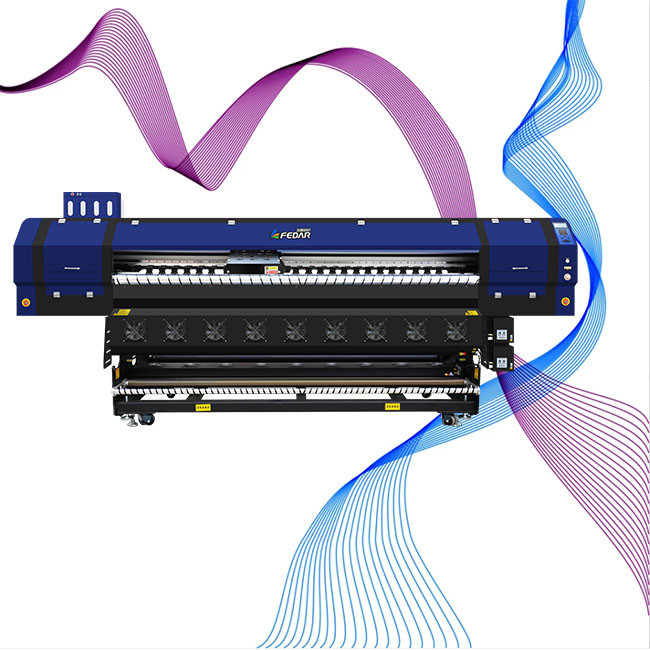

FEDAR Manufacture 3.2m Multifunctional Sublimation Textile Printer

Our sublimation printer is used for make textile products, such as blanket, polyester dress, plush toys and

so on. It prints on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic

printing and dye sublimation ink make the pattern colors bright, strong and fantastic.


FEDAR Multifunctional Sublimation Textile Printer Parameter

FD5328E Fedar Transfer Printing Printer
Type:8 pcs Epson I3200-A1 Micropiezo Printhead
Head Property:Auto-clean and moisturize
Tested on linear print without feather
1 pass 420sqm/h
2 pass 210sqm/h
Printing Width
Sublimation Ink Color:CMYK
Moisture Mode:Auto-capping Pump Moisture
Transfer Paper
RIP Software
Image Format
Computer System
Win7, Win8, Win10
Transmit Port
Gigabit LAN
Extra Dryer Device

Computer Hardware Configuration
Hard Disk: NTFS, C Disk Space: More than 100G,
HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory:4G,CPU: Inte I5/I7, G-Ethernet
Ink Level Alarm System, Air Shaft Feeding and Taking-up Media System
Work Environment
Temperature:25-35℃ Humidity:35-65%
210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max 3500W

Multifunctional Digital Sublimation Textile Printer Feature


Fedar FD5328E Large Format Dye Sublimation Printer uses Four Epson original I3200-A1 printing heads. Its nozzle has 4 pairs of nozzle holes, a total of 8 columns, each column has 400 nozzle holes, that is totally including 3200 nozzle holes, max resolution: 3200DPI. The printing speed can be more than 120㎡/h, It uses TFP thin film piezoelectric technology and 2.5PL variable dot ink drop function, accurately positioning the ink drop, the image color layer is richer and fuller, and the printing effect is more exquisite.

2.Capping Station:

Equipped with advanced intelligent printhead cleaning and moisturizing device, it provides safe and convenient printhead cleaning and maintenance functions,which can also pump ink well and keep the ink flow fluently.

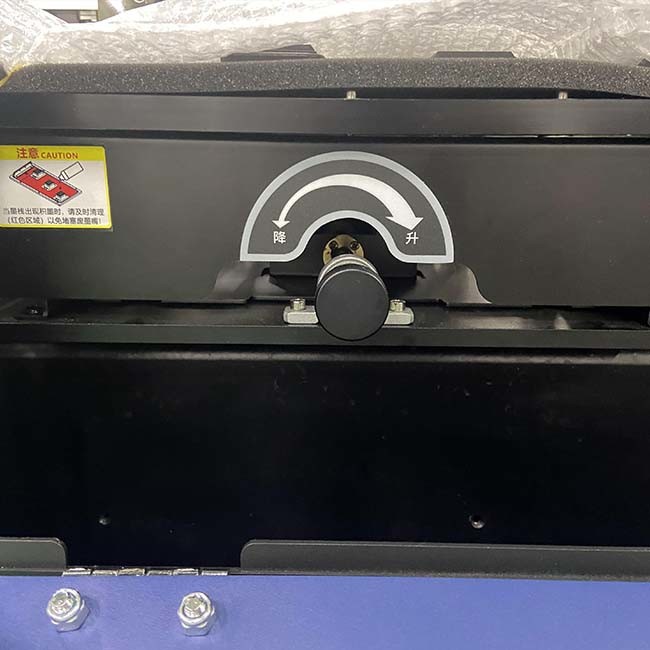

The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

4.Intelligent Ink Starving Alarm:

Intelligent ink deficiency alert reduces the tediousness of frequently checking ink margin, and promptly reminds to add ink to ensure the continuity of printing work.

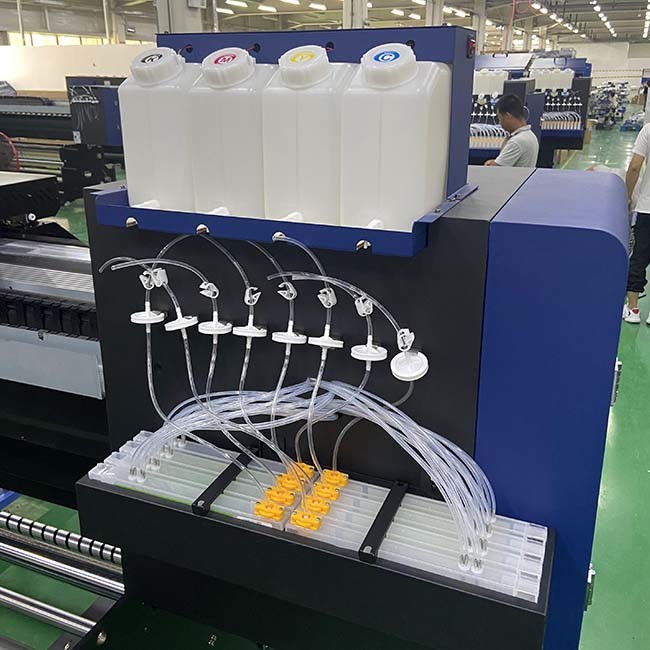

5.Ink Tank:

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which guarantees the long-term continuity of ink output,and keep wide format high-speed printing wonderfully.

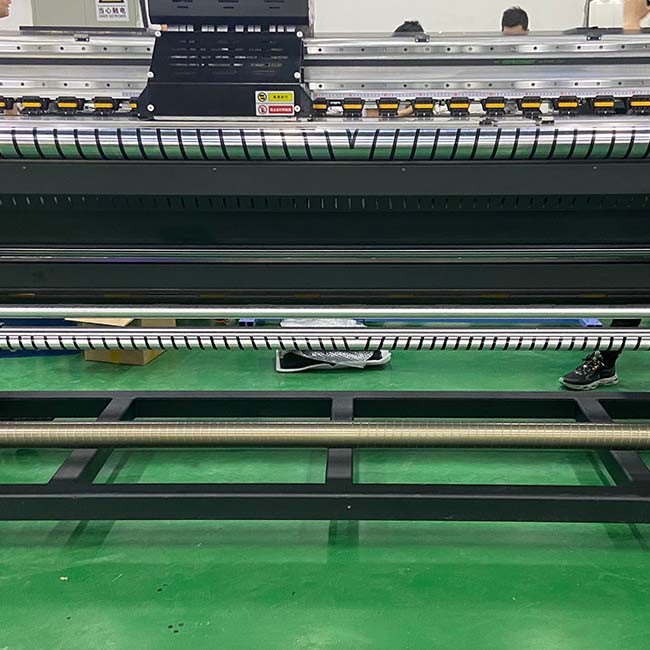

FEDAR Sublimation Textile Printer Detail

FEDAR Manufacture 3.2m Sublimation Textile Printer Multifunctional 0


Digital Inkjet Printing Machine Application


FEDAR Manufacture 3.2m Sublimation Textile Printer Multifunctional 1


FEDAR Manufacture 3.2m Sublimation Textile Printer Multifunctional 2
