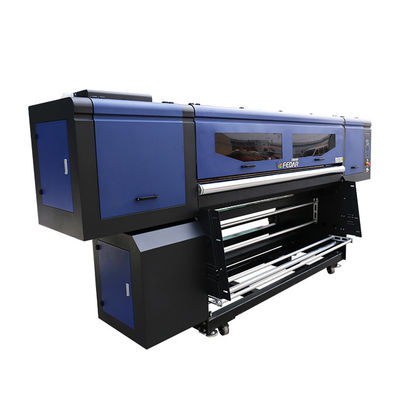

Fedar FD6198E 2000m Sublimation Paper Printing Machine
|Head||I3200 - A1||Head Quantity||6 Or 8|
|RIP Software||Neostampa, Photoprint, Ergosoft||Print Port||Ethernet WLAN Port|
|Ink Type||Sublimation Ink, Water Based Pigment Ink||Print Width||1.9m|
|Warranty||1 Year||Application||Sports Wear, Home Textile, Bed Sheet Printing|
|Printable Media||Mainly For Transfer Paper||Type||Inkjet Printer Printing Machine|
FD6198E Sublimation Paper Printing Machine,
2000m Sublimation Paper Printing Machine,
Fedar FD6198E Sublimation printer
Fedar Digital Inkjet Printing Machine For Transfer Paper Printing
Core Component: Printhead
1. Orignal I3200 Printhead from Japan
Why I3200 head is widely used on sublimation field rather than DX5?
1. Epson I3200 printhead has 8*400=3200 nozzles / Epson Dx5 head has 8*180=1440 nozzles
More nozzles mean higher speed.
2. Printhead Ignition frequency: Epson I3200--16.7K, Epson Dx5---14.4K
Ignition frequency means the dots sprayed from nozzles on media at unit interval time. Higher ignition
frequency means faster speed.
3. Printhead nozzle dot: Epson I 3200---3.8pl-7pl-12pl, Epson dx5---3.5pl-6pl-12pl
Smaller dots can accumulate and form more different sizes of droplets and generate more gradation.
4. Electronic board
Electronic boards greatly determine the printing speed and printer stability, AT boards are used on Fedar
printer for many years, excellent stability has won the favor from global customers.
|Fedar Digital Inkjet Printing Machine For Transfer Paper Printing|
|Printhead||Epson i3200||Nozzle Quantity||3200|
|Printhead Quantity||8(*6 is optical)||Print Width||1900mm|
|Ink Color||CMYK||Print Height||2-5mm|
|Media Transfer||Auto Media Feeding and
Taking-up System, Roll to Roll
*Tested on linear printing without feather function
|2pass||300㎡/h||Drying Method||Extra Dryer Device|
|4pass||200㎡/h||Ink Supply Method||Siphon Positive Pressure Ink Supply|
|Auto Head Cleaning and Moisturize|
|*speed is tested on full-size media
without feather function
|Print Media||Transfer Paper|
|Ink Type||Sublimation Ink,
Water based Pigment Ink
|Computer System||Win7, Win8, Win10||File Forms||TIFF, JPG, EPS, PDF, etc.|
|Operate Environment||Temp.:15℃-30℃, Humidity: 35℃-65℃||RIP Software||NeoStanpa,Ergosoft,
|Package Size||3900*1340*1920mm||Power Supply||210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.9000W
|Computer Configuration||Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
|Standard Configuration||Ink Level Alarm System|
Why FD6198E Model is Popular?
1. Max load 2000m tranfer paper with inflatable roller
2. Industrial integrated body design, which looks more robust and keeps the stability of printer during high
speed movement of carriage.
3. Whole integrated body design, providing print resolution and stability.
1. Add Anti-Collision system to protect printhead.
2. Industrial taking up media and feeding media motor.
3. Adopt double THK guide rail on transfer paper printing machine
4. Stronger aluminum beam and ensure print resolution.
5. Tidy connect wires design, which is more easier to do maintenance.
6. Support 45 gsm transfer paper printing solution.
This model can support print different gsm transfer paper, 45gsm to 100 gsm, and transfer on polyester
(contton<30%),which is a good choice on home textile, garment printing.
