Fedar FD5196E 3200DPI Digital Inkjet Printing Machine
|Printhead Type||Epson I3200-A1||Quantity||6 Pcs|
|Printhead Resolution||3200DPI||Printing Speed||200Sqm/h|
|Print Width||1900mm||Ink||Dye Ublimation Ink,Pigment Ink|
|Media||Transfer Paper,Poster Paper||RIP Software||Maintop,Photoprint,Neostampa,Onyx,etc|
Fedar FD5196E Inkjet Printing Machine,
3200DPI Digital Inkjet Printing Machine,
Pigment Ink Inkjet Printing Machine

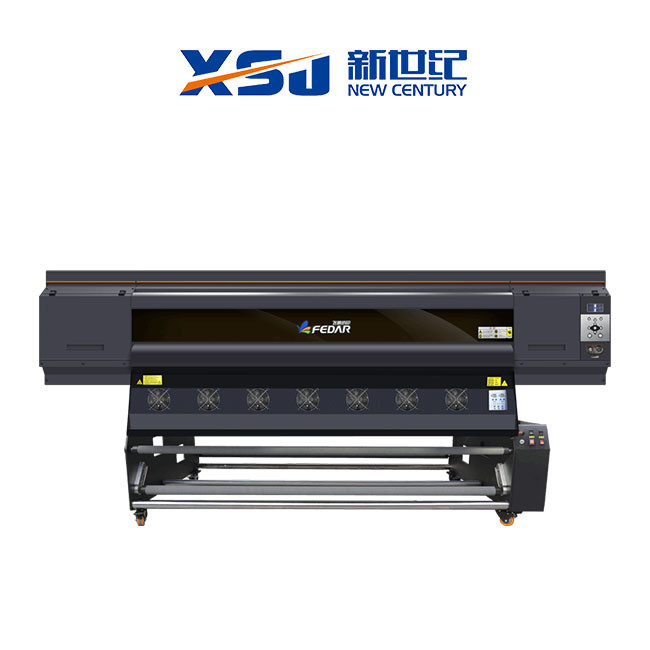

Fedar FD5196E Digital Inkjet Printing Machine
Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so on. It prints on
sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic printing and dye sublimation ink make
the pattern colors bright, strong and fantastic.
About printhead, it can be Epson 5113, Epson I3200-A1 and Epson F1440-A1.
Digital Inkjet Printing Machine Parameters
Digital Inkjet Printer Feaure
High Precision Printhead:Adopt Epson I3200-A1 with 3200 nozzles,which can improve the printing speed greatly.
High-end Software:Using international high-end software, the drawing is more realistic.
Intelligent Ink Starving Alarm:Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds to add ink in time to ensure the continuity of printing work.
Intelligent Foggy Printing & VSDT Printing:Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable droplet techonology, improve printing quality obviously.
Using Advanced Capping Station:Equipped with advanced intelligent printhead cleaning and moisturizing device, providing safe and convenient printhead cleaning and maintenance functions, more convenient operation and maintenance.
Stable Media Feeding and Take-up System:Convenient and fast, the printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function,the consumables are warped, printing is automatically paused to prevent scratching the printhead.
Fedar FD5196E Detail
1. Capping Station:
Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well
and keep the ink flow fluently.

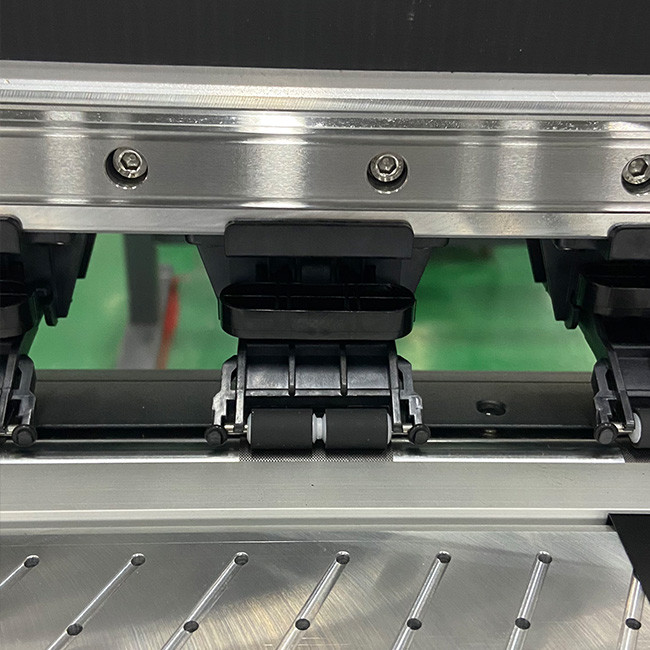

2. Guide Rail:
Using Japanese THK mute linear guide rail,the movement is more stable and the life is longer.
The X and Y direction both use Leadshine servo motor which ensure the stable and durable.
Three ways heating system,front,middle and back individual,improve the printing quality.
5.Feed & Take up System:
Industrial taking-up media and feeding media motor.

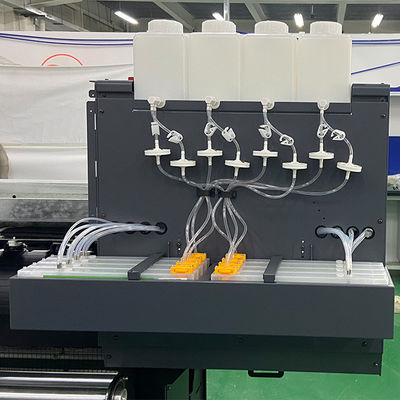

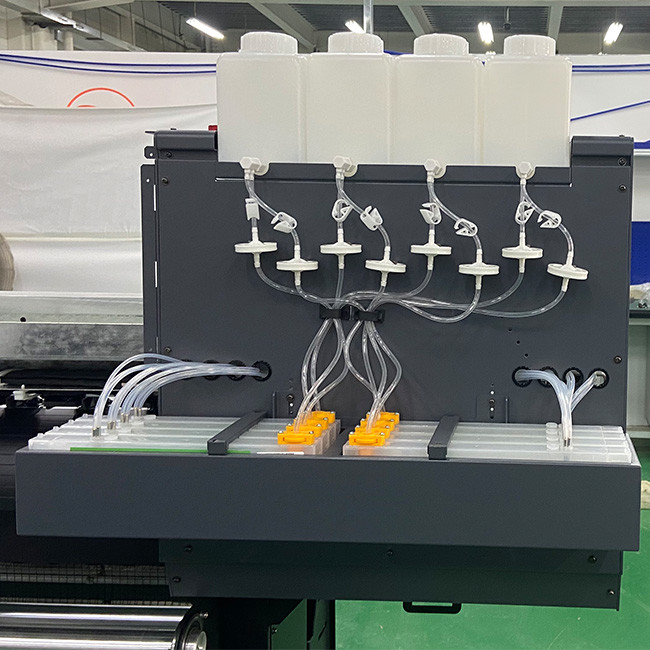

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which
guarantees the long-term continuity of ink output.
Application For Fedar FD5196E Digital Inkjet Printer
Dye Sublimation Textile Printer can support print different gsm transfer paper, 45 to 100 gsm, and transfer on
polyester(contton<30%) Sportswear, curtain, dress, shoes, carpet, silk, bed sheet, etc.
Sportwear Indoor Decoration Bedding
Bags Underwear and swimwear Socks
