FEDAR 8 I3200A1 Heads Textile Sublimation Printer Fabrics Printing Machine

  • FEDAR 8 I3200A1 Heads Textile Sublimation Printer Fabrics Printing Machine
  • FEDAR 8 I3200A1 Heads Textile Sublimation Printer Fabrics Printing Machine
  • FEDAR 8 I3200A1 Heads Textile Sublimation Printer Fabrics Printing Machine
  • FEDAR 8 I3200A1 Heads Textile Sublimation Printer Fabrics Printing Machine
  • FEDAR 8 I3200A1 Heads Textile Sublimation Printer Fabrics Printing Machine
  • FEDAR 8 I3200A1 Heads Textile Sublimation Printer Fabrics Printing Machine
Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD5198E
Minimum Order Quantity 2 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Type Eps3200-A1 Printhead Resolution 3200
Print Width 1.9m Ink Sublimation Ink，water Based Ink Etc
Print Height Max 5mm Quantity 8
High Light

I3200A1 Heads Textile Sublimation Printer

,

FEDAR 8 Textile Sublimation Printer

,

FEDAR 8 I3200A1 Fabrics Printing Machine
Leave a Message
Product Description

FEDAR 8 I3200A1 Heads Sublimation Machine Fabrics Printing Textile Printing Machine

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and

so on. It prints on sublimation papers first, then heat transfer the pattern to the fabric you want.



FEDAR 8 I3200A1 Heads Sublimation Machine Parameters

sublimation printer Inkjet printers
Printhead
Epson I3200-A1
Nozzle Quantity
3200
Printhead Quantity
8
Print Width
1900mm
Ink Color
CMYK
Print Height
2-5mm
Resolution
360*1200/360*1800/
720*1200/720*1800(DPI)
Media Transfer
Auto Tension Taking-Up Media Device


Speed
*Tested on linear printing without feather function
2pass
180㎡/h
Drying Method
Extra Dryer Device
1pass
320㎡/h


Ink Supply Method
Siphon Positive Pressure Ink Supply






Head Moisture Method
Auto Head Cleaning and Moisturize

Print Media
Transfer Paper
Ink Type
Sublimation Ink,
Water based Pigment Ink
Transmission
Interface
Gigabit LAN
Computer System
Win7, Win8, Win10
File Forms
TIFF, JPG, EPS, PDF, etc.
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
NeoStampa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

3250*960*1170mm

Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max 3500W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory:4G,CPU: Inte I5/I7, G-Ethernet
Standard Configuration
Ink Level Alarm System





FEDAR Fabrics Printing Textile Printing Machine Feature

*  The whole series is equipped with computer host, monitor, keyboard and mouse bracket as standard, which

avoids the tedious purchase of computer desk by customers and makes the workshop layout more concise.

*  The expansion type self-locking synchronous wheel structure ensures uniform stepping accuracy and smaller error.

*  2 220 V sockets are reserved for the equipment, and the computer does not need to be equipped with additional

plug-in row by customers, so the wiring is more standardized.

*  High precision paper guide roller with groove, diameter of 100 mm, solves the wrinkle problem of thin paper printing.

*  Imported Japan THK silent linear guide rail, smooth movement, longer life, high-speed movement can effectively reduce the resistance and noise in the operation of the pinch roller.

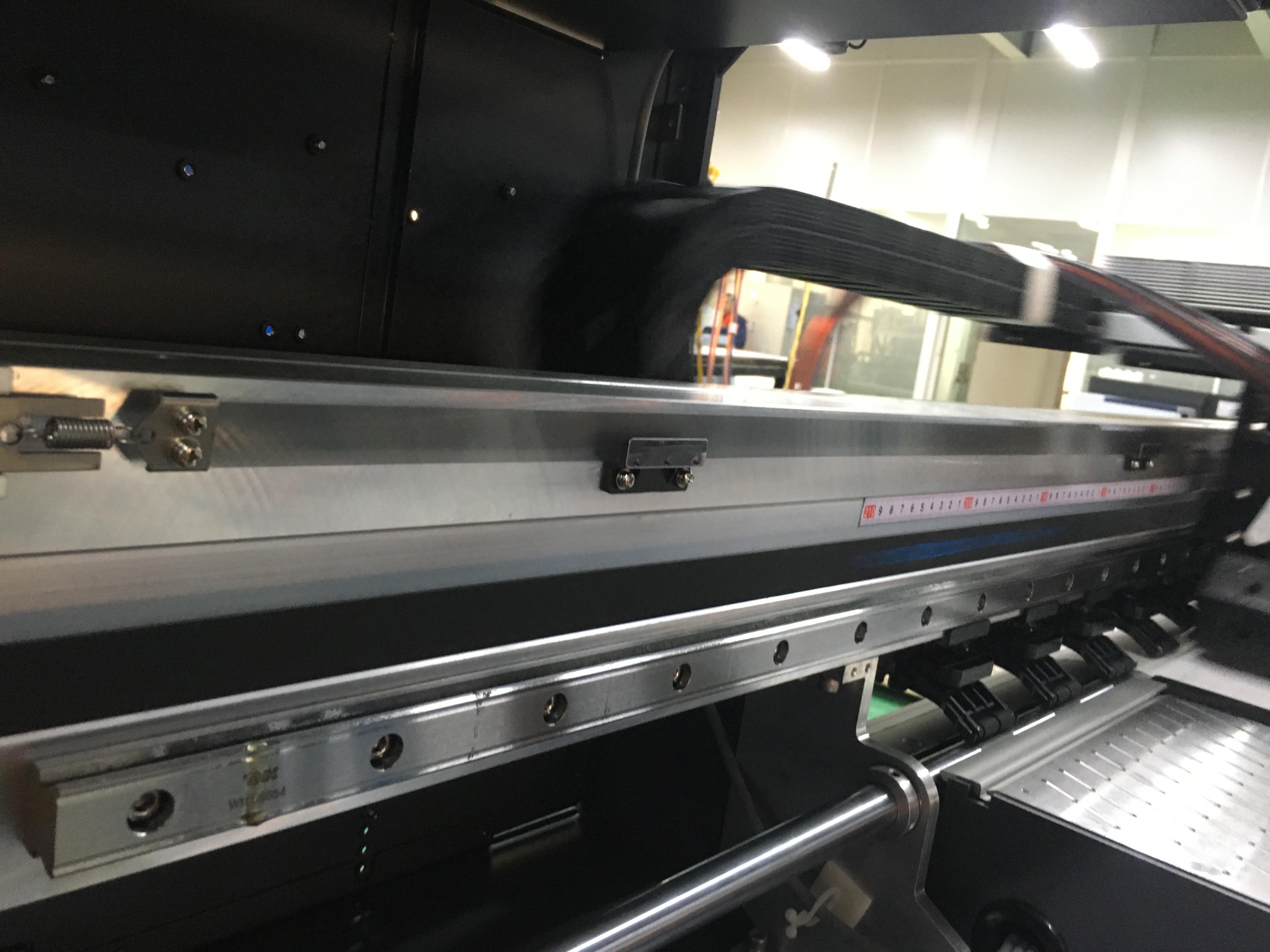

Sublimation Printer Detail

FEDAR 8 I3200A1 Heads Textile Sublimation Printer Fabrics Printing Machine 0



CERTIFICATE

FEDAR 8 I3200A1 Heads Textile Sublimation Printer Fabrics Printing Machine 1





Digital Inkjet Printing Machine Application



FEDAR 8 I3200A1 Heads Textile Sublimation Printer Fabrics Printing Machine 2
