EPS 4720 Digital 3200mm Eco Solvent Inkjet Printer

Place of Origin CHINA
Certification CE
Model Number SC-320TS
Minimum Order Quantity 1 Set
Price USD9000-10000/SET
Packaging Details EXPORT CRATE
Delivery Time 7-10 DAYS
Payment Terms T/T , D/A, D/P, L/C
Supply Ability 20 SETS PER DAY
Product Details
Head Original Dx5,EPS 4720 Max Printing Width Width 3200MM
Head Quantity Dual Heads, Three Heads Ink Eco Solvent Ink Water Based Ink
Ink Color CMYK Package Export Crate
Usage Vinyl Printer, Poster Printer, Bill Printer, Sign Printer Media Type Roll To Roll
Rip Software Maintop Photoprint ONYX Resolution 1440dpi 3200dpi
Warranty 1 Year
High Light

3200mm Eco Solvent Inkjet Printer


EPS 4720 Digital Inkjet Printer


EPS4720 Eco Solvent Inkjet Printer

Leave a Message
Product Description

3.2m Digital Large Format Eco Solvent Printing Machine Inkjet Printer

Technical Parameters


3.2m digital large format eco solvent printing machine inkjet printer

Printhead Technology EPSON Micropiezo DX5/ 4720 printheads
Ink Type Water Based; Eco Solvent Based
Colors Double Four Color
Number of Nozzles DX5 head (180*8 nozzles) 4720 head (400*8nozzles)
Height of Head Print 2-5 mm (Variable)
Media Feeding Method Multi-Pinch Rollers Feeding System
Color Management ICC Based, Density & Curves adjustment
Computer System Windows7 and Windows8
Power Supply 50HZ/60HZ, 220V, 10A
Humidity 40%-60%
Maximum Printing Width 3200mm
Printing Resolution & Speed
720×720 4Pass 32㎡/H
720×1080 6Pass 26 ㎡/H
720×1440 8Pass 18㎡/H

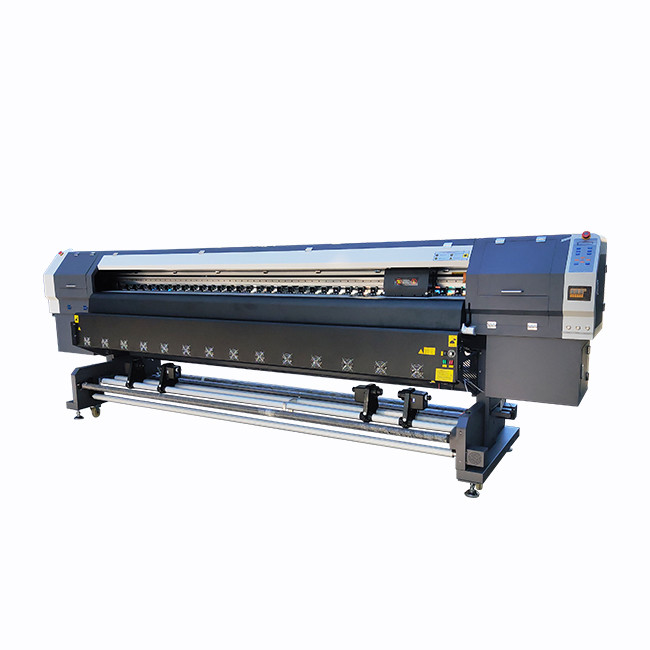

EPS 4720 Digital 3200mm Eco Solvent Inkjet Printer 0


Details photo

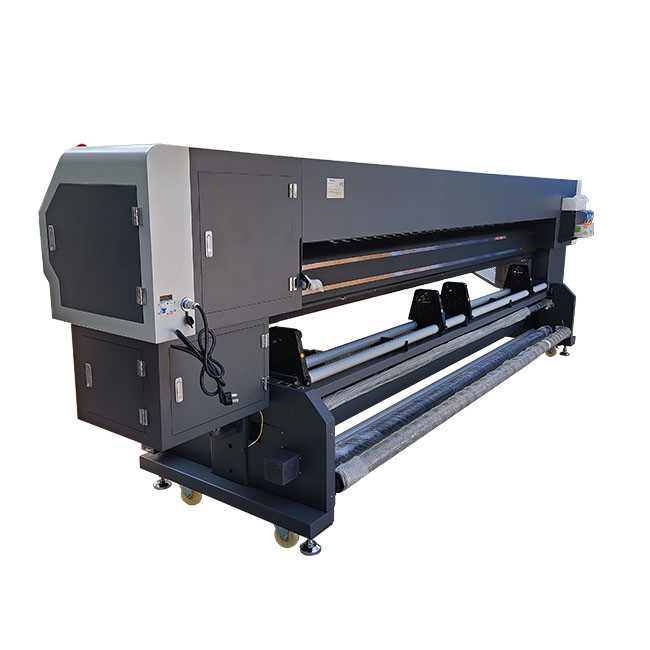

EPS 4720 Digital 3200mm Eco Solvent Inkjet Printer 1




1. Two sets of feeding & take-up unit are equipped, as for heavy media, which can be placed on roller to feed it.

2. Multi-row pinch rollers made of Dupont rubber ensure the media move accuratly.

3. Namebrand Japanese THK linear guide rail makes carriage movement smooth and low noise.

4. Intelligent infrared heating & blowing external dryer accelebrates media drying speed, meanwhile

heating and printing can be synchronous to reduce the energy waste.

5. Continuous ink supply and convinience on tank maintemance.

6. Leadshine brushless integrated x&y motors are used on both X and Y dir. giving accurate movement controlling.

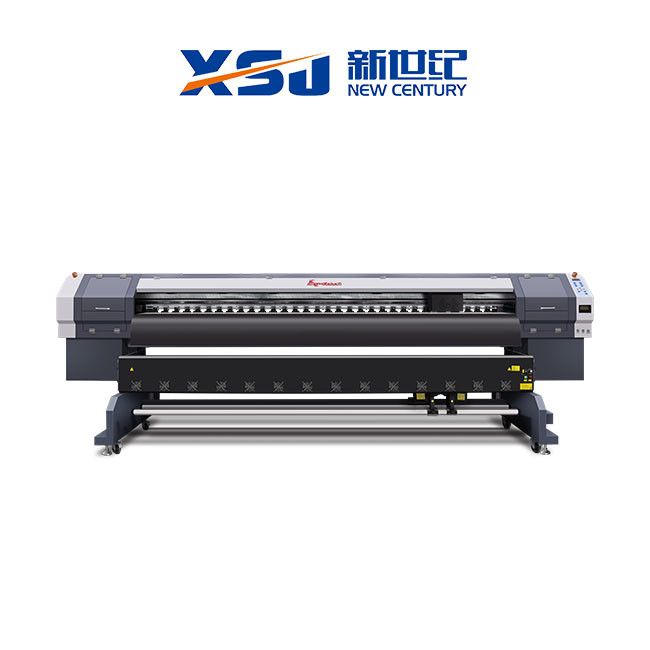

EPS 4720 Digital 3200mm Eco Solvent Inkjet Printer 2



1. 3.2m wide format output, support double-head or triple-head printing to meet the different printing demand.

2. Adopt Epson lastest micropiezo printhead with VSDT (variable size of dot technology), the smallest

droplet is 3.5pl, the largest droplet is 15pl ensuring excellent quality output.

3. Support eco solvent ink and water-based ink, which is applicable on both indoor and outdoor printing.

4.  Ethernet data transmission port, data transmisssion is super faster than USB port, which reduce the

pause of carriage in both ends.
5.  Intelligent feather function eliminating BANDING effectively in printing,improving printing quality obviously.

6.  Troubleshooting is built-in Pcs PrintExp., which is convinient and helpful to do daily maintenance.

7.  Featured auto head cleaning function, effectively eliminates nozzle clogging and improve prinitng quality.
8.  Multiple RIP softwares (Maintop, Photoprint, Onyx, Print Factory) are optional to meet different operator's meets.

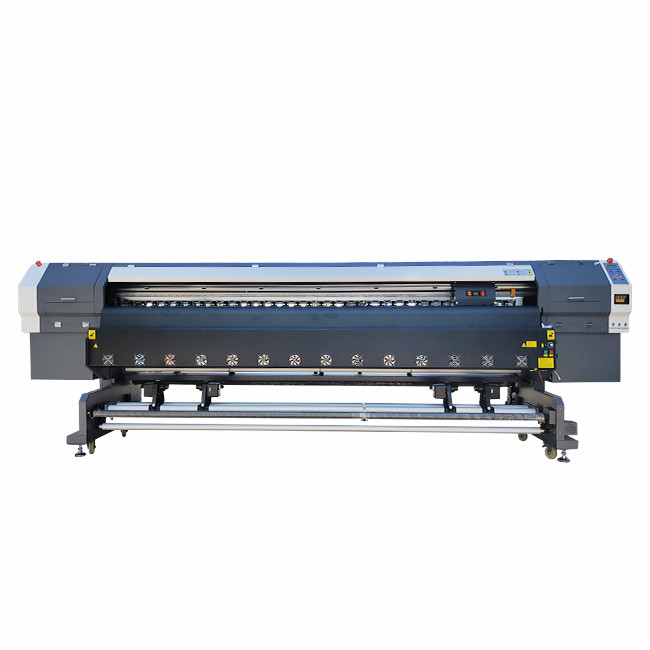

EPS 4720 Digital 3200mm Eco Solvent Inkjet Printer 3

Wide Application

EPS 4720 Digital 3200mm Eco Solvent Inkjet Printer 4


Q: I don't know your website well, how can I trust you?

A: Zhengzhou New Century Digital Technology Co., Ltd has launched online business for selling Eco Solvent

Printer, Solvent Printer, UV Printer, Digital Textile Printer almost 15 years and established customers over 168

countries and areas. We are the Gold Supplier of Alibaba almost 13years, and the verified user of PayPal as

well as approved by SGS certification.

Q: How can I know if it is paid successfully?

A: We will send you a payment confirmation email upon receiving your payment

Q: How long can I receive the items?

A: Normally speaking, we will spend 5-7 days to prepare the order and if it requires longer time, we will inform

you as soon as possible. The general shipping time will be 15 - 30 days by seacargo.

Q: How to receive my order? Is it safe during shipping?

A: For the items you purchased, we will arrange shipping by sea or international express delivery to ship and

usually the carriers are DHL, FedEx, TNT, and UPS. It shall be quite safe during shipping by sea or air. Additionally,

we will purchase insurance as a guarantee for your order.

Q: How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?

A: We will send you the Bill of Lading or tracking number after shipping your items, hereby please keep on checking

your email.

Q: What is Warranty Policy

A: We provide 15 months warranty. During the warranty if electronic parts or motor is faulty, our company will give you

replacing parts for free and help you to change the faulty parts. When the warranty expired, our company will still

give you technician support for free. The only difference is the replacing part no longer free. So, we provide lifelong

after sale service to you as long as you use our printer. Especially, you can gain the lifelong Warranty for your large

format digital inkjet printer with continuously ink order.

All products on our website are made by the best manufacturers in China and the quality is guaranteed by the China

Ink-jet Printing Association. Although low cost products are the most popular, but our products are selected with high

quality and high production standards and affordable price. We can supply assembly spare parts with every machine

and guarantee their functioning for at least 12 months.
