Dye Sublimation Polyester 1900mm Digital Inkjet Printing Machine

Place of Origin China
Brand Name Fedar
Certification CE
Model Number TC1946
Packaging Details Standard Wooden Box
Supply Ability 200 sets per months
Product Details
Usage Transfer Paper Head Eps On I3200-A1
Head Quantity 6 Media Loading 1500m-3000m
Application Sportswear RIP Software Neostampa, Photoprint
Print Width 1900mm Color CMYK
Ink Type Sublimation Ink, Water Based Pigment Ink Warranty 1 Year
Motor Leadshine Driver Leadshine
Head Check With Mirror Device
High Light

TC1946 Digital Inkjet Printing Machine


Fedar 1900mm Polyester Inkjet Printer


1900mm Digital Inkjet Printing Machine

Leave a Message
Product Description

Dye Sublimation Digital Inkjet Printing Machine For Polyester

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so on. It prints

on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic printing and dye sublimation ink

make the pattern colors bright, strong and fantastic.



TC1946 Sublimation Printer
EPS on I3200-A1
Nozzle Quantity
Printhead Quantity
Print Width
Ink Color
Print Height
Media Transfer
Auto Media Feeding and
Taking-up System, Roll to Roll
*Tested on linear printing without feather function
2pass / 200㎡/h
Drying Method
Extra Dryer Device
4pass / 120㎡/h
Ink Supply Method
Siphon Positive Pressure Ink Supply
6pass / 60㎡/h
Head Moisture
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function
Print Media
Transfer Paper
Ink Type
Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System
Win7, Win8, Win10
File Forms
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
Package Size
Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.9000W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard Configuration
Ink Level Alarm System

Printhead Simple Introduction


Printing width of I3200-A1 is 1.3 inch, about 30% wider than DX5, printing speed can reach 200-300sqm/h with 2 pass, also with 3200 nozzles(800*4lines), it has much higher speed and resolution than Dx5.


I3200-A1 printhead adopts TPF technology, with the smallest droplet 2.5PL, variable dots technology, which can ensure perfect and high resolution printing performance. (this head resolution is higher than 4720 head)

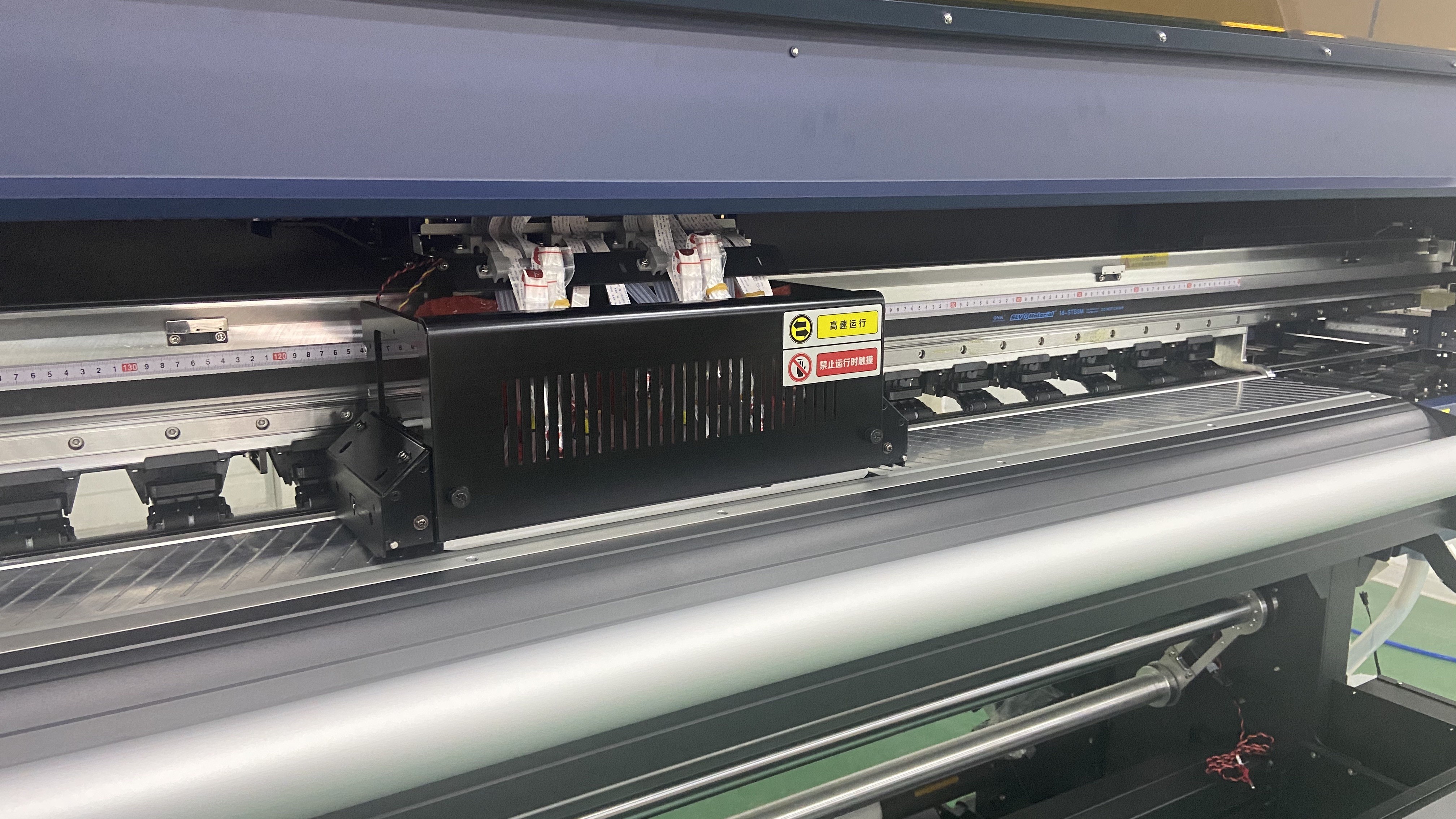

Dye Sublimation Polyester 1900mm Digital Inkjet Printing Machine 0





1. Servo Motor and Driver: LEADSHINE (Famous Brand)


2. Guide Line: HIWIN (Famous Brand in China) or THK (Import from Japan)


3. Cartridge: Original Import (Clean, Pump and Moisturize Automatically)


4. Main Board: Design and Produced by ourselves, it is stability and 12 Months Warranty time


5. Ink Supply System: Bulk Ink Continues Supply System


6. Support Hoson control board which can use I3200 or 4720 head


7. Industrial body design and taking-up media and feeding media system


TC1946 Digital Inkjet Printing Machine Detail Show

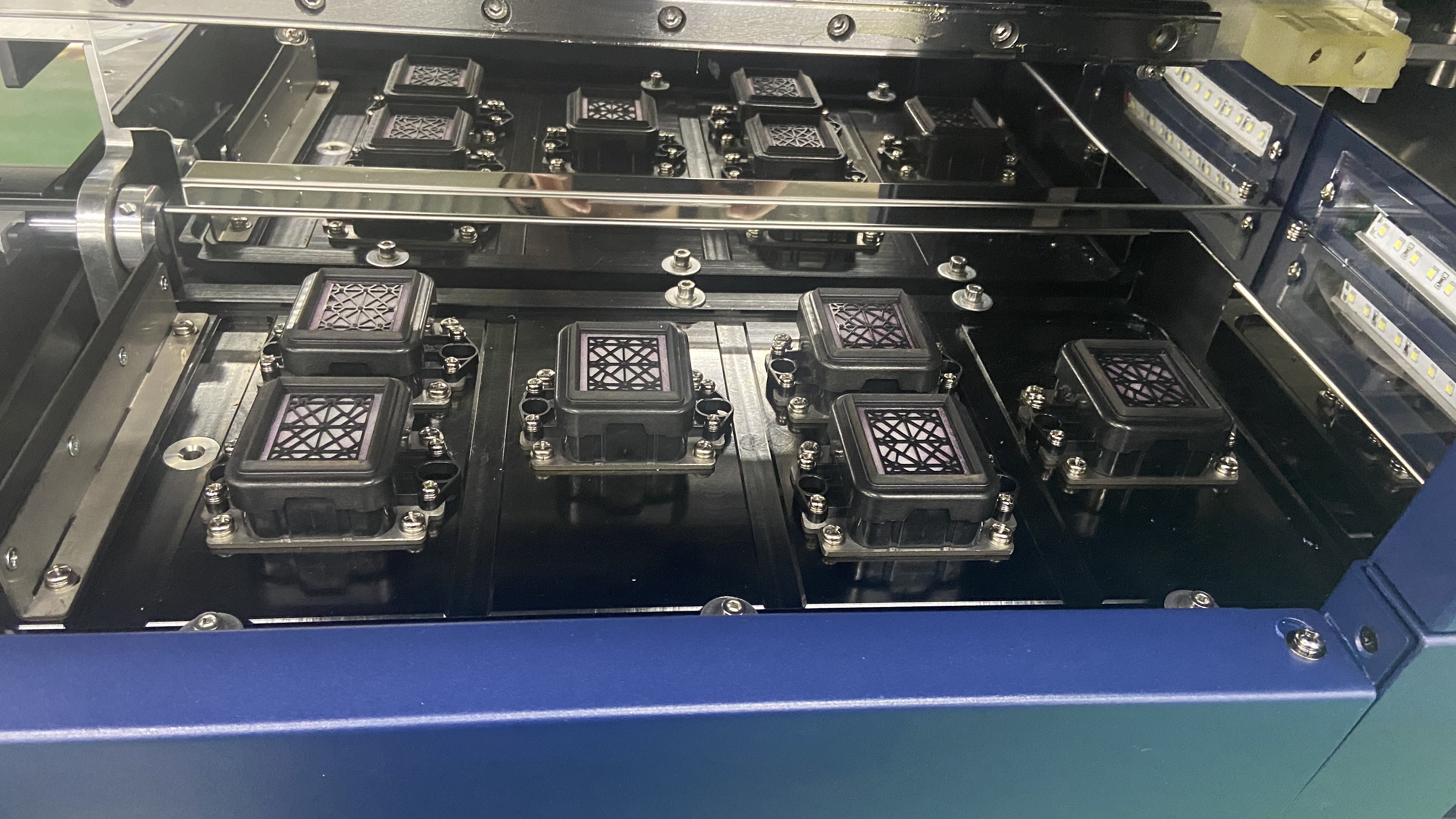

Dye Sublimation Polyester 1900mm Digital Inkjet Printing Machine 1




1. Adopt a two-level ink supply system, which keeps printing for a long time to ensure the output quality of the picture


2.Using international high-end software, the picture is more realistic and the reproducibility is better.


3. Bi-directional Leisai brushless motor, high-precision drive linear decoding, higher accuracy, smaller length error, and

more stable performance.


4. Intelligent ink shortage reminder, reducing the tediousness of frequently checking the ink remaining amount, and promptly

reminding to add ink to ensure the continuity of printing work


5. Equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle

cleaning and maintenance functions, and more convenient operation and maintenance.


6. Use Japanese THK silent linear guide, the movement is more stable and the life is longer.


7. Import fluororubber press roller, prevent static electricity from flying ink, more accurate print size, reject wrinkles


8. The height of the carriage can be adjusted according to different printing consumables, and anti-collision devices are

added at both ends to give the print head more comprehensive safety protection



Widely Applications

Sublimation Printer application is widely, and will replace traditional textile machine. Because it's print speed and print type is more and protect environment,  then this machine will leading the textile market soon. Also this model is popular to use water based pigment ink in Europe countries.


Mainly used in Sportswear, Dress, Curtain, Bags, Shoes, Polyester, etc.

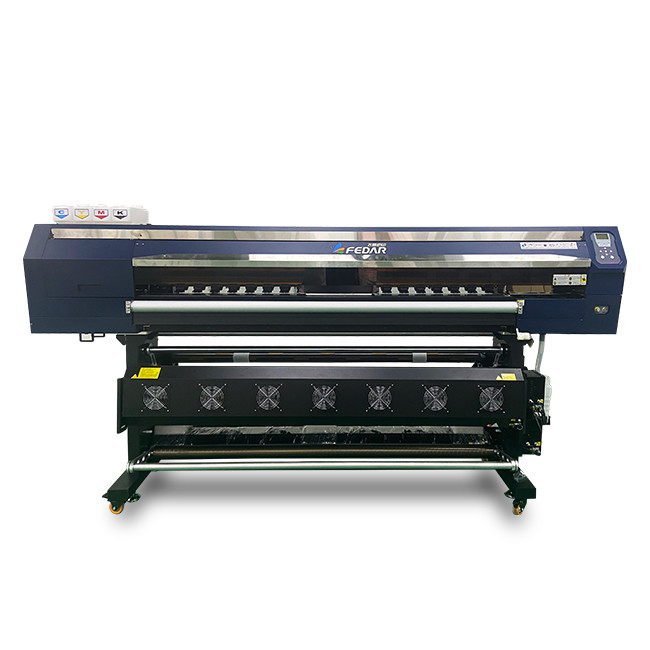

Dye Sublimation Polyester 1900mm Digital Inkjet Printing Machine 2
