Double Side SKYCOLOR UV Inkjet Printer 3 Heads CMYK

Place of Origin CHINA
Certification CE
Model Number H1 UV
Minimum Order Quantity 1 Set
Price USD7500-8500/SET
Packaging Details Standard Wooden Box
Delivery Time 7-10DAYS
Payment Terms T/T
Supply Ability 20 SETS PER DAY
Product Details
Head Type Dx5 Or 4720 Curing Method UV LED Curing
Max Printing Width 1.8m Head Quantity 3 Heads
Application Poster/vinyl/banner/mesh/transfer Paper Ink Color CMYK +W+CMYK
RIP GMG Guide Rail THK
Warranty 1 Year Ink UV Ink
High Light

SKYCOLOR UV Inkjet Printer


Double Side UV Inkjet Printer


UV Inkjet Printer 3 Heads CMYK

Leave a Message
Product Description

New Window Film Double Side Print Solutio UV Inkjet Printer With 3 Heads

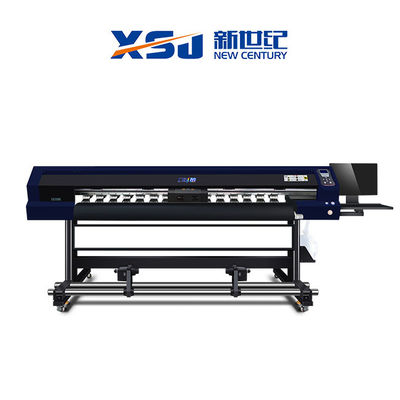

 H1 UV roll to roll Inkjet Printer
Printhead Type: Epson 4720
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing
Quantity 3 Printheads
Print Speed
*Tested on linear printing without feather function
6 pass 15㎡/h
8 pass 11㎡/h
Print Width 1800mm
Ink Type Type: UV Ink
Feeding Media Roll to roll
Rip Software Maintop6.0, Photoprint19,
Image Format JPG, TIFF, BMP, PDF, etc.
Computer System Win7,Win8,Win10
Transmit Port USB2.0 / USB 3.0
Heating System Front, bed and rear body-heaters and UV lamp
Working Environment Temp.:15℃-30℃, Humidity: 35℃-65℃
Power Supply 50/60HZ, 220V, 10A
Package Machine Size 2950*940*980cm
Machine Weight 340kg

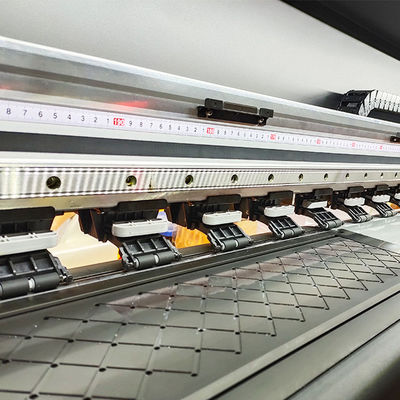

1. Three pieces of Epson printheads
Adopting micropiezo technology, droplet is variable, three sizes of droplet can compose different droplet.

high resolution output.

2. THK Guide Rail
Adopting original THK guide rail,which makes printer more stable even at a high speed.Long working life.

3. Imported Cartridge Capping Station
Head clean and moisturize can be set to be don during printing automatically,which keeps the ink flow fluently.

4. Compatible with different RIP software
Compatible with different RIP software,Maintop,Photoprint, etc.

5. Leadshine Servo Motor
Dual-direction servo motor,high resolution driver,linear encoder,higher resolution in length,more stable running.


Double Side SKYCOLOR UV Inkjet Printer 3 Heads CMYK 0


Double Side SKYCOLOR UV Inkjet Printer 3 Heads CMYK 1


Double Side SKYCOLOR UV Inkjet Printer 3 Heads CMYK 2




1. This solution is special for the printing of transparent material used on shopwindow sticker. glass sticker etc,

  making the visual effect more vivid no matter which side to see.


2. Nozzle size of Epson head is the smallest among most printheads,so printing quality is unrivalled, output

quality can reach up to photo level.


3. Adopt UV ink, which reduce the discharge of VOC, friendly to the environment.


Application for Window Film


Double Side SKYCOLOR UV Inkjet Printer 3 Heads CMYK 3


Double Side SKYCOLOR UV Inkjet Printer 3 Heads CMYK 4
