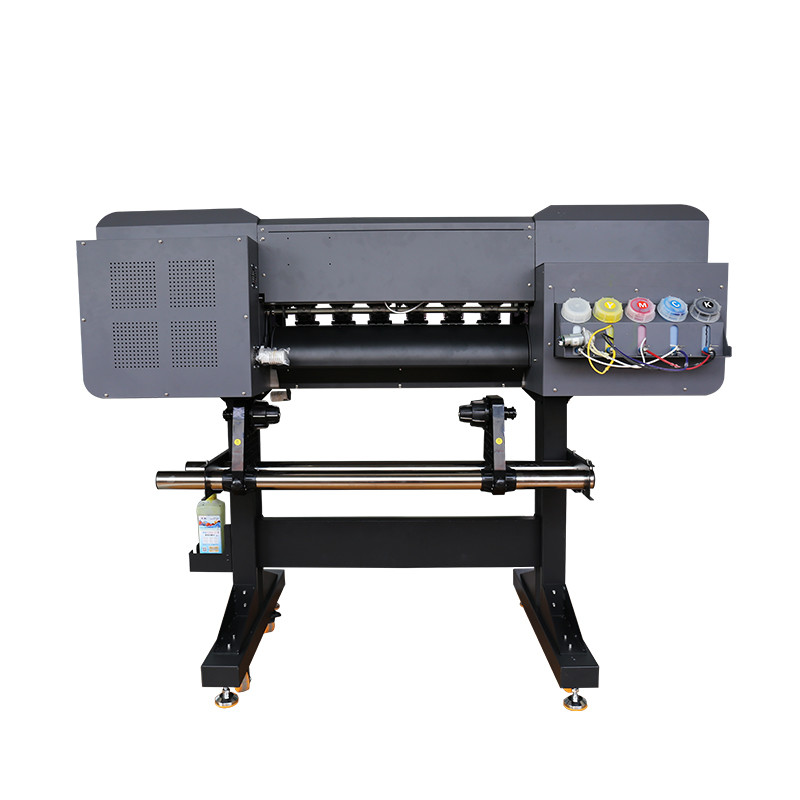

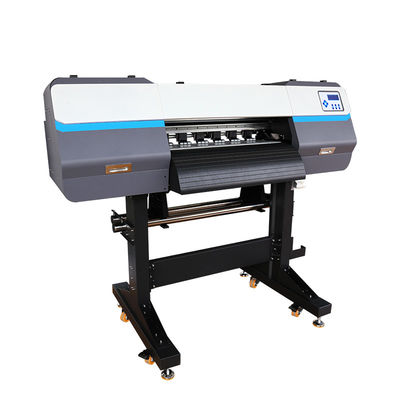

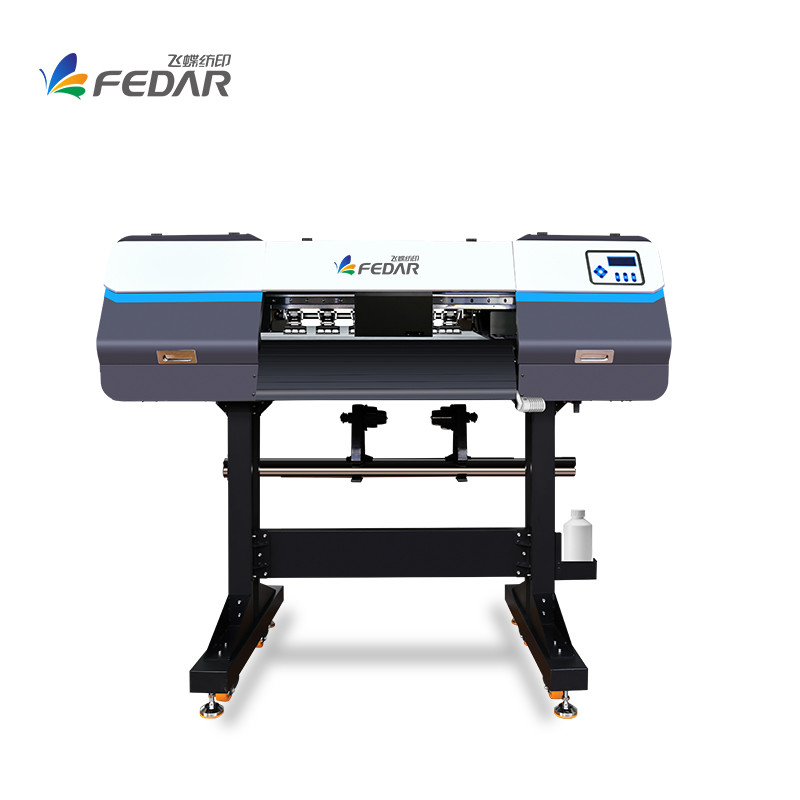

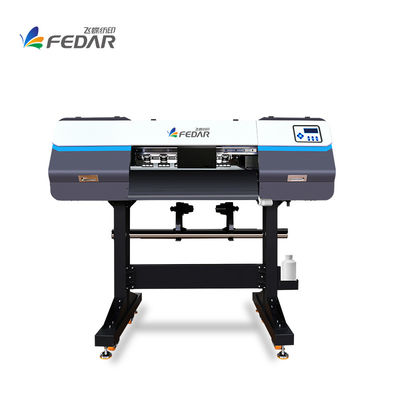

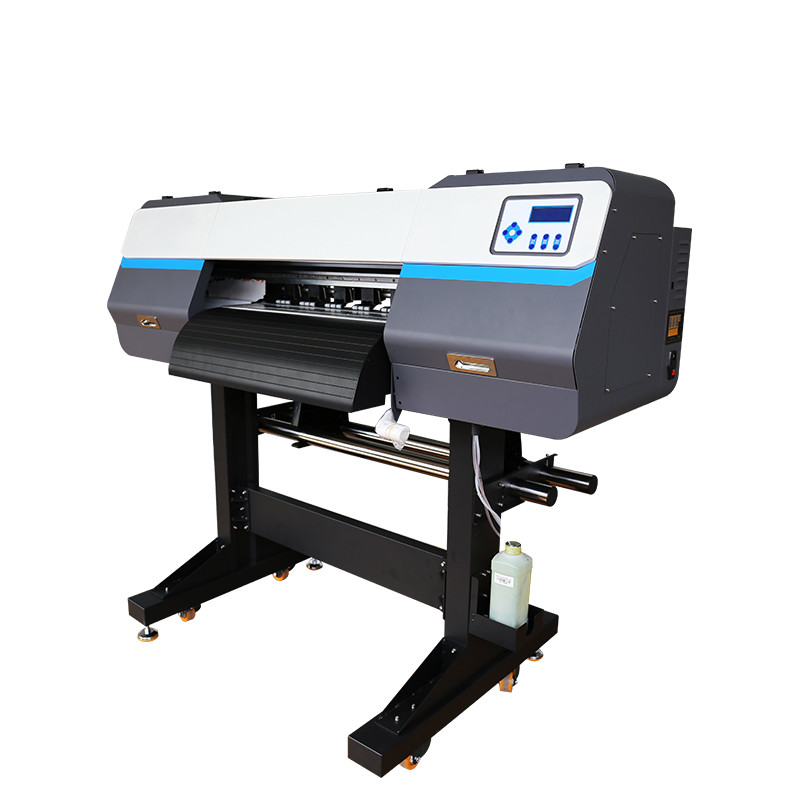

Double Heads FEDAR 70cm A3 A1 DTF Transfer Film Printer For Cloth

  • Double Heads FEDAR 70cm A3 A1 DTF Transfer Film Printer For Cloth
  • Double Heads FEDAR 70cm A3 A1 DTF Transfer Film Printer For Cloth
  • Double Heads FEDAR 70cm A3 A1 DTF Transfer Film Printer For Cloth
  • Double Heads FEDAR 70cm A3 A1 DTF Transfer Film Printer For Cloth
  • Double Heads FEDAR 70cm A3 A1 DTF Transfer Film Printer For Cloth
Place of Origin CHINA
Brand Name FEDAR
Certification CE
Model Number FD70-2
Minimum Order Quantity 5 Set
Packaging Details EXPORT CRATE
Delivery Time 7-10 DAYS
Payment Terms T/T
Supply Ability 20 SETS PER DAY

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Print Head EPS I3200-A1 Printheads Max Printing Width 70cm
Head Quantity 2 Pcs Rip Software NeoStampa,Ergosoft, Onyx,Photoprint,Maintop
Ink Type Pigment Ink Media Pyrograph Film
Highlight

70cm A3 DTF Transfer Film Printer

,

70cm A1 DTF Transfer Film Printer

,

70cm a3 dtf printer
Leave a Message
Product Description

New Arrival !!Double Heads FEDAR 70cm A3 A1 DTF Print Transfer Film Printer for Cloth

Design for textile printing,It can be used with a shaking power machine,and it can transfer the design to the dress,

shoes,bags and so on.


FEDAR 70cm A3 A1 DTF Print Transfer Film Printer for Cloth Parameters
FD70-2 Heat Transfer Film Printer
Printhead
Epson I3200-A1
Nozzle Quantity
3200
Printhead Quantity
2
Print Width
700mm
Ink Color
CMYK+W Pigment Ink
Print Height
2-5mm
Resolution
360*1200/360*1800/
720*1200/720*1800(DPI)
Media
Pyrograph Film

Speed
*Tested on linear printing without feather function
2pass
98㎡/h
Drying Method
Extra Dryer Device
3pass
64㎡/h
Ink Supply Method
Siphon Positive Pressure Ink Supply
4pass
50㎡/h
Head Moisture Method
Auto Head Cleaning and Moisturize
6pass
32㎡/h
Ink Cycle
Auto White ink cycle
Ink Type
Pigment Ink
Transmission
Interface
Gigabit LAN
Computer System
Win7, Win8, Win10
(Professional)
File Forms
TIFF, JPG, EPS, PDF, etc.
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
NeoStampa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

1200*960*1000mm

Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max 3500W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,Memory: 4G, CPU: Intel I5/I7, G-Ethernet




FEDAR 70cm DTF Print Transfer Film Printer Feature

*   Printhead: 2*EPS I3200-A1
*   Printhead Resolution: 3200DPI
*   Printing Speed: 13 sqm/h
*   Print Width: 600mm
*   Ink: Pigment Ink

*   Ink Color: CMYK+W
*   RIP Software: Maintop(Photoprint is optional)



Double Heads FEDAR 70cm A3 A1 DTF Transfer Film Printer For Cloth 0



Technical Details:

Double Heads FEDAR 70cm A3 A1 DTF Transfer Film Printer For Cloth 1

Carriage:
Anti-Collision carriage protect printheads.

Capping Station:
High moisture,adjustable capping station,avoid printhead clogging, adjust capping station up and down.

Pinch Roller:
Import fluororubber pinch roller,avoid static and ink misting ensure print size more precisely.

Ink Tank:
Auto supply ink,1.5L big ink tank.

Feed & Take-up System:

A standard Feed&Take-up System.
Drying System:
Three ways heating system front ,middle,back individual,improve the printing quality.



APPLICATION

Double Heads FEDAR 70cm A3 A1 DTF Transfer Film Printer For Cloth 2
