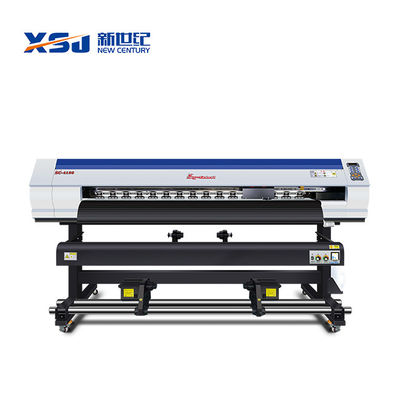

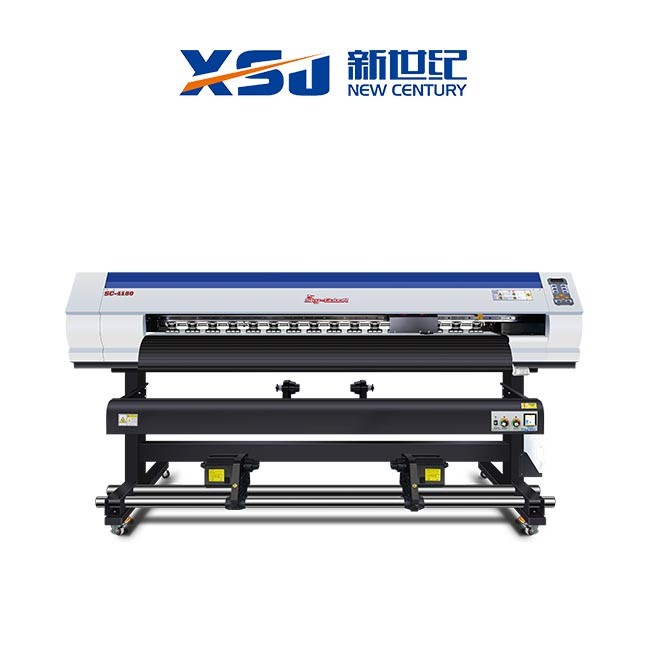

Double Heads 1.8m Skycolor Eco Solvent Plotter

  • Double Heads 1.8m Skycolor Eco Solvent Plotter
  • Double Heads 1.8m Skycolor Eco Solvent Plotter
  • Double Heads 1.8m Skycolor Eco Solvent Plotter
  • Double Heads 1.8m Skycolor Eco Solvent Plotter
Place of Origin CHINA
Brand Name SKYCOLOR
Certification CE
Model Number SC-4180TS
Minimum Order Quantity 1 Set
Packaging Details EXPORT CRATE
Delivery Time 7-10DAYS
Payment Terms T/T
Supply Ability 20 SETS PER DAY
Product Details
Head Type EPS F1440-A1 Or I3200-A1 Printhead Ink Supply System Siphon Positive Ink Supply System
Max Printing Width 1.8m Head Quantity Double Heads
RIP Software Maintop6.0, Photoprint19, Onyx 19 Computer System Win7,Win8,Win10
Transmit Port USB2.0 / USB 3.0 Power Supply 50/60HZ, 220V, 10A
High Light

Skycolor Eco Solvent Plotter

,

1.8m Eco Solvent Plotter

,

Double heads Eco Solvent Plotter
Leave a Message
Product Description

1.8m Skycolor Large Format Eso Solvent Printer For Advertising

1.8m Skycolor SC-4180TS Large Format Eso Solvent Printer For Advertising
Printhead Type: Epson F1440-A1
Resolution: 1440DPI
Head Clean: Auto cleaning, flash and Moisturizing		 Type: Epson I3200-A1
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing
Quantity 2
  2pass 45㎡/h 2pass 80㎡/h
Print Speed
*Tested on linear printing without feather function		 4pass 32㎡/h 3pass 55㎡/h
6pass 26㎡/h 4pass 40㎡/h
8pass 18㎡/h 6pass 30㎡/h
Print Width 1800mm
Ink Type Type: Water-based ink(Dye or Pigment),
Eco Solvent Ink, Sublimation Ink
Color:CMYK		 Type: Water-based ink(Dye or Pigment), Sublimation Ink
Color:CMYK
Print Media PP, PVC, Vinyl, Flex Banner, Backlit, Canvas, etc. Indoor advertising material, Transfer Paper
Rip Software Maintop6.0, Photoprint19, Onyx 19
Image Format JPG, TIFF, BMP, PDF, etc.
Computer System Win7,Win8,Win10
Transmit Port USB2.0 / USB 3.0
Computer Cofigiration Hard Disk: 500G or more, GPU: ATI Mobility
Radeon, Memory: 4G or above
CPU: Intel 4 I5 processor or above
Optional Device Intelligent Dryer, Auto Feeding and Take-up System, Anti Collosion System
Working Environment Temp.:15℃-30℃, Humidity: 35℃-65℃
Power Supply 50/60HZ, 220V, 10A
Package Machine Size 2950*940*980m
Machine Weight 240kg



FEATURE
1.Double four-color printing,1.80m wide format output.
2.The cleaning of the printhead can be done directly on the computer.
3.Multi-row pinch rollers ensure the machine can print with an accurate size of feeding media.
4.Printing resolution can reach to 1440dpi,even the word is small as 0.5mm can be output.
5.Three different sizes of dots,achieving the complement of images,even under high speed or low resolution.



Double Heads 1.8m Skycolor Eco Solvent Plotter 0

DETAIL

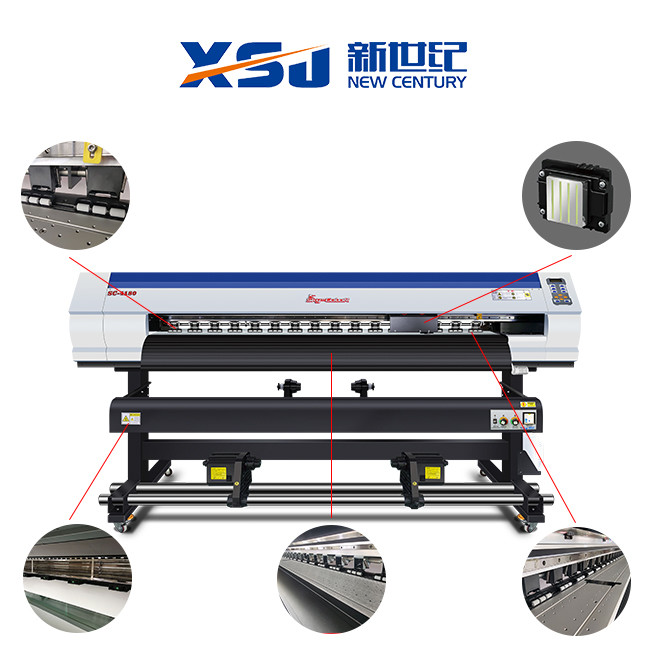

Double Heads 1.8m Skycolor Eco Solvent Plotter 1



 CARRIAGE:                                                               PINCH ROLLER:

 Adjustable carriage, suitable for materials of          The design of multiple pinch rollers ensure the

 different thickness.                                                      smoothness of the media during the printing process.



Double Heads 1.8m Skycolor Eco Solvent Plotter 2



 PRINTHEAD:                                                            INK TANK:

 Support EPS F1440-A1 and EPS I3200-A1          Bluk ink tanks for easy refilling.

 model.



Double Heads 1.8m Skycolor Eco Solvent Plotter 3



DRYING SYSTEM:                                                    GUIDE RAIL:

Uniquely designed three-stage heating,temp is       Imported Japan THK linear guide rail makes carriage

adjustable to accelebrate media drying speed        movement smooth and low noise.

after printing.





APPLICATION

Double Heads 1.8m Skycolor Eco Solvent Plotter 4



SHOW EVENTS

Zhengzhou New Century team had won the reputation of TOP 20 exporters in Advertising Equipment

in China and obtained more than 55 patents for the design&3patents for innovation.And have

participated in many exhibitions at home and abroad.Such as the domestic Zhengzhou exhibition,

Shanghai exhibition,Guangzhou exhibition and so on.Participating abroad is Colombia,New Delhi,

Ukraine,Thailand,Italy etc.No matter you are individual or agent, welcome to joins us !



Double Heads 1.8m Skycolor Eco Solvent Plotter 5



OUR SERVICE

  • One year warranty,lifetime maintenance beyond the warranty.

  • Teachnical training and guidance will be provided by ten technicians who can fly to various countries at any time .

  • More than 2 million yuan were invested on after-sales every year.

  • Providing remote after-sales service support by online teachnical guidance.

  • Two more QC is added on export machines to guarantee the quality.Strict controlling on leadtime.



FAQ



Q1.Why this model price is higher?

All spare parts quality and design we use best, every customer receive it, all said it is perfect machine.



Q2.How about the service?

24 hours online service or send engineer to your company training.



Q3.How many machines can be produced in a month?

500 sets per month.



Q4.Is product quality guaranteed?

We have professional technicians and after-sales service.Once there is any problem,we will solve it patiently for you.



Q5.How long is the machine's warranty?

12 months.
