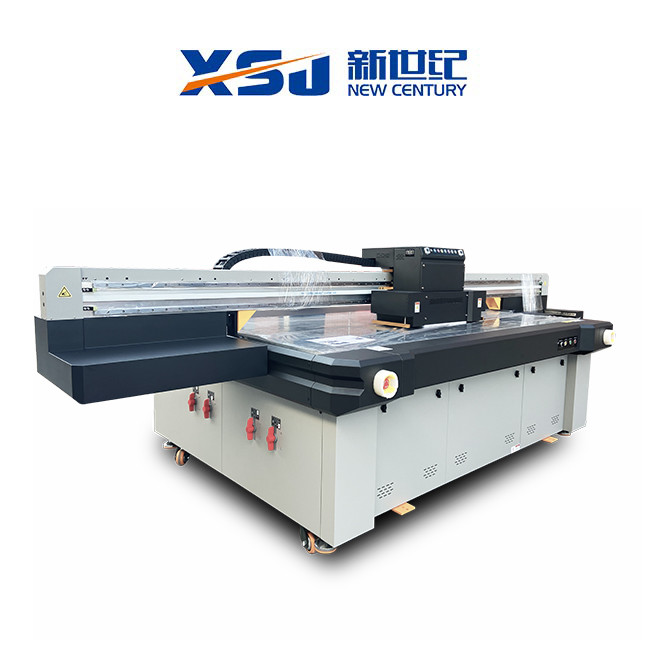

CMYK 8 Heads 45Sqm/H 2400DPI UV Inkjet Printer

Place of Origin China
Brand Name JSW
Certification CE
Model Number F2513G
Minimum Order Quantity 5 Set
Price USD 19000 USD SET
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Payment Terms L/C, T/T
Supply Ability 200 Per Month
Product Details
Printhead Type Ricoh Gen5(7PL) Grey Scale Micro Piezo Printhead Printhead Quantity 2-8 Pcs
Resolution 2400 DPI Print Speed 45 Sqm/h
Print Width 2500mm * 1300mm Ink Type Environment-friendly UV Curing Ink
Ink Color Standard: C M Y K LC LW W,Varnish Is Optional RIP Software Standard:PhotoPrint Print Factory And Onyx Are Optional
High Light

2400DPI UV Inkjet Printer

,

45Sqm/H UV Inkjet Printer

,

CMYK UV Inkjet Printer

Leave a Message
Product Description

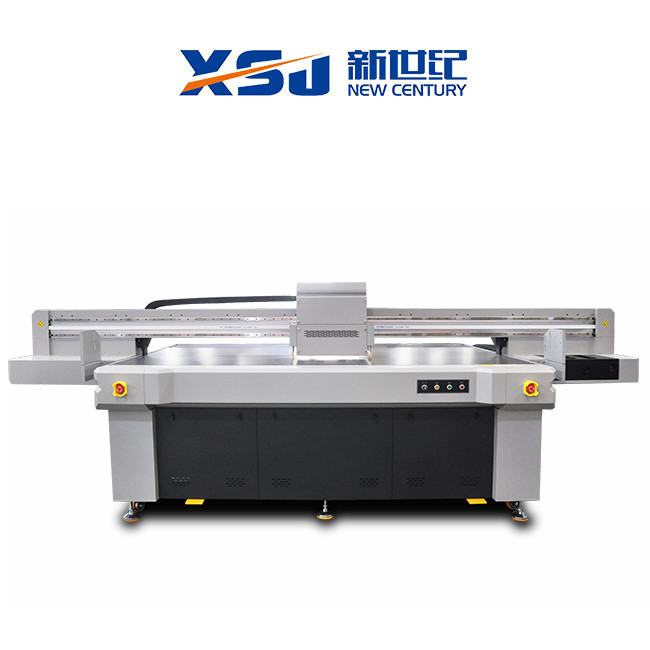

F2513G High Quality Industrial Level UV Flatbed Printer With 2-8 Heads

F2513G is High printing speed &High resolution Industrial UV Flatbed Printer, which will meet the speed and quality request

from clients. It's equipped with 2-8units Grey Scale micropiezo printheads 4/6/8 colors high resolution print is available which

is to satisfied the clients when clients are with different application production order.



High Quality Industrial Level UV Flatbed Printer Parameter

F2513G UV Flatbed Priter
Modle
F2513G
Printhead
Ricoh Gen5(7PL) Grey Scale Micro Piezo Printhead
Print Quantity
2 To 8
Print Size
2500mm * 1300mm
Print Thickness
Max.100mm
Ink Type
Environment-friendly UV Curing Ink
Ink Color
Standard: C M Y K LC LW W,Varnish is optional
Ink Bottle
2.5 Liters/Color
Ink Supply System
Automatic Negative Pressure Ink Supply System
Ink Moitoring System
Automatic Ink Lack Alarm System
RIP Software
Standard: PhotoPrint. Print Factory and Onyx are optional
Media Type
Acrylic,Aluminum Board,Ceramic Tile,Glass,Wood Board,PC,TPU,Leather,PVC Board,etc.
Media Adsorption System
4 Vacuum Zones,Available for different types of media
Print File Format
TIFF,JEPG,PDF,EPS,PNG,AI,BMP,etc.
Printer Dimension
4155mm * 1980mm * 1506mm(Length * Width * Height)
Printer Weight
1500 KG
Power
220V 50HZ/60HZ
Power Rating
8 KW
Lifting Function
Carriage Height Automatic Adjustment,Intelligent Detection of Material Thickness
Computer Configuration
Computer System:Win 10,64 bit; Port USB 2.0/3.0; Hard Disc:More than 500G GPU Memory:8G CPU:Intel i5
Working Environment
Independent,Clean,Low Dust,Less Sunshine,Well Ventilated Workshop,Temperture:15℃-28℃
Ventilation Device
Ventilation Fan is Necessary.Air Exhaust Volume:600CFM
Print Speed
High Speed Mode 45㎡/h Production Mode 30㎡/h High Quality Mode 23㎡/h



F2513G Industrial Level UV Flatbed Printing Machine Feature

* Adopts Ricoh Gen5 piezoelectric printheads, 1 printhead is with 1280 nozzles, the precision can reach 2400DPI.
* Adopting energy- saving and environmentally-friendly LED UV curing system,the irradiation life is long and the energy
consumption is low; the LED cold-light curing does not affect the media which may deform if by heat, and the materials to be

adapted are more extensive.
* Realize the intermittent mixing of white ink in main ink tank and the real-time circulation of the pipeline, so as to ensure
that the white ink keeps flowing at all times, effectively preventing pigment precipitation and avoiding the malfunction of the ink s

ystem.
* The platform is with sub- area adsorption function.The loading and unloading operations can be easily performed for media

which is with different specific gravity.And the adsorption force of the local area can be effectively enhanced to ensure the

flatness of the printed material.
* Fully automatic large-capacity ink supply system ensures long-term uninterrupted printing. Automatic alarm when the ink

volume is insufficient. The operator can add ink at any time, no need to stop midway, and will not affect the normal production

process.
* Using advanced automatic material thickness measurement and automatic height control system. It can automatically adapt

to different thickness media to avoid damage which may cause by human operation error.



F2513G UV Flatbed Printer Detail

CMYK 8 Heads 45Sqm/H 2400DPI UV Inkjet Printer 0



1.Carriage:

Adjustable carriage is suitable for materials of different thickness.

2.Ink Tank:

The intelligent ink shortage alarm facilitates the operator to add ink in time.

3.Guide Rail:

Double Japan THK guide rails can keep precision,low noise and long time service life.

4.Ink Chain:

IGUS mute ink chain low noise,high quality.

5.Motor:

Delta 400W industrial servo motor.

6.Ink Sac:

Neat wiring facilitates inspection of problems.



F2513G UV Flatbed Printer Application

CMYK 8 Heads 45Sqm/H 2400DPI UV Inkjet Printer 1
