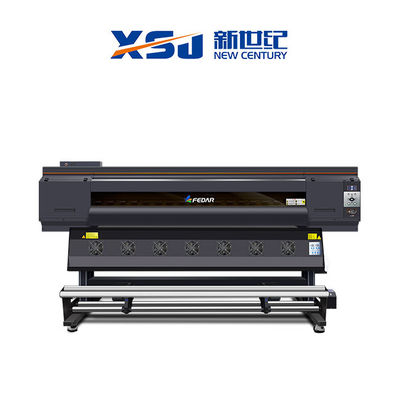

CE Textile 100g Sublimation Ink Printer FD5193E-3200
Product Details
| Print Head | I3200-A1 | Print Head Quantity | 3 |
|---|---|---|---|
| Application | Transfer Paper(28-100g) | Print Width | 1.9m |
| Ink | Dye Sublimation Ink/Pigment Ink/Water-based Indoor Ink | Ink Color | CMYK |
| Sublimation Printer Dimension | 3070*1090*1610mm | Rip Software | Maintop, Photoprint19,ONYX19 |
| Image Format | JPG,TIFF,EPS,PDF,PNG Etc | Resolution | 3200dpi |
| Print Speed | 120 M2/h (2 Pass) | Warranty | 12 Months |
| High Light | 100g Sublimation Ink Printer,Sublimation Ink Printer FD5193E-3200,CE sublimation textile printer |
||
Product Description
Textile Printer Digital Fabric Printing Machine Sublimation Ink Printer
PARAMETER
| Printer Model | FD5193E digital fabric printer | |
| Printhead | Type | I3200-A1 |
| Nozzle Qty | 800*4lines*3pcs printheads | |
| Height to Platform | 2-5mm | |
| Printing Speed | Production Mode | 2pass 120sqm/h |
| Average Mode | 3pass 85sqm/h | |
| High Resolution Mode | 4pass 65sqm/h | |
| Ink | Color | C M Y K |
| Type | Dye Sublimation | |
| supply method | Siphoning | |
| Max Printing Width | 1900mm | |
| Printing Media | Transfer Paper | |
| Media Transfer Method | Dual-drive tension take-up system,Auto air shaft feeding system | |
| Drying Method | External,Intelligent and air-heat Integrated drying system | |
| Moisture Mode | Fully sealed auto moisturing and cleaning | |
| RIP Software | Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc. | |
| Image Format | JPG,TIF,PDF,BMP and etc. | |
| Computer | System | WIN7 64bit/WIN10 64bit |
| Hardware | Hard disk:500G (system disk more than 100G) GPU:ATI Discrete CD-ROM:DVD ROM Memory:4G or more CPU:Intel i5/i7 processor |
|
| Transmit Port | Gigabit LAN | |
| Work Environment | Temperature 20-35 centi degree; Humidity 35-65% | |
| Power | Input Voltage | 210-230VAC 50/60HZ 16A |
| Printing system | 1000W | |
| Drying system | Max power 3500W | |
| Dimension | Printer Dimension | 3066*880*1553mm |
| Packing Dimension | 3250*950*1060mm | |
| Weight | Net Weight | 351KG |
| Gross Weight | 482KG | |
FEATURES:
01. Adopt epson I3200-A1 heads. max speed up to 120Sq/H
A.Printing width of I3200-A1 is 1.3 inch,about 30% wider than DX5,printing speed can reach 120sqm/h with 3heads,also with 3200 nozzles(400*8lines),it has much higher speed and resolution than Dx5.
B.EPS3200 printhead adopts TFP technology,with the smallest droplet 2.5PL,variable dots technology,can ensure perfect and high resolution printing performance.
C.EPS3200 printhead has very cheap price,only about 300-350USD/pc now,which helps client reduce cost to get more benefit!
D.Compared with Epson 5113 heads,the ink column makes hoses connection much easier and more simple,very convenient maintenance.
2. Anti-collision Car ,the distance between printhead and printing platform can be adjusted freely according to different printing consumables. Anti-collision devices are added at both ends to provide more comprehensive safety protection for printheads.
4. Advanced Capping Station
Equipped with advanced intelligent printhead cleaning and moisturizing device, it provides safe and convenient printhead cleaning and maintenance functions,which can also pump ink well and keep the ink flow fluently. Operation and maintenance is more convenient.
4. High Quality THK mute guide rail and slider .More stable running,longer working life,lower noise.higher resolution,and fewer errors in length.
5. Leadshine Motor Both the servo and stepping systems are driven by high-quality brushless integrated Leadshine motor with high-precision linear decoding, smaller error,higher precision and more stable operation.
6. Large Capacity & Two Stage Ink Reservoirs .Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which guarantees the long-term continuity of ink output,and keep wide format high-speed printing wonderfully.Two stage ink supply system provides more guarantee for non-stop ink output.
8. Intelligent Ink Starving Alarm . Intelligent ink deficiency alert reduces the tediousness of frequently checking ink margin, and promptly reminds to add ink to ensure the continuity of printing work.
9. Intelligent Air-heat Dryer , two-stage heating, middle warm air and smart start-stop technology, ensure the drying performance and more energy-saving at the same time.
10. Air Shaft Media Feeding and Take-up System. When working it's not necessary to fix the printing media with other accessories, just use the pressure of air to adjust automatically,which can offer uniform force to make the paper movement smoother. This system has the characteristics of
1. large load bearing capacity.
2. long service life.
3. Uniform force on media feeding and collecting.
4. Short aeration and deflation operation time, etc.
11. Intelligent Foggy Printing & VSDT Printing. Unique two-dimension intelligent foggy and wave-foggy function, and effective banding elimination in printing,improve printing quality obviously.VSDT variable droplet techonology can offer the smallest droplet as 3.5PL to the largest droplet as 27PL, then achieve the prefect printing quality.
WIDE APPLICATION
FAQ
Q: I don't know your website well, how can I trust you?
A: Zhengzhou New Century Digital Technology Co., Ltd has launched online business for selling Eco Solvent
Printer, Solvent Printer, UV Printer, Digital Textile Printer almost 15 years and established customers over 168
countries and areas. We are the Gold Supplier of Alibaba almost 13years, and the verified user of PayPal as
well as approved by SGS certification.
Q: How can I know if it is paid successfully?
A: We will send you a payment confirmation email upon receiving your payment
Q: How long can I receive the items?
A: Normally speaking, we will spend 5-7 days to prepare the order and if it requires longer time, we will inform
you as soon as possible. The general shipping time will be 15 - 30 days by seacargo.
Q: How to receive my order? Is it safe during shipping?
A: For the items you purchased, we will arrange shipping by sea or international express delivery to ship and
usually the carriers are DHL, FedEx, TNT, and UPS. It shall be quite safe during shipping by sea or air. Additionally,
we will purchase insurance as a guarantee for your order.
Q: How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?
A: We will send you the Bill of Lading or tracking number after shipping your items, hereby please keep on checking
your email.
Q: What is Warranty Policy
A: We provide 15 months warranty. During the warranty if electronic parts or motor is faulty, our company will give you
replacing parts for free and help you to change the faulty parts. When the warranty expired, our company will still
give you technician support for free. The only difference is the replacing part no longer free. So, we provide lifelong
after sale service to you as long as you use our printer. Especially, you can gain the lifelong Warranty for your large
format digital inkjet printer with continuously ink order.
All products on our website are made by the best manufacturers in China and the quality is guaranteed by the China
Ink-jet Printing Association. Although low cost products are the most popular, but our products are selected with high
quality and high production standards and affordable price. We can supply assembly spare parts with every machine
and guarantee their functioning for at least 12 months.
