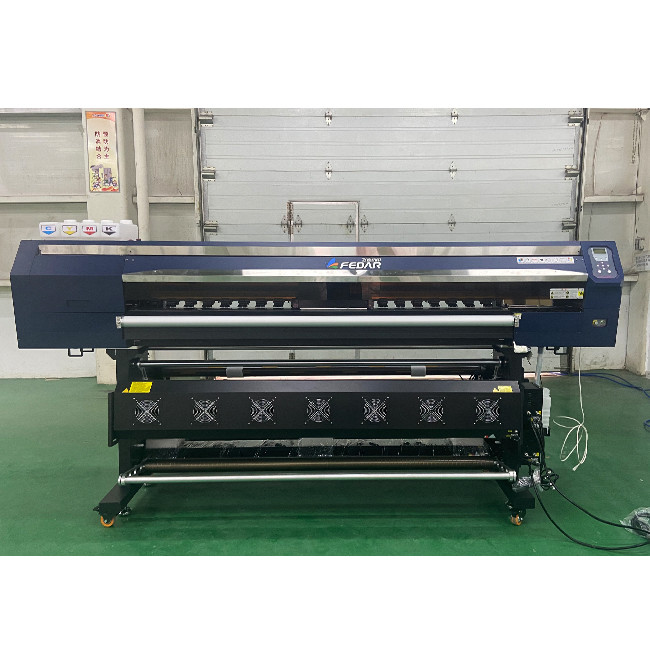

CE 6 Head Four Pigment Sublimation Textile Printer

  • CE 6 Head Four Pigment Sublimation Textile Printer
  • CE 6 Head Four Pigment Sublimation Textile Printer
Place of Origin China
Brand Name Fedar
Certification CE
Model Number TC1946
Packaging Details Wooden Crate
Supply Ability 200 sets per months
Product Details
Head EPS On I3200-A1 Head Quantity 6
RIP Software Neostampa, Photoprint Print Width 1900mm
Color CMYK Ink Type Sublimation Ink, Water Based Pigment Ink
Warranty 1 Year Motor Leadshine
High Light

Four Pigment Sublimation Textile Printer

,

6 Head Sublimation Textile Printer

,

CE Sublimation Textile Printer
Leave a Message
Product Description

TC1946 Hot Sale Sublimation Textile Printer Four Pigment Colors Continuous Inkjet Printer On Sales

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so on. It prints

on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic printing and dye sublimation ink

make the pattern colors bright, strong and fantastic.



Hot Sale Sublimation Textile Printer Four Pigment Colors Continuous Inkjet Printer Parameters

TC1946 Sublimation Printer
Printhead
EPS on I3200-A1
Nozzle Quantity
3200
Printhead Quantity
6
Print Width
1900mm
Ink Color
CMYK
Print Height
2-5mm

Resolution
360*1200/360*1800/
720*1200/720*1800(DPI)

Media Transfer
Auto Media Feeding and
Taking-up System, Roll to Roll



Speed
*Tested on linear printing without feather function
2pass / 200㎡/h
Drying Method
Extra Dryer Device
4pass / 120㎡/h
Ink Supply Method
Siphon Positive Pressure Ink Supply
6pass / 60㎡/h
Head Moisture
Method
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function

Print Media

Transfer Paper
Ink Type
Sublimation Ink,
Water based Pigment Ink
Transmission
Interface
Gigabit LAN
Computer System
Win7, Win8, Win10
File Forms
TIFF, JPG, EPS, PDF, etc.
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

3900*1340*1920mm

Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.9000W

Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard Configuration
Ink Level Alarm System





TC1946 Hot Sale Sublimation Textile Printer Four Pigment Color Printer Feature

* THK Guide Rail:

Adopt Japan THK silent linear guide makes the carriage movement is more stable and the life is longer.

* Printhead:

EPS on I3200-A1 printhead adopts TFP technology,with the smallest droplet 2.5PL,variable dots technology,can ensure perfect

and high resolution printing performance.

* Platform:

Platform adopts 8mm aluminimum alloy,which can reduce the shape variables during transportation.

* Pinch Roller:

Specially designed pinch roller to ensure more accurate media movement.

* Leadshine Motor:

Leashine server motor driver,high resolution and stable.



Fedar Sublimation Textile Printer Deatil

CE 6 Head Four Pigment Sublimation Textile Printer 0



1. Capping Maintenance

Printer adopt automatic cleaning and capping system which makes the operation and maintenance more

convenient.

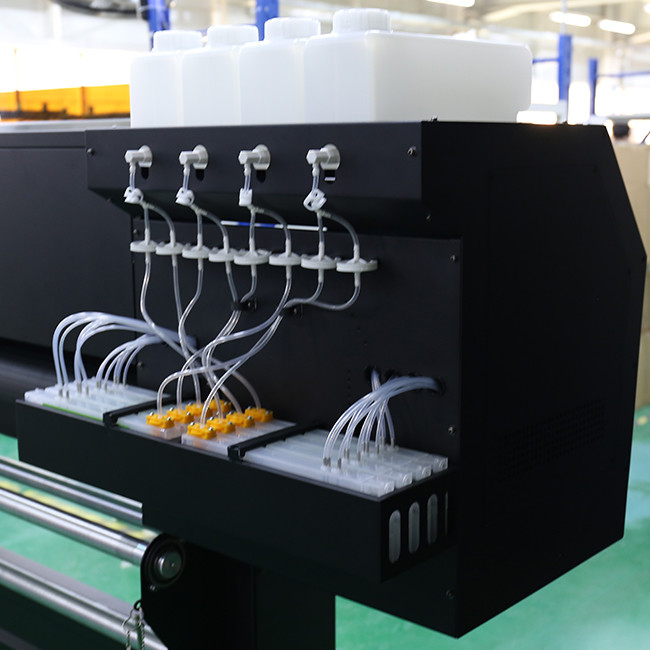

2. Ink Tank

Adopt sub-tank ink supply system,make sure long time printing,more stable.

3. Drying System

Intelligent infrared heating & blowing external dryer accelebrates media drying speed.

4. Feed & Take-up System

Dual motor is more stable for paper feed & take-up.



Fedar TC1946 Inkjet Sublimation Printer Application

Dye Sublimation Textile Printer can support print different gsm transfer paper, 45 to 100 gsm, and transfer on
polyester(contton<30%) Sportswear, curtain, dress, shoes, carpet, silk, bed sheet, etc.

CE 6 Head Four Pigment Sublimation Textile Printer 1
