Blanket 3.2m Fedar Sublimation Printer For Polyester Dress

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD5328E
Minimum Order Quantity 2 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Type Eps I3200-A1 Quantity 8
Printhead Resolution 3200dpi Print Width 3.2m
Ink Water Based Ink RIP Software Maintop,Photoprint,Neostampa,Onyx,etc
Warranty 1 Year
High Light

3.2m Fedar Sublimation Printer


Polyester Dress Fedar Sublimation Printer


Blanket Fedar Sublimation Printer

Leave a Message
Product Description

3.2m Fedar Sublimation Printer Clothing Printing Machine With 8 Pcs Eps On I3200-A1 Heads

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and

so on. It prints on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic

printing and dye sublimation ink make the pattern colors bright, strong and fantastic.


Fedar Sublimation Printer Clothing Printing Machine Parameter

FD5328E Fedar Transfer Printing Printer
Type:8 pcs Epson I3200-A1 Micropiezo Printhead
Head Property:Auto-clean and moisturize
Tested on linear print without feather
1 pass 420sqm/h
2 pass 210sqm/h
Printing Width
Sublimation Ink Color:CMYK
Moisture Mode:Auto-capping Pump Moisture
Transfer Paper
RIP Software
Image Format
Computer System
Win7, Win8, Win10
Transmit Port
Gigabit LAN
Extra Dryer Device

Computer Hardware Configuration
Hard Disk: NTFS, C Disk Space: More than 100G,
HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory:4G,CPU: Inte I5/I7, G-Ethernet
Ink Level Alarm System, Air Shaft Feeding and Taking-up Media System
Work Environment
Temperature:25-35℃ Humidity:35-65%
210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max 3500W

Transfer Paper Sublimation Printer Feature

1. Fully enclosed ink stack, tighter airtight, long-lasting moisturizing, automatic cleaning, cleaner and simpler

2. 4.5L large-capacity ink cartridges, matched with 4 500ml secondary float buffer ink cartridges; automatic alarm for

main ink cartridge level detection
3. Servo motor, 400W motor, large driving force, faster speed and more stable operation.
4. Anti-collision frame: The position of the nozzle can be adjusted according to different printing consumables, and

anti-collision devices are added at both ends to provide more comprehensive safety protection for the nozzle.
5. Expansion type self-locking synchronous wheel structure to ensure uniform step accuracy and smaller error
6. Inflatable shaft type rewinding and unwinding system: The rewinding and unwinding system can rewind 1000 meters

of paper. It has the characteristics of large load-bearing weight, long service life, uniform loading and rewinding force,

and short inflating and deflating operation time. The unique swing lever in the rewinding and unwinding system ensures

that the paper is evenly stressed during the entire printing process, and the rewinding is smooth and firm.

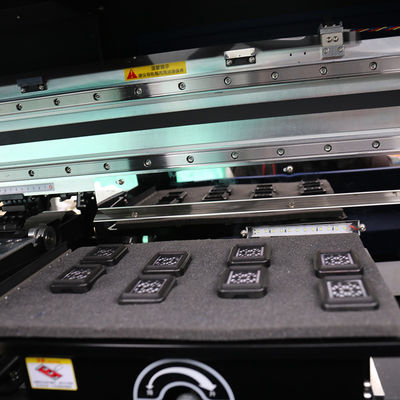

Digital Inkjet Printing Machine For Sublimation Detail


Blanket 3.2m Fedar Sublimation Printer For Polyester Dress 0

Digital Inkjet Printing Machine Application


Blanket 3.2m Fedar Sublimation Printer For Polyester Dress 1
