Aluminum Beam 3.2m Digital Inkjet Printing Machine

Place of Origin China
Brand Name Skycolor
Certification CE
Model Number SC-320TS
Packaging Details Standard Wooden Box
Supply Ability 200 sets per month
Product Details
Usage 3.2m Material Heads 2/3/4
Head Type Dx5 Or I3200A1 RIP Photoprint
Grade Industrial Level Print Width 3200mm
Beam Aluminum Motor Leadshine
Ink Double CMYK Ink Type Eco Solvent Ink, Water Based Pigment Ink
Warranty 12 Month Driver Leadshine
High Light

3.2m Digital Inkjet Printing Machine


Aluminum Beam Inkjet Printing Machine


Double CMYK Inkjet Printing Machine

Leave a Message
Product Description

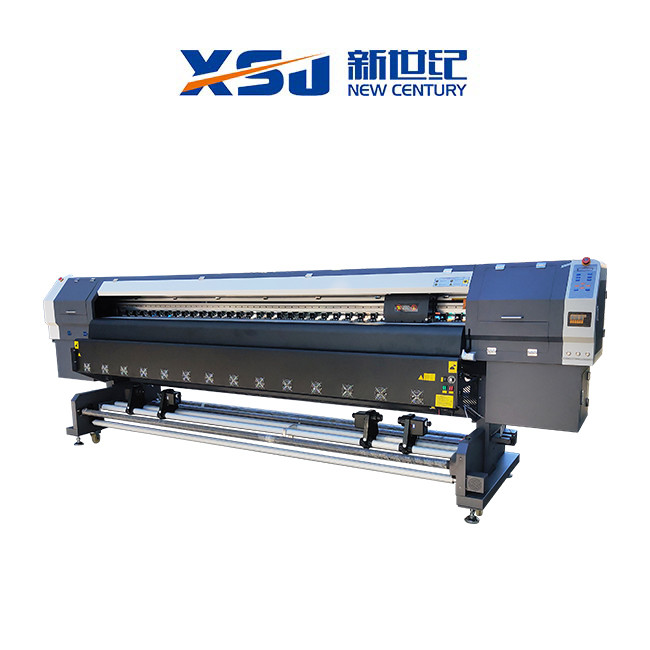

3.2m Skycolor Highspeed Industrial Digital Inkjet Printing Machine

Eco solvent printer is for advertising products, such as car sticker, PVC, PP synthetic paper, flex banner and

so on. Available to water based ink, eco solvent ink, uv ink. Epson I3200-A1 and Epson F1440-A1 are optional.


Highspeed Industrial Digital Inkjet Printer Parameter

SC-320TS Digital Inkjet Printing Machine For Advertising
Printhead Type: Eps on L1440-A1 Micropiezo Printhead
Number of Nozzles: 1440(1PC)
Resolution: 1440DPI
Head Clean: Auto cleaning, flash and Moisturizing
Type: Eps on I3200-A1 Micropiezo Printhead
Number of Nozzles: 3200(1PC)
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing
Quantity 2 3 2 3
Print Speed
*Tested on linear printing without feather function
4pass 32 sqm/h 45 sqm/h 2pass 80 sqm/h 124 sqm/h
6pass 26 sqm/h 31 sqm/h 3pass 55 sqm/h 85 sqm/h
8pass 18 sqm/h 24 sqm/h 4pass 42 sqm/h 63 sqm/h
      6pass 30 sqm/h 44 sqm/h
Print Width 3200mm
Ink Type Type: Water-based ink(Dye or Pigment), Eco Solvent Ink, Sublimation Ink
Print Media PP, PVC, Vinyl, Flex Banner, Backlit, Mesh, etc.
Rip Software Maintop6.0, Photoprint19, Onyx 19
Image Format JPG, TIFF, BMP, PDF, etc.
Computer System Win7,Win8,Win10
Transmit Port USB 2.0 / USB 3.0
Computer Cofigiration Hard Disk: 500G or more, GPU: ATI Mobility
Radeon, Memory: 4G or above
CPU: Intel 4 I5 processor or above
Optional Device Heat System: Extra Dryer Device
Take up System: Auto
Working Environment Temp.:15℃-30℃, Humidity: 35℃-65℃
Power Supply 50/60HZ, 220V, 5A
Machine Size Machine Size: 4680*1130*1490mm
Printer Packing Size: 4815*1100*1650mm
Machine Weight 750kg


Skycolor Highspeed Industrial Inkjet Printer Advantages


*  Printer adopt F1440-A1 printheads, resolution high, reach 1440dpi.


*  The X and Y direction both use Leadshine servo motor which ensure the stable and durable.


*  Carriage height is adjustable, with max printing height of 10mm, which can print more type materials.


*  There is not any space between rails and bearings, let the carriage move more fluent, with more low noise,

low resistance, low vibration, which unsure prolong the working life of printer.


*  Friendly user control panel, bring you happy moon.


*  Equipped platen LED lamp for clearly observing the print quality.


*  Using Intelligent board connect way and looks more tidy and easier do maintenance.


*  Support 3 sets taking-up media and feeding media system which can meet different weight material printing.


*  Industrial beam and print level design.


Aluminum Beam 3.2m Digital Inkjet Printing Machine 0



Skycolor Highspeed Industrial Inkjet Printing Machine Detail


Aluminum Beam 3.2m Digital Inkjet Printing Machine 1


1.Capping Station:

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well

and keep the ink flow fluently.

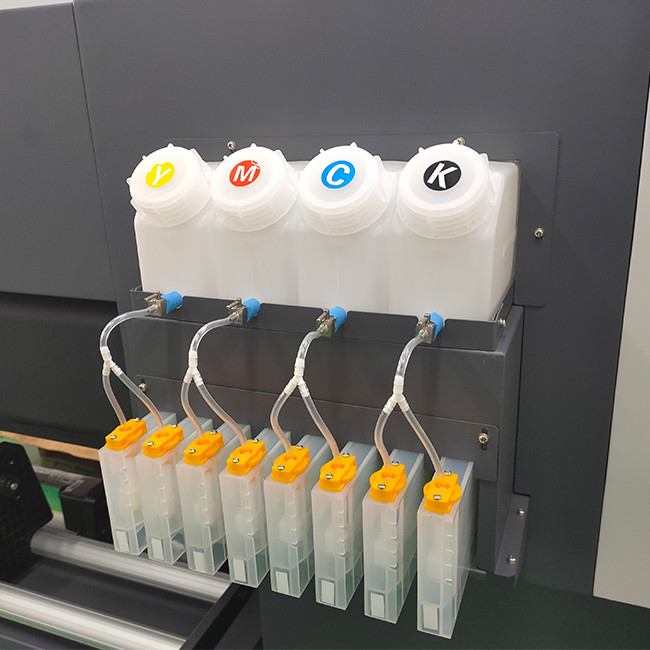

2.Ink Tank:

Bulk tanks with 3L capacity and small sub-tanks with valves provide continuous ink supply and convenience

on tank maintenance.


Leadshine brushless integrated servo motors are used on both X and Y dir. giving accurate movement controlling.

4.Drying System:

Intelligent infrared heating & blowing external dryer accelebrates media drying speed, meanwhile heating and

printing can be synchronous to reduce the energy waste.

5.Feed & Take-up System:

Dual-motor take-up unit is standard equipped.

6.Pinch Roller:

Multi-row pinch rollers made of Dupont rubber ensure the accurate movement of media.


Highspeed Industrial Inkjet Printer Application

Applications for 320TS
Water-based materisl: PP/Backlit film/ Photo paper/ Vinyl/ Flex Banner/ Movable self-adhesive vinyl/ Polyester cloth.

Aluminum Beam 3.2m Digital Inkjet Printing Machine 2
