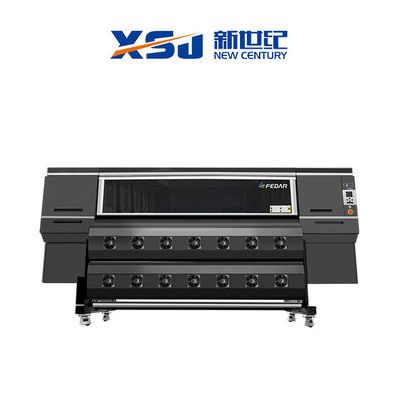

4pcs Epson 4720 Sublimation Textile Printer FD6194E

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD6194E
Packaging Details Standard Wooden Box
Supply Ability 200 sets per months
Product Details
Printhead 4720 Or I3200-A1 Head Quantity 2-4 Heads
Print Width 1.9m Ink Normal CMYK
Ink Type Sublimation Ink RIP Saftware Neostampa, Photoprint
Control System AT Board Grade Industrial
Loading Material 500m Transfer Paper Over 60gsm
Weight 780KG Machine Whole One Body Frame
High Light

Epson 4720 Sublimation Textile Printer


4pcs 4720 Sublimation Textile Printer


FD6194E Sublimation Ink printer

Leave a Message
Product Description

Popular Europe Standard Level Sublimation Textile Printer with 4pcs Ep son 4720 or I3200


Parameters for FD6194E Sublimation Textile Printer


FD6196E Sublimation Textile Printer
Printhead Epson4720 Nozzle Quantity 3200
Printhead Quantity 6(*8 is optical) Print Width 1900mm
Ink Color CMYK Print Height 2-5mm
Resolution 360*1200/360*1800/
Media Transfer Auto Media Feeding and
Taking-up System, Roll to Roll
*Tested on linear printing without feather function
2pass 200/h Drying Method Extra Dryer Device
4pass 120/h Ink Supply Method Siphon Positive Pressure Ink Supply
6pass 60/h Head Moisture
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function
Print Media Transfer Paper
Ink Type Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System Win7, Win8, Win10 File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃, Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Package Size 3900*1340*1920mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.9000W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard Configuration Ink Level Alarm System

4pcs Epson 4720 Sublimation Textile Printer FD6194E 0

Fedar Sublimation Printer FD6194E Features:



1. Uniquely design for printer carriage, more easier to operate and maintenance


2. Profesional 4 heads capping station---Exclusive printhead sequence design which can support 1pass print


3. Adop big wipper to save head cleaning time/ Add the capping staion light to help check the calibration between head and capping core position


4. Industril level--- THK guide rail, ensure carriage move faster and precisely, and eliminate motion noise


5. 45% titled mirror which is better design to check printhead surface directly


6. Choose intelligent anti-static pinch roller, avoding transfer paper from wrinkling. Add the ruler to help reset the print position


7. Using import Igus ink chain to eliminate noise


4pcs Epson 4720 Sublimation Textile Printer FD6194E 1


4pcs Epson 4720 Sublimation Textile Printer FD6194E 2


8. FD6194E 4 heads carriage configuration with Anti-Collision system which can protect the printhead well


4pcs Epson 4720 Sublimation Textile Printer FD6194E 3


9. Industrial Leadshin Servo Motor and Driver


4pcs Epson 4720 Sublimation Textile Printer FD6194E 4



Application for Textile Market


Sublimation Textile Printer mainly print on transfer paper which over 60gsm can used in Fedar FD6194E sublimation printer


4pcs Epson 4720 Sublimation Textile Printer FD6194E 5


Why this model is popular in overseas market?


1. This digital plotter using new network board and network port, which can let transmit speed more faster.


2. Beautiful and perfect control board wires connection.


3. Installed anti-collision system beside carriage, which can protect printhead safe.


4. Adjustable carriage height, and meet for different thickness material.
