Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xUsage | All Transfer Paper | Ink | Dye Sublimation Ink |
---|---|---|---|
Application Area | Polyester, Curtain, Sportswear | Head | 4720 Head |
Head Quantity | 2 | Print Width | 1.9m |
RIP Software | Neostampa, Photoprint, Maintop | Control Board | Hoson |
Computer | Win7/win8/win10 | Color | Double CMYK |
Guide Rail | THK | Motor | Leadshine |
Highlight | 4720 5113 Dye Sublimation Printer,1.9m Dye Sublimation Printer,Double CMYK Sublimation Printer |

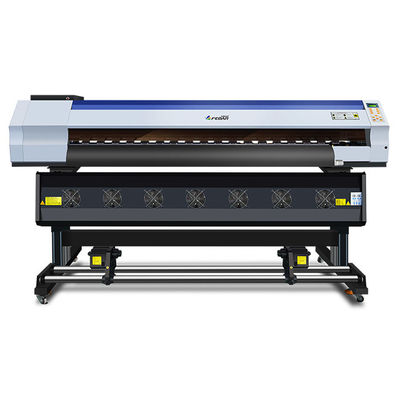

Classic Double 4720 or 5113 Heads Fedar Dye Sublimation Transfer Paper Printing Machine
2pcs 4720 Sublimation Model Parameters
FD1900 Dye Sublimation Printer | ||||
Printhead | Epson4720 | Nozzle Quantity | 3200 | |
Printhead Quantity | 2 | Print Width | 1900mm | |
Ink Color | CMYK | Print Height | 2-5mm | |
Resolution | 360*1200/360*1800/ 720*1200/720*1800(DPI) |
Media Transfer | Auto Taking-Up Meida Device | |
Speed *Tested on linear printing without feather function |
2pass | 98㎡/h | Drying Method | Extra Dryer Device |
3pass | 64㎡/h | Ink Supply Method | Siphon Positive Pressure Ink Supply | |
4pass | 50㎡/h | Head Moisture Method |
Auto Head Cleaning and Moisturize | |
6pass | 32㎡/h | Print Media | Transfer Paper | |
Ink Type | Sublimation Ink, Water based Pigment Ink |
Transmission Interface |
Gigabit LAN | |
Computer System | Win7, Win8, Win10(Professional) | File Forms | TIFF, JPG, EPS, PDF, etc. | |
Operate Environment | Temp.:15℃-30℃, Humidity: 35℃-65℃ | RIP Software | NeoStanpa,Ergosoft, Onyx,Photoprint,Maintop |
|
Package Size | 3250*960*1170mm | Power Supply | 210-230V, 50/60HZ, 16A Print Power: 1000W Dryer Power: Max.3500W |
|
Computer Configuration | Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU, Memory: 4G, CPU: Inte I5/I7, G-Ethernet |
|||
Standard Configuration | Ink Level Alarm System |
Feature
1. Double four-color printing,1.6m and 1.80m wide format output
2. Indoor and outdoor ink are both available, meeting different printing needs.
3. Multi-row pinch rollers ensure the machine can print with an accurate size of feeding media.
4. Printing resolution can reach to 1440dpi,even the word is small as 0.5mm.
5. Three different sizes of dots,achieving the complement of images,even under high speed or low resolution
Optional Items
1. Hiwin guide rail,more stable,longer working life,lower noise.
2. Imported dual direction motor,high-resolution driver linear encoder,higher resolution,fewer errors in length,more stable running.
3. Hi USB interface,transmission speed can reach to 480M/S,plug and play conveniently.
4. Adopt EPSON DX5 printhead,variable dots technology,1440DPI high resolution output.
5. VSDT variable droplet techonology,the smallest droplet is 3.5PL,largest droplet is 27PL,achieve the prefect printing quality.
6. Unique two-dimension intelligent eclosion and wave-eclosion function,elimination banding effectively in printing,improveing printing quality obviously.
7. Different kinds of printing mode,reach to 28m per hour in production mode.
8. High quality,clean,pump and moisturize automatically,which can also pump ink well and keep the ink flow fluently.
9. Four large ink reservoirs provide ink durably,keeping wide format high-speed printing wonderfully.
10. Adopt the most recommended ink in advertising industry,achieving fast drying,moisture-proofing and sticky-proofing.
