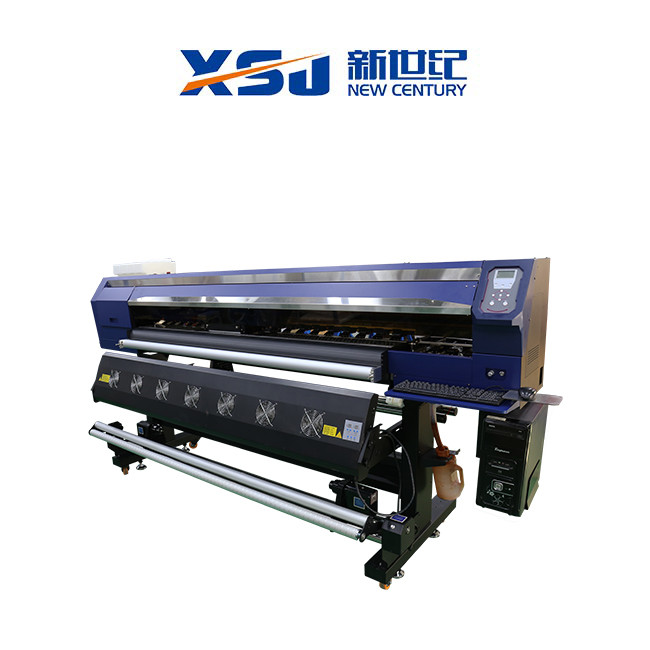

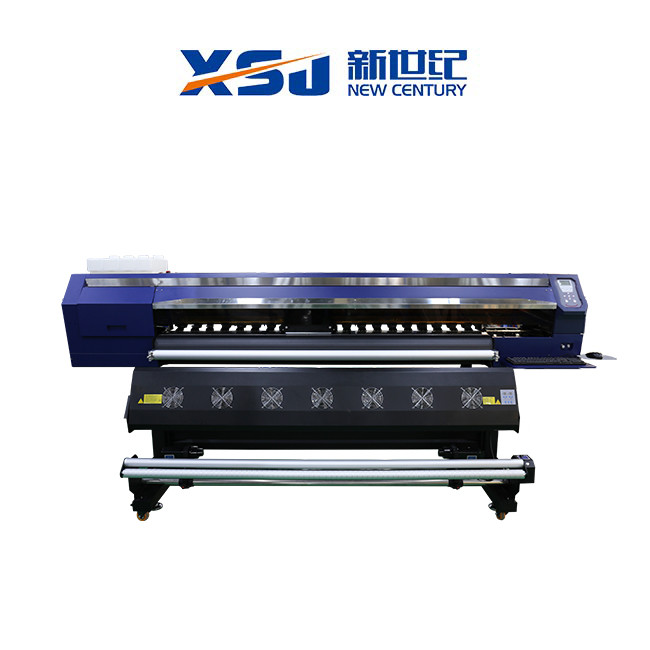

3 Head 1900mm Sublimation Fabric Heat Transfer Printer
Usage | Transfer Paper | Head | EPS On I3200-A1 |
---|---|---|---|
Head Quantity | 3 | RIP Software | Neostampa, Photoprint |
Print Width | 1900mm | Color | CMYK |
Ink Type | Sublimation Ink, Water Based Pigment Ink | Warranty | 1 Year |
Motor | Leadshine | ||
High Light | Sublimation Fabric Heat Transfer Printer,1900mm Heat Transfer Printer,TFP Heat Transfer Printer |
Fedar 4 Colors Digital Sublimation Fabric Printing Machine For Heat Transfer Printing
Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so on. It prints
on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic printing and dye sublimation ink
make the pattern colors bright, strong and fantastic.
Printhead Technology & Advantages
A.Printing width of EPS I3200-A1 head is 1.3 inch,about 30% wider than F1440-A1, 3200 nozzles(400*8lines),which has much
higher speed and resolution than F1440-A1.
B.EPS I3200-A1 printhead adopts TFP technology,with the smallest droplet 2.5PL,variable dots technology,can ensure perfect
and high resolution printing performance.
C.Low cost,each head is about 300-350USD,which helps client reduce investment cost to get more benefit!
D.Compared with Epson 5113 heads,the ink column makes hoses connection much easier and more simple,very convenient
maintenance.
Fedar 4 Colors Digital Sublimation Fabric Printing Machine Parameters
Fedar Sublimation Fabric Printer For Heat Transfer Printing Feature
* THK Guide Rail:
Adopt Japan THK silent linear guide makes the carriage movement is more stable and the life is longer.
* Printhead:
EPS on I3200-A1 printhead adopts TFP technology,with the smallest droplet 2.5PL,variable dots technology,can ensure perfect
and high resolution printing performance.
* Platform:
Platform adopts 8mm aluminimum alloy,which can reduce the shape variables during transportation.
* Pinch Roller:
Specially designed pinch roller to ensure more accurate media movement.
* Leadshine Motor:
Leashine server motor driver,high resolution and stable.
Fedar 4 Colors Digital Sublimation Fabric Printing Machine Deatil
1. Capping Station:
Printer adopt automatic cleaning and capping system which makes the operation and maintenance more
convenient.
2. Ink Tank:
Adopt sub-tank ink supply system,make sure long time printing,more stable.
3. Carriage:
The carriage equipped with anti-collision system can ensure the normal operation of the carriage.
4. Pinch Roller:
Multi-row independent pinch rollers,which can be lifted seperately,ensure the media moving without wrinkle.
Why Eps on I3200-A1 head is widely used on sublimation field rather than F1440-A1?
1. Epson I3200-A1 head has 8*400=3200 nozzles / Epson F1440-A1 head has 8*180=1440 nozzles
More nozzles mean higher speed.
2. Printhead Ignition frequency: Epson I3200-A1--16.7K, Ep son F1440-A1---14.4K
Ignition frequency means the dots sprayed from nozzles on media at unit interval time. Higher ignition
frequency means faster speed.
3. Printhead nozzle dot: Epson I3200-A1---3.8pl-7pl-12pl, Epson F1440-A1---3.5pl-6pl-12pl
Smaller dots can accumulate and form more different sizes of droplets and generate more gradation.
4. Electronic board.
Electronic boards greatly determine the printing speed and printer stability, AT boards are used on Fedar
printer for many years, excellent stability has won the favor from global customers.
Fedar 4 Colors Digital Sublimation Fabric Printing Machine Application
With help of heat transfer machine,printed images can be transfered to many different non-elastic material,
such as polyester and flag banner. No limit on the patterns makes it a good choice in decoration, garment and
advertising field.
