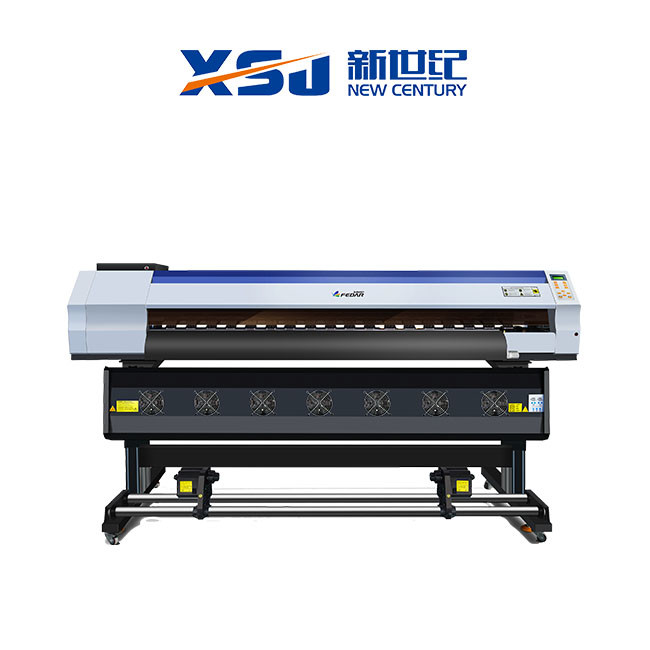

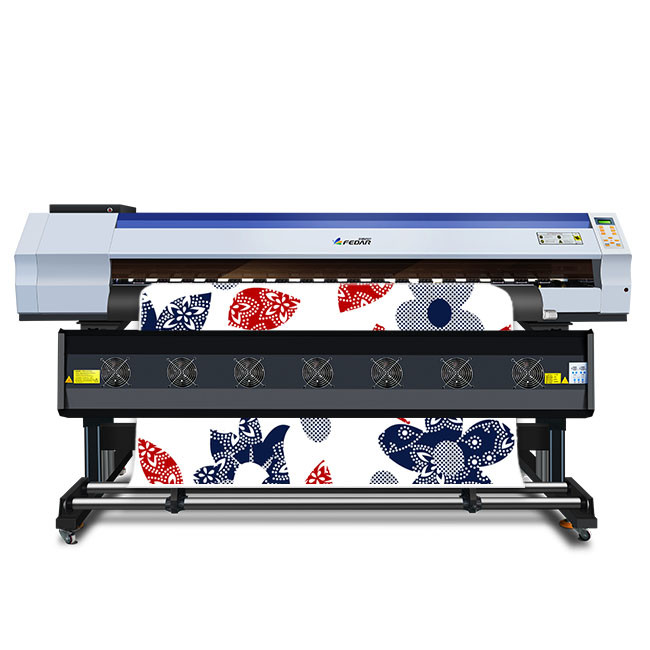

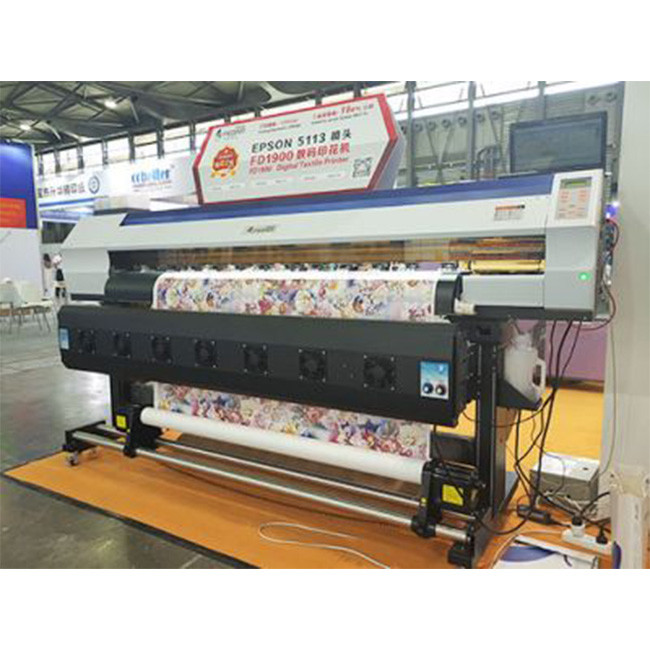

3200DPI FD1900 T Shirt Sublimation Printing Machine
|Application||Transfer Paper||Ink||Dye Sublimation Ink/Pigment Ink|
|Usgae||Polyester, Curtain, Sportswear||Print Head||4720|
|Head Quantity||2||Print Width||1.9M|
|RIP Software||Neostampa, Photoprint19, Maintop,ONYX19||Computer||Win7/win10|
|Color||Double CMYK||Guide Rail||THK|
FD1900 T Shirt Sublimation Printing Machine,
3200DPI T Shirt Sublimation Printing Machine,
3200DPI sublimation printer for shirts
Professional 1.8m factory tshirt sublimation printer/digital textile printing machine
|Printhead Quantity||2||Print Width||1900mm|
|Ink Color||CMYK||Print Height||2-5mm|
|Media Transfer||Auto Taking-Up Meida Device|
*Tested on linear printing without feather function
|2pass||98㎡/h||Drying Method||Extra Dryer Device|
|3pass||64㎡/h||Ink Supply Method||Siphon Positive Pressure Ink Supply|
|Auto Head Cleaning and Moisturize|
|6pass||32㎡/h||Print Media||Transfer Paper|
|Ink Type||Sublimation Ink,
Water based Pigment Ink
|Computer System||Win7, Win8, Win10(Professional)||File Forms||TIFF, JPG, EPS, PDF, etc.|
|Operate Environment||Temp.:15℃-30℃, Humidity: 35℃-65℃||RIP Software||NeoStanpa,Ergosoft,
|Package Size||3250*960*1170mm||Power Supply||210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W
|Computer Configuration||Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Inte I5/I7, G-Ethernet
|Standard Configuration||Ink Level Alarm System|
1. Adopt THK guide rail, which makes the printer more stable, longer working life, lower noise.
2. Bi-direction leadshine brushless motors, high-resolution driver linear encoder, higher resolution, fewer errors in length, more stable running.
3. Adopt low ink warning alarm and waste ink alarm.
4. Adopt the fiber cable transmission line, fast speed without interference.
5. Golden Fine-tuning carriage, adjust the head position according to the different media.
6. Use Igus chain, better to protect data cable and fiber optic cables, and ensure work more stable.
7. Adopt anti-collision function, If there is something on platform or material bulges, the carriage will stop moving and protect the heads. .
8. Use international standard aviation socket and the leakage protector meets with requires of rapidity and stability.
9. Automatic heater with 6 adjustable temperature optional, keep pace with the printer, safe and convenient, reduce energy costs.
10. Continuous ink supply system to ensure work constantly.
11. The boards (mainboard& carriage board) adopt imported packaged chip, to make sure work stably for a long time.
Q: I don't know your website well, how can I trust you?
A: Zhengzhou New Century Digital Technology Co., Ltd has launched online business for selling Eco Solvent
Printer, Solvent Printer, UV Printer, Digital Textile Printer almost 15 years and established customers over 168
countries and areas. We are the Gold Supplier of Alibaba almost 13years, and the verified user of PayPal as
well as approved by SGS certification.
Q: How can I know if it is paid successfully?
A: We will send you a payment confirmation email upon receiving your payment
Q: How long can I receive the items?
A: Normally speaking, we will spend 5-7 days to prepare the order and if it requires longer time, we will inform
you as soon as possible. The general shipping time will be 15 - 30 days by seacargo.
Q: How to receive my order? Is it safe during shipping?
A: For the items you purchased, we will arrange shipping by sea or international express delivery to ship and
usually the carriers are DHL, FedEx, TNT, and UPS. It shall be quite safe during shipping by sea or air. Additionally,
we will purchase insurance as a guarantee for your order.
Q: How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?
A: We will send you the Bill of Lading or tracking number after shipping your items, hereby please keep on checking
Q: What is Warranty Policy
A: We provide 15 months warranty. During the warranty if electronic parts or motor is faulty, our company will give you
replacing parts for free and help you to change the faulty parts. When the warranty expired, our company will still
give you technician support for free. The only difference is the replacing part no longer free. So, we provide lifelong
after sale service to you as long as you use our printer. Especially, you can gain the lifelong Warranty for your large
format digital inkjet printer with continuously ink order.
All products on our website are made by the best manufacturers in China and the quality is guaranteed by the China
Ink-jet Printing Association. Although low cost products are the most popular, but our products are selected with high
quality and high production standards and affordable price. We can supply assembly spare parts with every machine
and guarantee their functioning for at least 12 months.
