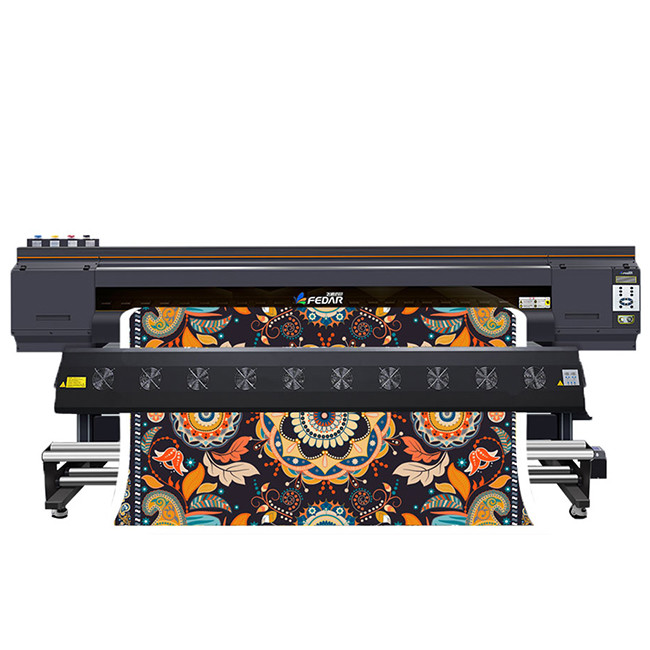

3200dpi 2600mm Poster Paper Sublimation Ink Printer

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD5263E
Minimum Order Quantity 2 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Type Epson I3200-A1 Quantity 3
Printhead Resolution 3200dpi Print Width 2.6m
Ink Sublimation Ink Media Transfer Paper,Poster Paper
RIP Software Maintop,Photoprint,Neostampa,Onyx,etc Warranty 12 Months
High Light

2600mm Sublimation Ink Printer


Poster Paper Sublimation Ink Printer


Dye Sublimation Ink Printer

Leave a Message
Product Description

Hot Selling CMYK Fedar Sublimation Printing Plotter Transfer Paper Sublimation Printer

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and

so on. It prints on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic

printing and dye sublimation ink make the pattern colors bright, strong and fantastic.


The Sublimation Printing Process

*    So how does sublimation work? Well, sublimation printing uses heat to essentially bring ink and fabric

together as one.First, a design is printed onto special paper. The inks that are used turn into gas when

brought under heat, then combine with the fabric and permanently print onto the fabric. The effects are

permanent and less prone to fading, as the ink is embedded in the fabric or substrate rather than simply

laying on top like a normal print.

*    The process is almost like a tattoo, but instead of for your skin, it’s for your chosen product. The heat

opens up the pores of the fabric, then with the applied pressure the ink cools and returns to a solid form.

*    The result is a permanent, full colour image that won’t crack, peel or wash away from the substrate.

The process allows the ink to go from a solid to a gas without turning to liquid, a bit like dry ice. The conversion

is initiated by heat and controlled by pressure.

*    This quick and effective digital print method is growing in popularity for smaller batch orders and those

designs that rely on the details. Sublimation printing is also known as ‘all over printing’ as it allows you to

choose a design that can literally go from seam to seam.


3200dpi 2600mm Poster Paper Sublimation Ink Printer 0


Fedar Sublimation Printing Plotter Parameter

Printer Model FD5263E-3200
Printhead Type EPS3200 ( 3 Epson 4720 )
Nozzle Qty 800*4lines*3pcs printheads
Height to Platform 2-5mm
Printing Speed Production Mode 3pass/360*1800dpi 90sqm/h
Average Mode 4pass/720*1200dpi 75sqm/h
High Resolution Mode 6pass/720*1800dpi 50sqm/h
Ink Color C M Y K
Type Dye Sublimation
supply method Siphoning
Max Printing Width 2600mm
Printing Media Transfer Paper
Media Transfer Method Dual-drive tension take-up system,Auto air shaft feeding system
Drying Method External,Intelligent and air-heat Integrated drying system
Moisture Mode Fully sealed auto moisturing and cleaning
RIP Software Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc.
Image Format JPG,TIF,PDF,BMP and etc.
Computer System WIN7 64bit/WIN10 64bit
Hardware Hard disk:500G (system disk more than 100G)
GPU:ATI Discrete
Memory:4G or more
CPU:Intel i5/i7 processor
Transmit Port Gigabit LAN
Work Environment Temperature 20-35 centi degree; Humidity 35-65%
Power Input Voltage 210-230VAC 50/60HZ 16A
Printing system 1200W
Drying system Max power 3600W
Dimension Printer Dimension 3790*880*1640mm
Packing Dimension 3940*1185*1805mm
Weight Net Weight N/A
Gross Weight N/A


Hot Selling Transfer Paper Sublimation Printer Feature

*  Advanced Capping Station

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink

perfectly and keep the ink flow fluently.

*  Intelligent Ink Alarm system

Reduces the tediousness of frequently checking the remaining amount of ink,and  reminds to add ink timely

to ensure ink supply.

*  Intelligent Foggy Printing&VSDT

Printing Unique two-dimension intelligent foggy and wave-foggy function and VSDT variable droplet technology,

improve printing quality obviously.

*  Stable Media Feeding and Take-up System

Convenient and fast,the printing media is easy to  stored,equipped with auto paper measurement and anti-rubbing

function,the consumables are warped,printing is automatically paused to prevent scratching the printhead.

*  Wide Application

With the help of heat transfer machine,printed images can be transferred to many different non-elastic material,

such as polyester,chiffon,silk and flag banner.No limit on the patterns makes it a good choice in decoration,

garment and advertising field.


Fedar Sublimation Sublimation Printer Detail

3200dpi 2600mm Poster Paper Sublimation Ink Printer 1


1.Capping Station:

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well

and keep the ink flow fluently.

2.Ink Tank:

Adopt two-level ink supply system, continuous printing for a long time to ensure the output quality of the picture.

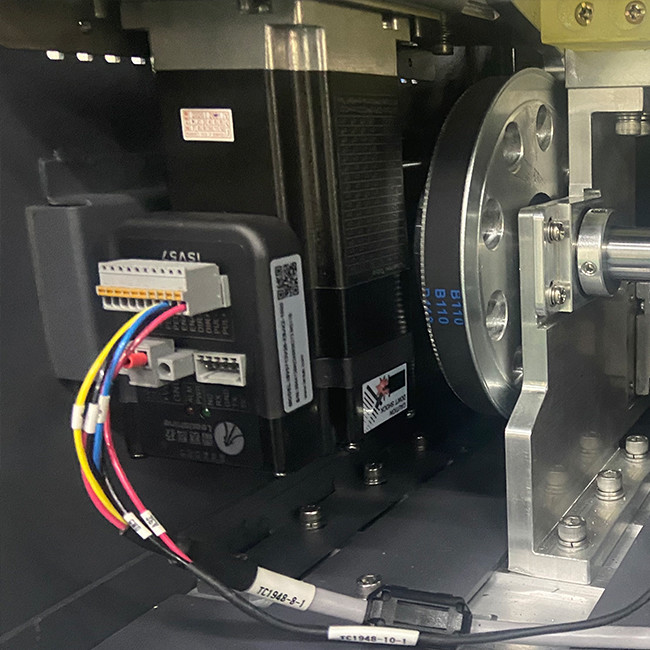

3.Pinch Roller:

US fluororubber pressure roller prevents static electricity from flying ink, prints more accurately and rejects wrinkles.


Name brand Leadshine motor makes the synchronous wheel turn more smoothly.



Digital Inkjet Printing Machine Application

Sublimation transfer is widely used on digital polyester printing, which is vivid on color, no need make plate,no waste

generated, no quantity request, even small quantity of order or customized order can be processed.


3200dpi 2600mm Poster Paper Sublimation Ink Printer 2
