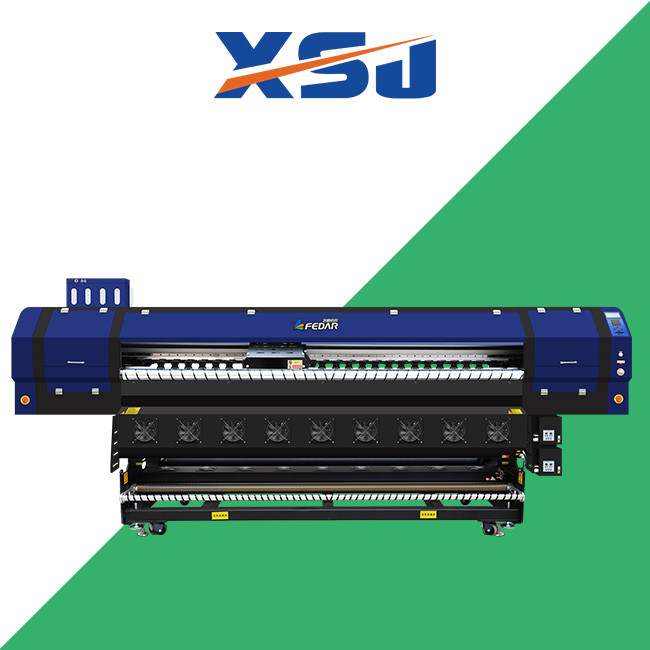

2.6m Wide Format Fedar Sublimation Printer With 8 Heads

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD5268E
Minimum Order Quantity 2 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Type Epson I3200-A1 Quantity 8 Pcs
Ink Color CMYK Ink Type Dye Sublimation Ink,Pigment Ink
Printing Width 2600mm Printing Height 2-5mm
Computer System WIN7 64bit/WIN10 64bit Media Transfer Paper ,Poster Paper
RIP Software Maintop, Photoprint,Neostampa,Onyx,etc. Warranty 1 Year
Resolution 3200dpi
High Light

Wide Format Fedar Sublimation Printer

,

2.6m Fedar Sublimation Printer

,

8 Heads Fedar Sublimation Printer

Leave a Message
Product Description

2021 Hot Sale 2.6m Multifunction Wide Format Fedar Sublimation Printer

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so on.

It prints on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic printing and

dye sublimation ink make the pattern colors bright, strong and fantastic.



2.6m Multifunction Wide Format Fedar Sublimation Parameter

Printer Model FD5268E
Printhead Type EPSON I3200-A1
Nozzle Qty 8pcs printheads
Height to Platform 2-5mm
Printing Speed 1pass 350sqm/h
2pass 160sqm/h
Ink Color C M Y K
Type Dye Sublimation
supply method Siphoning
Max Printing Width 2600mm
Printing Media Transfer Paper
Media Transfer Method Dual-drive tension take-up system,Auto air shaft feeding system
Drying Method External,Intelligent and air-heat Integrated drying system
Moisture Mode Fully sealed auto moisturing and cleaning
RIP Software Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc.
Image Format JPG,TIF,PDF,BMP and etc.
Computer System WIN7 64bit/WIN10 64bit
Hardware Hard disk:500G (system disk more than 100G)
GPU:ATI Discrete
CD-ROM:DVD ROM
Memory:4G or more
CPU:Intel i5/i7 processor
Transmit Port Gigabit LAN
Work Environment Temperature 20-35 centi degree; Humidity 35-65%
Power Input Voltage 210-230VAC 50/60HZ 16A
Printing system 1200W
Drying system Max power 3600W
Dimension Printer Dimension 3790*880*1640mm
Packing Dimension 3940*1185*1805mm



Wide Format Fedar Sublimation Printer Feature

8 Epson I3200-A1 printhead,1 pass speed can reach up to 350㎡/h.

Adopt two-level ink supply system to ensure continuous printing for a long time.

* Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds

to add ink in time.

Convenient and fast, the printing media is quickly stored, equipped with automatic paper measurement and

anti-rubbing function.

* The fully-closed capping station with automatic lifting, tighter sealing and long-term moisturizing. Automatic

cleaning settings make printing cleaning simpler.

Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable droplet technology,

improve printing quality obviously.



FEDAR Wide Format Fedar Sublimation Printer Detail

2.6m Wide Format Fedar Sublimation Printer With 8 Heads 0

1.Specially Designed Car

The position of the print head can be adjusted according to different printing medias, and anti-collision devices

at both ends.

2.​Intelligent Air-heat Dryer

The intelligent drying system is synchronized with printing.The temperature can be adjusted in real time

during the printing process.

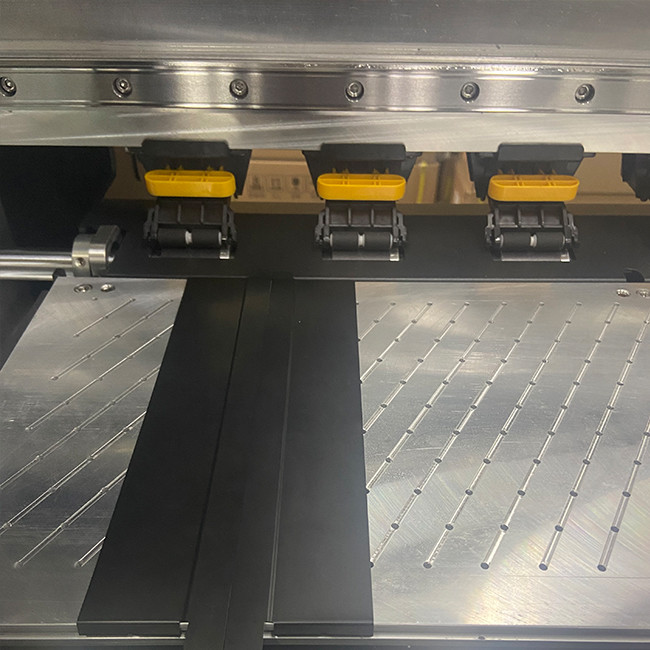

3.Pinch Roller

US fluororubber pressure roller prevents static electricity.The unique lifting device can respond to the

phenomenon of partial paper bulging during the printing process.

4.High Precision Platform

The printing platform is controlled within ±7.5 wires and the surface hard oxidation treatment, no deformation for

a long time.

5.Germany IGUS Ink Chain

Imported Germany IGUS ink chain,high quality, to ensure the good completion of printing work.



2.6m Fedar Sublimation Textile Printer Application

2.6m Wide Format Fedar Sublimation Printer With 8 Heads 1
