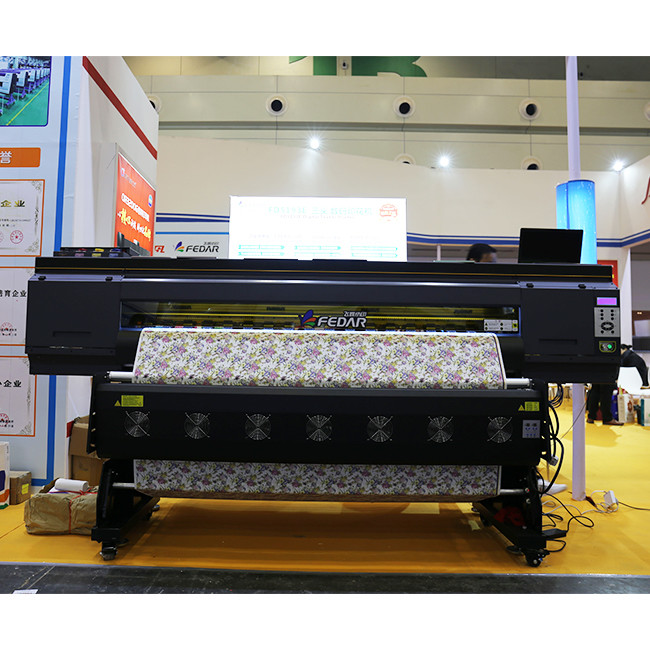

200Sqm/H Fedar Transfer Paper Sublimation Textile Printer

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD5196E
Minimum Order Quantity 1 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Type Eps On I3200-A1 Quantity 6 Pcs
Printhead Resolution 3200DPI Printing Speed 200Sqm/h
Print Width 1900mm Ink Dye Ublimation Ink,Pigment Ink
Media Transfer Paper,Poster Paper RIP Software Maintop,Photoprint,Neostampa,Onyx,etc
Warranty 12 Months
High Light

Fedar 5196E Sublimation Textile Printer


200Sqm/h Sublimation Textile Printer


Transfer Paper Sublimation Textile Printer

Leave a Message
Product Description

Fedar 5196E Sublimation Fabric Printing Machine With Eps I3200-A1

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so on. It prints on

sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic printing and dye sublimation ink make

the pattern colors bright, strong and fantastic.
About printhead, it can be Epson 5113, Epson I3200-A1 and Epson F1440-A1.


Sublimation Fabric Printing Machine With Eps I3200-A1 Parameters

FD5196E Fedar Sublimation Transfer Paper Printing Printer

Type:6pcs Epson I3200-A1
Head Property:Auto-clean and moisturize
Tested on linear print without feather
2pass 200㎡/h
4pass 120㎡/h
6pass 60㎡/h

Printing Width

Sublimation Ink Color:CMYK
Moisture Mode:Auto-capping Pump Moisture
Transfer Paper
RIP Software
Maintop6.0/Photoprint 12/Onyx 18
Image Format
Computer System
Win7 Win10
Transmit Port
Gigabit LAN
Extra Heating System
Media Transfer
Double Power Take up Media System
Computer Hardware Configuration
Hard Disk.:500G GPU:ATI Discrete GPU
CD-ROM:DVD ROM Memory:4G or more than 4G CPU:Intel i5 processor
Optional Device
Ink Level Alarm System Auto Tension Take-up Media System
Work Environment
Temperature:25-35℃ Humidity:35-65%
210-230VAC Frequency:50/60 HZ RC:16A Printer:1200W Dryer:9000W
Machine Size
Machine Size:3710*1500*1940mm Package Size:3860*1130*1130mm



Fedar Sublimation Fabric Printing Machine Feaure

High Precision Printhead:

Adopt Epson I3200-A1 with 3200 nozzles,which can improve the printing speed greatly.

High-end Software:

Using international high-end software, the drawing is more realistic.

Intelligent Ink Starving Alarm:

Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds to add ink in time to ensure the continuity of printing work.

Intelligent Foggy Printing & VSDT Printing:

Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable droplet techonology, improve printing quality obviously.

Using Advanced Capping Station:

Equipped with advanced intelligent printhead cleaning and moisturizing device, providing safe and convenient printhead cleaning and maintenance functions, more convenient operation and maintenance.


Fedar 5196E Sublimation Fabric Printer Detail

200Sqm/H Fedar Transfer Paper Sublimation Textile Printer 0


1. Capping Station:

Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well

and keep the ink flow fluently.

2. Guide Rail:

Using Japanese THK mute linear guide rail,the movement is more stable and the life is longer.


The X and Y direction both use Leadshine servo motor which ensure the stable and durable.

4.Drying System:

Three ways heating system,front,middle and back individual,improve the printing quality.

5.Feed & Take up System:

Industrial taking-up media and feeding media motor.

6.Ink Tank:

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which

guarantees the long-term continuity of ink output.


Application For Fedar 5196E New And Advanced Sublimation Fabric Printer

200Sqm/H Fedar Transfer Paper Sublimation Textile Printer 1
