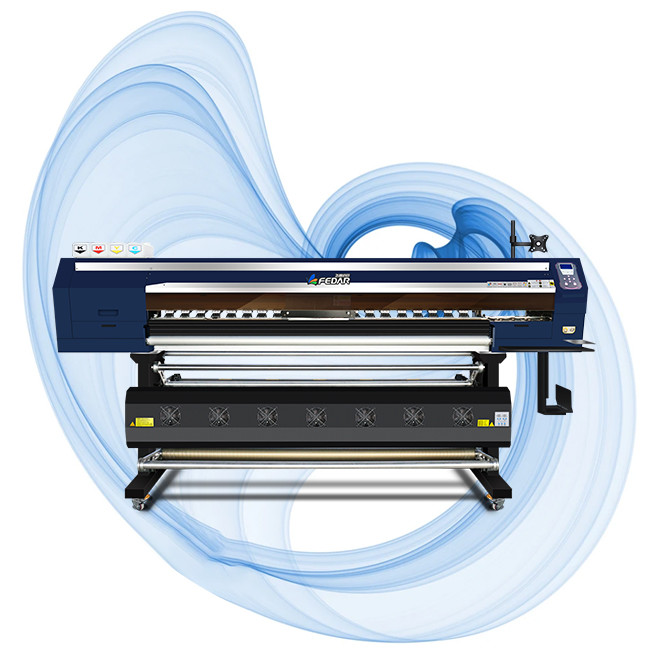

1.9m Sublimation Textile Printer Wide Format Polyester Fabric Printing Machine

Place of Origin China
Brand Name Fedar
Certification CE
Model Number TC1946
Minimum Order Quantity 5 Set
Packaging Details Wooden Crate
Supply Ability 200 sets per months
Product Details
Head EPS On I3200-A1 Head Quantity 6
RIP Software Neostampa, Photoprint Print Width 1900mm
Ink Type Sublimation Ink, Water Based Pigment Ink Head Moisture Method Auto Head Cleaning
High Light

1.9m Sublimation Textile Printer

,

6 head Sublimation Textile Printer

,

1.9m Polyester Fabric Printing Machine

Leave a Message
Product Description

1.9m Sublimation Textile Printer Wide Format Digital Polyester Textile Printing Machine

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so on. It prints

on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic printing and dye sublimation ink

make the pattern colors bright, strong and fantastic.



Sublimation Textile Printer Wide Format Digital Polyester Textile Printer Parameters

TC1946 Sublimation Printer
Printhead
EPS on I3200-A1
Nozzle Quantity
3200
Printhead Quantity
6
Print Width
1900mm
Ink Color
CMYK
Print Height
2-5mm

Resolution
360*1200/360*1800/
720*1200/720*1800(DPI)

Media Transfer
Auto Media Feeding and
Taking-up System, Roll to Roll



Speed
*Tested on linear printing without feather function
2pass / 200㎡/h
Drying Method
Extra Dryer Device
4pass / 120㎡/h
Ink Supply Method
Siphon Positive Pressure Ink Supply
6pass / 60㎡/h
Head Moisture
Method
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function

Print Media

Transfer Paper
Ink Type
Sublimation Ink,
Water based Pigment Ink
Transmission
Interface
Gigabit LAN
Computer System
Win7, Win8, Win10
File Forms
TIFF, JPG, EPS, PDF, etc.
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

3900*1340*1920mm

Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.9000W

Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard Configuration
Ink Level Alarm System





Sublimation Textile Printer Wide Format Textile Printing Machine Feature

* High Precision Printhead:

Adopt Epson I3200-A1 with 3200 nozzles,which can improve the printing speed greatly.

* High-end Software:

Using international high-end software, the drawing is more realistic, Neostampa, Photoprint, Onyx, Maintop.
* Intelligent Ink Starving Alarm:

Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds to add ink in time to ensure the continuity of printing work.
* Intelligent Foggy Printing & VSDT Printing:

Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable droplet techonology, improve printing quality obviously.

* Using Auto Capping Station:

Equipped with advanced intelligent printhead cleaning and moisturizing device, providing safe and convenient printhead cleaning and maintenance functions, more convenient operation and maintenance.

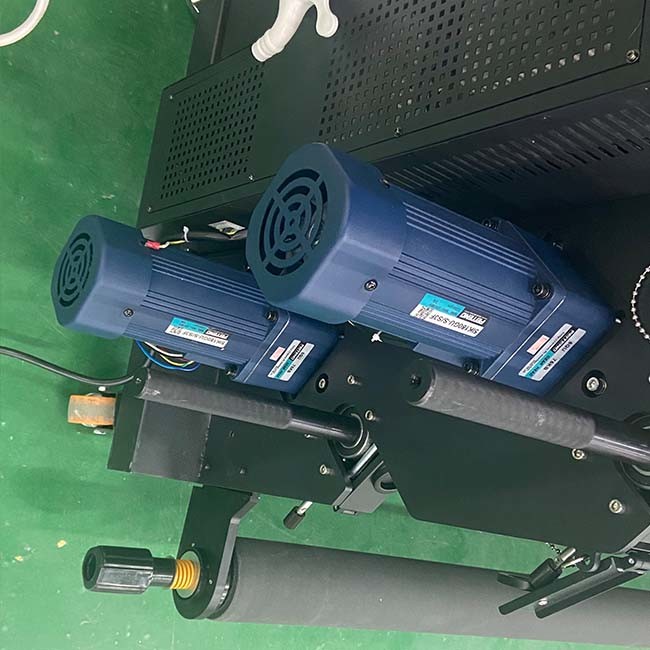

* Air Shaft Feeding and Taking-up Media System:

Convenient and fast, the printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function, the consumables are warped, printing is automatically paused to prevent scratching the printhead.

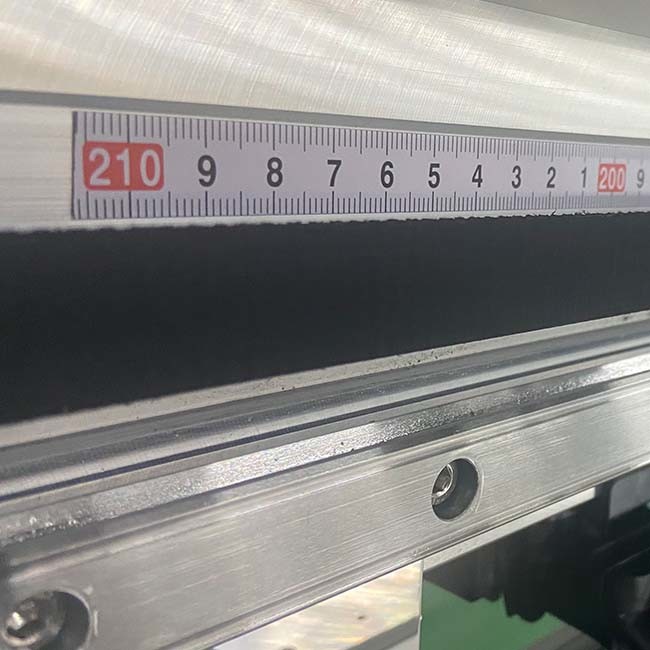

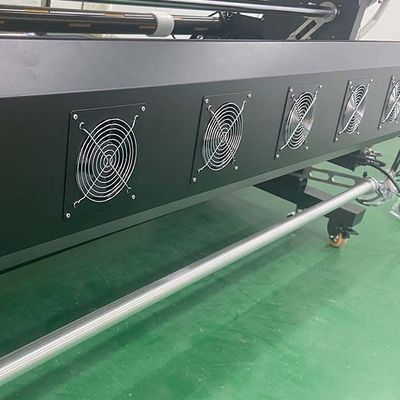

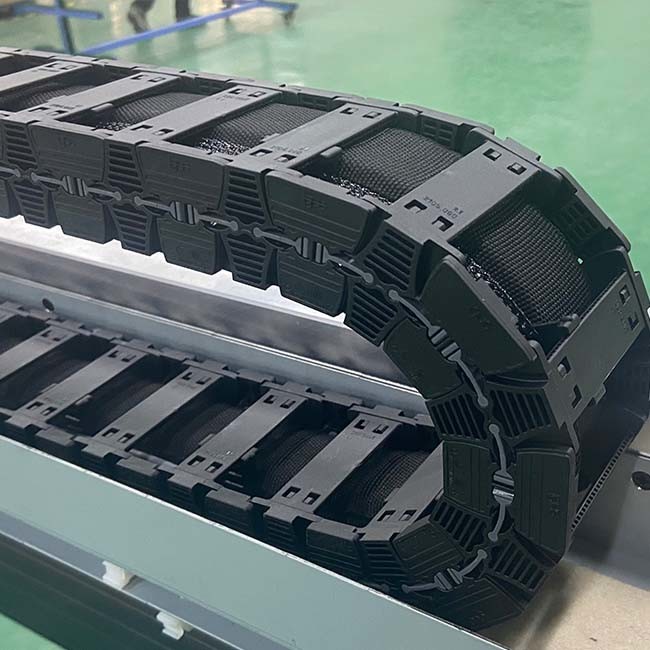

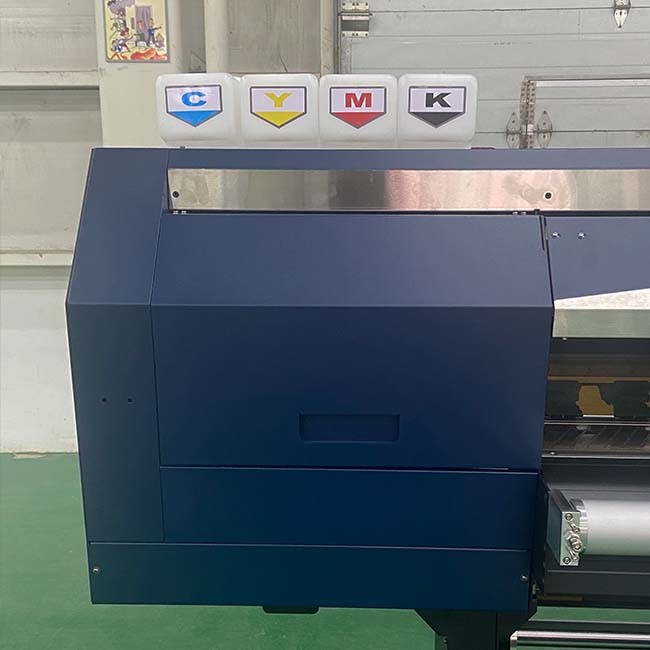

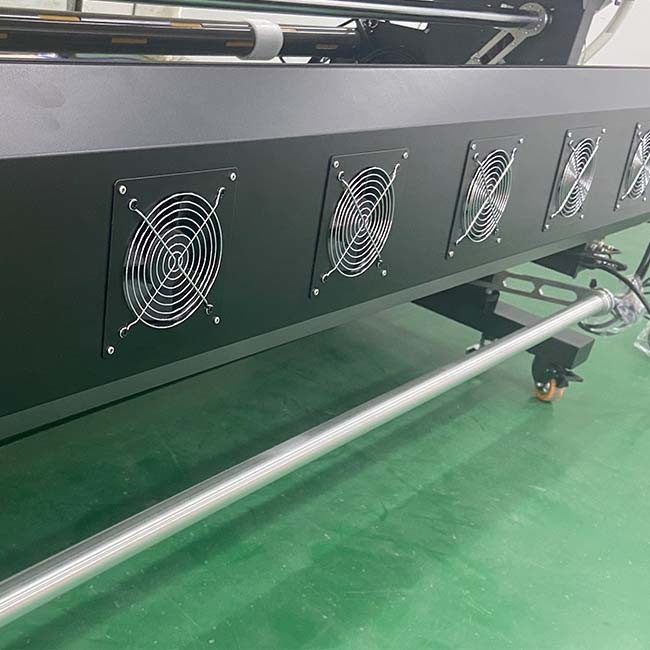

Sublimation Textile Printer Details

1.9m Sublimation Textile Printer Wide Format Polyester Fabric Printing Machine 0



Application

Dye Sublimation Textile Printer can support print different gsm transfer paper, 45 to 100 gsm, and transfer on
polyester(contton<30%) Sportswear, curtain, dress, shoes, carpet, silk, bed sheet, etc.

1.9m Sublimation Textile Printer Wide Format Polyester Fabric Printing Machine 1
