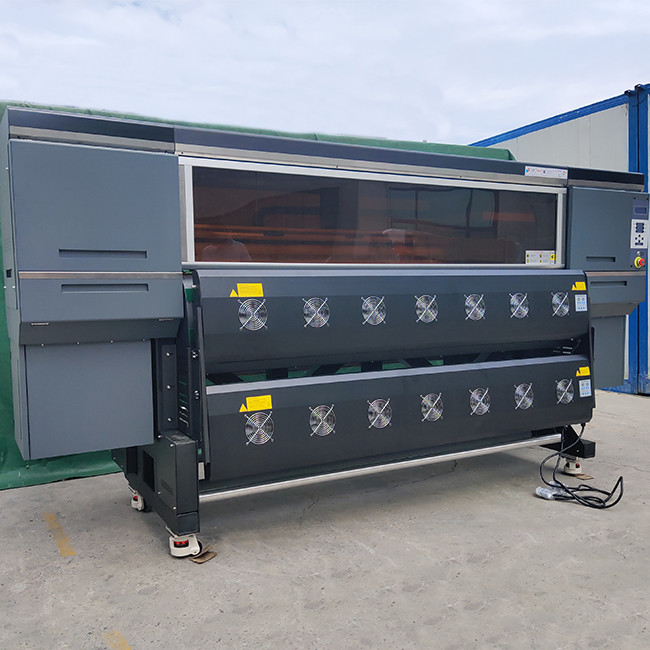

1.9m Sublimation Fabric Wide Format Printer 150sqm/h

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD6194E
Minimum Order Quantity 5 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead EPS I3200-A1 Printhead Quantity 4 Pcs
Printing Speed 150 Sqm/h Ink Type Sublimation Ink, Pigment Ink
RIP Software Maintop,Photoprint,Neostampa,Onyx,etc Computer System Win7,Win8,Win10
High Light

Sublimation Fabric Wide Format Printer


1.9m Sublimation Wide Format Printer


150sqm/H Wide Format Printer

Leave a Message
Product Description

1.9m Multicolor Wide Format Printer Sublimation Fabric Printing Machine

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so

on. It prints on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic

printing and dye sublimation ink make the pattern colors bright, strong and fantastic.Inkjet sublimation uses

specially formulated inks and a heat-transfer process to fuse printed designs and images with the polymers

in polyester fabrics. Inkjet sublimation printing is much more widely used than the toner-based sublimation



Multicolor Wide Format Printer Sublimation Fabric Printing Machine Parameters

textile roller printing machine subliamtion textile printer
Epson I3200-A1
Nozzle Quantity
Printhead Quantity
Print Width
Ink Color
Print Height
Media Transfer
Auto Media Feeding and
Taking-up System, Roll to Roll
*Tested on linear printing without feather function
Drying Method
Extra Dryer Device
Ink Supply Method
Siphon Positive Pressure Ink Supply
Head Moisture Method
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function
Print Media
Transfer Paper
Ink Type
Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System
Win7, Win8, Win10
File Forms
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
Package Size
Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.7000W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard Configuration
Ink Level Alarm System



FEDAR Wide Format Printer Sublimation Fabric Printing Machine Feature

*  Intelligent Foggy Printing & VSDT Printing mode

Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable droplet techonology,

improve printing quality obviously.

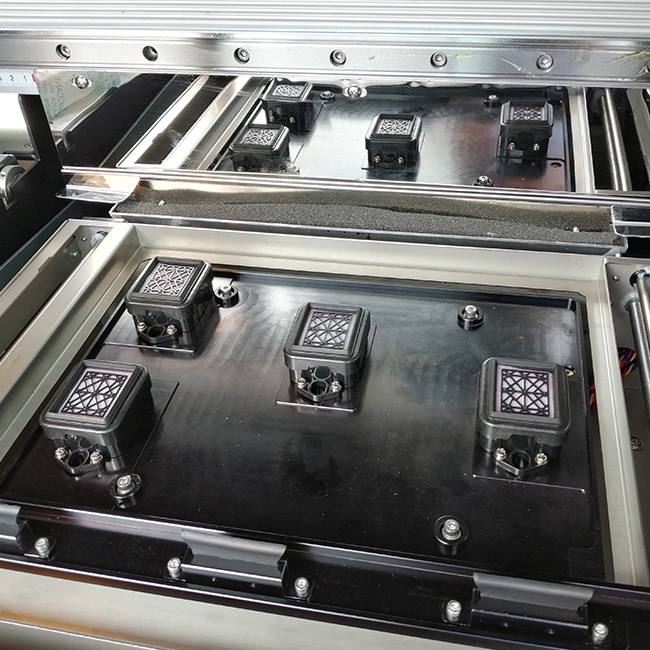

*  Adopt Advanced Capping Station

Equipped with advanced intelligent printhead cleaning and moisturizing device, providing safe and convenient

printhead cleaning and maintenance functions, more convenient operation and maintenance.

*  Adopt Stable Media Feeding and Take-up System

More convenient, media is easy to stored,equipped with automatic paper measurement and anti-rubbing function,

the consumables are warped,printing is automatically paused to prevent scratching the printhead.

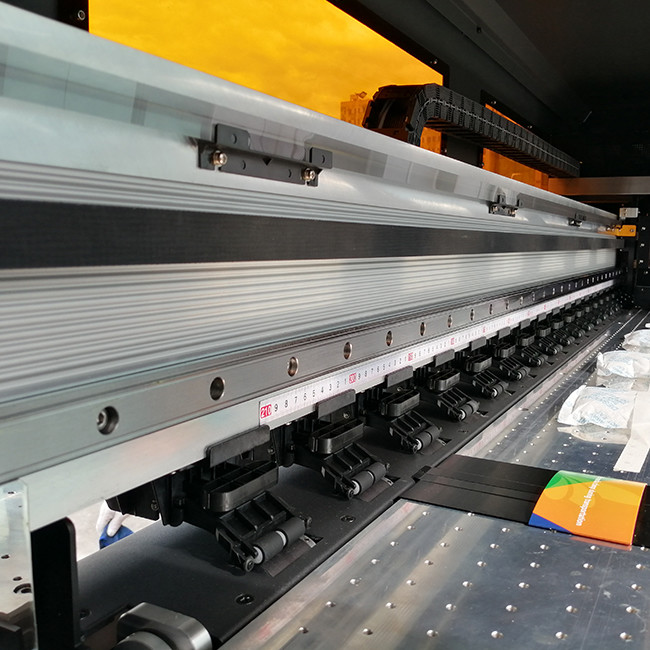

Wide Format Printer Sublimation Fabric Printing Machine Detail

1.9m Sublimation Fabric Wide Format Printer 150sqm/h 0


Dye Sublimation Printing For Businesses: What Product Can You Print On?

Rigid Substrates – Polymer treated objects that include non-fabric items like glass, plastic, fiberglass, and

aluminum.These are products that aren’t bendable like fabrics.

Blank Rigid Products – Many of these materials are available to buy in bulk at wholesale prices, like custom

mouse pads,cell phone cases, and drinkware. They are sometimes referred to as “blanks”, which are products

without any designs or printing included so that personalization can be added.

Signage – Perfect for “click to print” e-commerce businesses. Easily print on vinyl to create retractable banners

and other trade show displays. When seeing signs hanging in front of shops or buildings, there’s a good chance

that sublimation was used.

Polyester Fabrics – One of the most popular items to dye sublimate. They are divided into two types:

(1)Knit: Polyester products that hang & flow in their natural environment, like apparel, flags, banners, and custom

printed table covers.

(2)Woven: More durable products such as custom tote bags fabric backdrops, and custom tents.

Home Decor – The dye-sub process is often used by businesses that sell to interior designers. Decor items like

ceramic floor tiles are a popular choice for bathrooms, kitchens, restaurants, & more.

Photograph Printing – Arguably the best way to produce the highest-quality photographic images on canvas,

magnets, and apparel.


FD6194E Printing Machine Wide Application

Sublimation transfer is widely used on digital polyester printing, which is vivid on color, no need make plate,no waste

generated, no quantity request, even small quantity of order or customized order can be processed.

1.9m Sublimation Fabric Wide Format Printer 150sqm/h 1
