1.9m FD6194E Sublimation Textile Printer Digital Printing Machine For Clothes

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD6194E
Minimum Order Quantity 5 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Epson I3200-A1 Heads Printing Speed 150sqm/h
Ink Type Sublimation Ink, Pigment Ink,water Based Ink RIP Software Maintop,Photoprint,Neostampa,Onyx,etc
Print Width 1900mm Print Height 2-5mm
High Light

FD6194E Sublimation Textile Printer


1.9m Sublimation Textile Printer


1.9m Digital Printing Machine

Leave a Message
Product Description

1.9m FD6194E Sublimation Textile Printer Digital Printing Machine For Clothes

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so

on. It prints on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic

printing and dye sublimation ink make the pattern colors bright, strong and fantastic.



FD6194E Sublimation Textile Printer Digital Printing Machine Parameters

textile roller printing machine subliamtion textile printer
Epson I3200-A1
Nozzle Quantity
Printhead Quantity
Print Width
Ink Color
Print Height
Media Transfer
Auto Media Feeding and
Taking-up System, Roll to Roll
*Tested on linear printing without feather function
Drying Method
Extra Dryer Device
Ink Supply Method
Siphon Positive Pressure Ink Supply
Head Moisture Method
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function
Print Media
Transfer Paper
Ink Type
Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System
Win7, Win8, Win10
File Forms
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
Package Size
Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.7000W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard Configuration
Ink Level Alarm System


Wide Format Printer Sublimation Detail

1.9m FD6194E Sublimation Textile Printer Digital Printing Machine For Clothes 0

* Printheads:

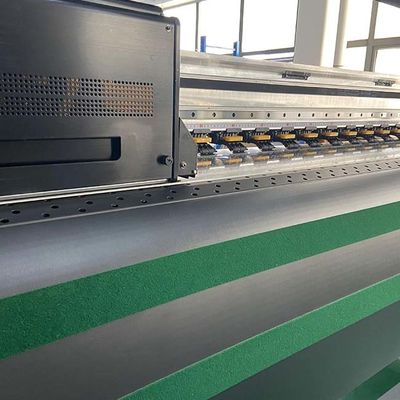

Fedar FD6194E Digital Sublimation Printer uses Four Epson original I3200-A1 printing heads. Its nozzle has 4 pairs of nozzle holes, a total of 8 columns, each column has 400 nozzle holes, that is totally including 3200 nozzle holes, max resolution: 3200DPI.

* Capping Station:

Equipped with advanced intelligent printhead cleaning and moisturizing device,operation and maintenance is more convenient.

* Carriage:

The distance between printhead and printing platform can be adjusted freely according to different printing consumables. Anti-collision devices are added at both ends to provide more comprehensive safety protection for printheads.

* Platform:

The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production.

* Ink Tank:

FD6194E Digital Sublimation Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

* THK Guide Rails:

More stable running,longer working life,lower noise.higher resolution,and fewer errors in length.

*  Leadshine Motor:

Both the servo and stepping systems are driven by high-quality brushless integrated Leadshine motor with high-precision linear decoding, smaller error,higher precision and more stable operation.


Printing Process

1.9m FD6194E Sublimation Textile Printer Digital Printing Machine For Clothes 1

FD6194E Printing Machine Wide Application

Sublimation transfer is widely used on digital polyester printing, which is vivid on color, no need make plate,no waste

generated, no quantity request, even small quantity of order or customized order can be processed.

1.9m FD6194E Sublimation Textile Printer Digital Printing Machine For Clothes 2
