1.9m FD5193E Wide Format Plotter Printer Transfer Paper With High Speed

  • 1.9m FD5193E Wide Format Plotter Printer Transfer Paper With High Speed
  • 1.9m FD5193E Wide Format Plotter Printer Transfer Paper With High Speed
  • 1.9m FD5193E Wide Format Plotter Printer Transfer Paper With High Speed
  • 1.9m FD5193E Wide Format Plotter Printer Transfer Paper With High Speed
  • 1.9m FD5193E Wide Format Plotter Printer Transfer Paper With High Speed
  • 1.9m FD5193E Wide Format Plotter Printer Transfer Paper With High Speed
  • 1.9m FD5193E Wide Format Plotter Printer Transfer Paper With High Speed
Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD5193E
Minimum Order Quantity 2 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Type Epson I3200-A1 Quantity 3
Printhead Resolution 3200dpi Printing Speed 120Sqm/h
Media Transfer Paper,Poster Paper RIP Software Maintop,Photoprint,Neostampa,Onyx,etc
Media Transfer Auto Tension Taking-Up Media Device Transmission Interface Gigabit LAN
High Light

1.9m Wide Format Plotter Printer

,

FD5193E Wide Format Plotter Printer

,

FD5193E large format plotter printer
Leave a Message
Product Description

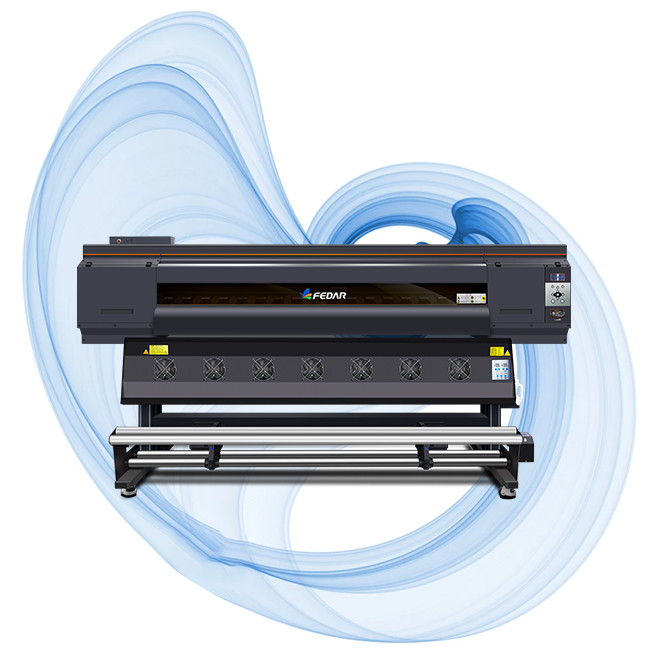

1.9m FD5193E Wide Format Plotter Transfer Paper Sublimation Inkjet Printer With High Speed

Our sublimation printer is used to make textiles, such as blankets, polyester clothing, plush toys, etc

Open. It prints on sublimated paper and then transfers the heat of the pattern to the fabric you want. Automatic

printing .And dye sublimation ink makes the pattern colorful, strong and strange.



Wide Format Plotter Transfer Paper Sublimation Inkjet Printer  Parameter

sublimation printer Inkjet printers
Printhead
Epson I3200-A1
Nozzle Quantity
3200
Printhead Quantity
3
Print Width
1900mm
Ink Color
CMYK
Print Height
2-5mm
Resolution
360*1200/360*1800/
720*1200/720*1800(DPI)
Media Transfer
Auto Tension Taking-Up Media Device


Speed
*Tested on linear printing without feather function
2pass
120㎡/h
Drying Method
Extra Dryer Device
3pass
85㎡/h
Ink Supply Method
Siphon Positive Pressure Ink Supply
4pass
65㎡/h
Head Moisture Method
Auto Head Cleaning and Moisturize
6pass 45㎡/h
Print Media
Transfer Paper
Ink Type
Sublimation Ink,
Water based Pigment Ink
Transmission
Interface
Gigabit LAN
Computer System
Win7, Win8, Win10
File Forms
TIFF, JPG, EPS, PDF, etc.
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
NeoStampa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

3250*960*1170mm

Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max 3500W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory:4G,CPU: Inte I5/I7, G-Ethernet
Standard Configuration
Ink Level Alarm System



Transfer Paper Sublimation Inkjet Printer With High Speed Feature

*   Printhead: 3*EPS I3200-A1
*   Printhead Resolution: 3200DPI
*   Printing Speed: 120 sqm/h
*   Print Width:1900mm
*   Ink: Dye Sublimation Ink,Pigment Ink
*   Media:Transfer Paper ,Poster Paper
*   RIP Software: Maintop, Photoprint,Neostampa,Onyx,etc.



* High Precision Printhead:

Adopt Epson I3200-A1 with 3200 nozzles,which can improve the printing speed greatly.

* Advanced Capping Station:

Fedar FD5193E Wide Format Sublimation Printer equipped with advanced intelligent nozzle cleaning and moisturizing device,providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.
* Intelligent Foggy Printing & VSDT Printing:

Unique two-dimension intelligent foggy and wave-foggy function,and VSDT variable droplet technology,improve printing quality obviously.
* Ink Starving Alarm:

Reduces the tediousness of frequently checking the remaining amount of ink,and at the same time reminds to add ink in time to ensure the continuity of printing work.
* Stable Media Feeding and Take-up System:

Fedar FD5193E wide format sublimation printer synchronized with printing, energy saving and emission reduction, the temperature can be adjusted according to the actual situation during printing.

​

1.9m FD5193E Wide Format Plotter Transfer Paper Sublimation Inkjet Printer With High Speed Detail

1.9m FD5193E Wide Format Plotter Printer Transfer Paper With High Speed 0



Applications



1.9m FD5193E Wide Format Plotter Printer Transfer Paper With High Speed 1
