1.9m CMYK Fedar Sublimation Printer Digital Fabric Printing Machine

Place of Origin China
Brand Name Fedar
Certification CE
Model Number FD1900
Minimum Order Quantity 5 Set
Packaging Details Export Wooden Crate
Delivery Time 7-10 Work Days
Supply Ability 200 Per Month
Product Details
Printhead Epson I3200-A1 Quantity 2 Pcs
Ink Color CMYK Print Width 1900mm
Ink Type Sublimation Ink,Water Based Pigment Ink RIP Software NeoStanpa,Ergosoft, Onyx,Photoprint,Maintop
Computer System Win7,Win8,Win10 Warranty 12 Months
High Light

1.9m CMYK Fedar Sublimation Printer

,

98m2/h Digital Fabric Printing Machine

,

VSDT Fedar Sublimation Printer

Leave a Message
Product Description

1.9m CMYK Fedar Sublimation Printer Digital Fabric Printing Machine For Sale

Our sublimation printer is used to make textile products, such as blanket, polyester dress, plush toys and so on.

It prints on sublimation papers first, then heat transfer the pattern to the fabric you want. Automatic printing and

dye sublimation ink make the pattern colors bright, strong and fantastic.



Digital Fabric Printing Machine Feature

* Inkjet printer for transfer paper printing has 2 Pcs I3200-A1 printhead ,2 pass can reach to 98 sqm.

* Finished aluminum platform for longer service life.
* The extra intelligent drying system is synchronized with printing.The temperature can be adjusted in real time
during the printing process.
* Imported Germany IGUS ink chain,high quality to ensure the good completion of printing work.
* Using Japan THK mute linear guide rail,the movement is more stable and the life is longer.


Sublimation Printing on Fabric

*  There are several things to learn when using dye sublimation on fabrics for items like, T-shirts, dresses, tablecloths,

custom tents, etc. “All-over” designs where a pattern or image covers the entire print are a popular option when using this process, as it’s easy to do.

*  Some hindrances that can occur when printing on fabric is that random white creases can appear on the printed fabric.

This is usually due to not setting the transfer paper correctly, causing it to be folded over or become wet. One must be

attentive when setting up prints for sublimating.

*  Also, if someone wanted their graphic to be slightly textured, this kind of printing isn’t the right choice as it’s for replicating

the look, not the feel. One must use their best judgement when choosing a design to appear on a shirt.



1.9m CMYK Fedar Sublimation Printer Digital Fabric Printing Machine 0



1.9m CMYK Fedar Sublimation Printer Digital Fabric Printing Machine 1

CMYK Fedar Sublimation Printer Digital Fabric Printing Machine Parameter

Fedar FD1900 Inkjet Printer

Printhead
Epson I3200-A1
Nozzle Quantity
3200
Printhead Quantity
2
Print Width
1900mm
Ink Color
CMYK
Print Height
2-5mm
Resolution
360*1200/360*1800/
720*1200/720*1800(DPI)
Media Transfer
Auto Taking-Up Meida Device


Speed
*Tested on linear printing without feather function
2pass
98㎡/h
Drying Method
Extra Dryer Device
3pass
64㎡/h
Ink Supply Method
Siphon Positive Pressure Ink Supply
4pass
50㎡/h
Head Moisture
Method
Auto Head Cleaning and Moisturize
6pass
32㎡/h
Print Media
Transfer Paper
Ink Type
Sublimation Ink,
Water based Pigment Ink
Transmission
Interface
Gigabit LAN
Computer System
Win7, Win8, Win10(Professional)
File Forms
TIFF, JPG, EPS, PDF, etc.
Operate Environment
Temp.:15℃-30℃, Humidity: 35℃-65℃
RIP Software
NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

3250*960*1170mm

Power Supply
210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W
Computer Configuration
Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Inte I5/I7, G-Ethernet
Standard Configuration
Ink Level Alarm System





1.9m CMYK Fedar Sublimation Printer Digital Fabric Printing Machine 2

CMYK Fedar Sublimation Printer Feature

Industrial grade aluminum alloy platform guarantees long life and efficient printing.

Intelligent ink deficiency alert reduces the tediousness of frequently cheking ink margin and promptly reminds

to add ink to ensure the continuity of printing work.

Fully automatic feeding and take-up media system.Dual-motor drive offers strong power to handle non-stop

work and high-precision media movement.

*  Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well

and keep the ink flow fluently.

Unique two-dimension intelligent foggy and wave-foggy function,and VSDT variable droplet technology,

improve printing quality obviously.


Fedar Large Format Sublimation Printer Detail

1.9m CMYK Fedar Sublimation Printer Digital Fabric Printing Machine 3

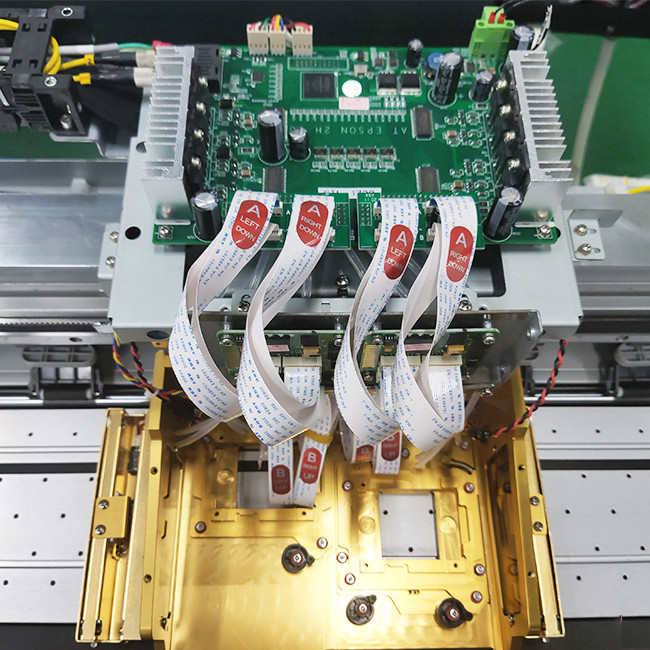

Specially Designed Car:

The height of double printheads can be arbitrarily adjusted.Anti-scratch function on both sides of the car reduces

the printhead damage caused by paper warping.

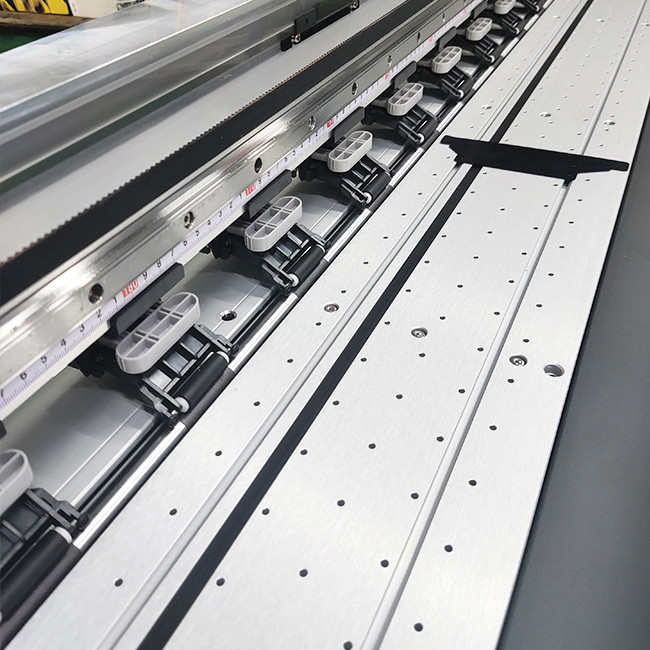

THK Mute Guide Rail:

More stable running,longer working life,lower noise,Higher resolution and fewer errors in length.

Disc Ink Filter:

Remove the impurities in ink effectively,ensure smooth ink supply and protect the nozzle.

Large Capacity Ink Reservoirs:

Four units of 3L super large capacity ink reservoirs provide ink independently and continuously,which guarantees

the long-term continuity of ink output.



CERTIFICATE

1.9m CMYK Fedar Sublimation Printer Digital Fabric Printing Machine 4

 1.9m CMYK Fedar Sublimation Printer Digital Fabric Printing Machine 5
1.9m CMYK Fedar Sublimation Printer Digital Fabric Printing Machine Application
With help of heat transfer machine,printed images can be transferred to many different non-elastic material,
such as polyester and flag banner. No limit on the patterns makes it a good choice in decoration, garment and
advertising field.



1.9m CMYK Fedar Sublimation Printer Digital Fabric Printing Machine 6
